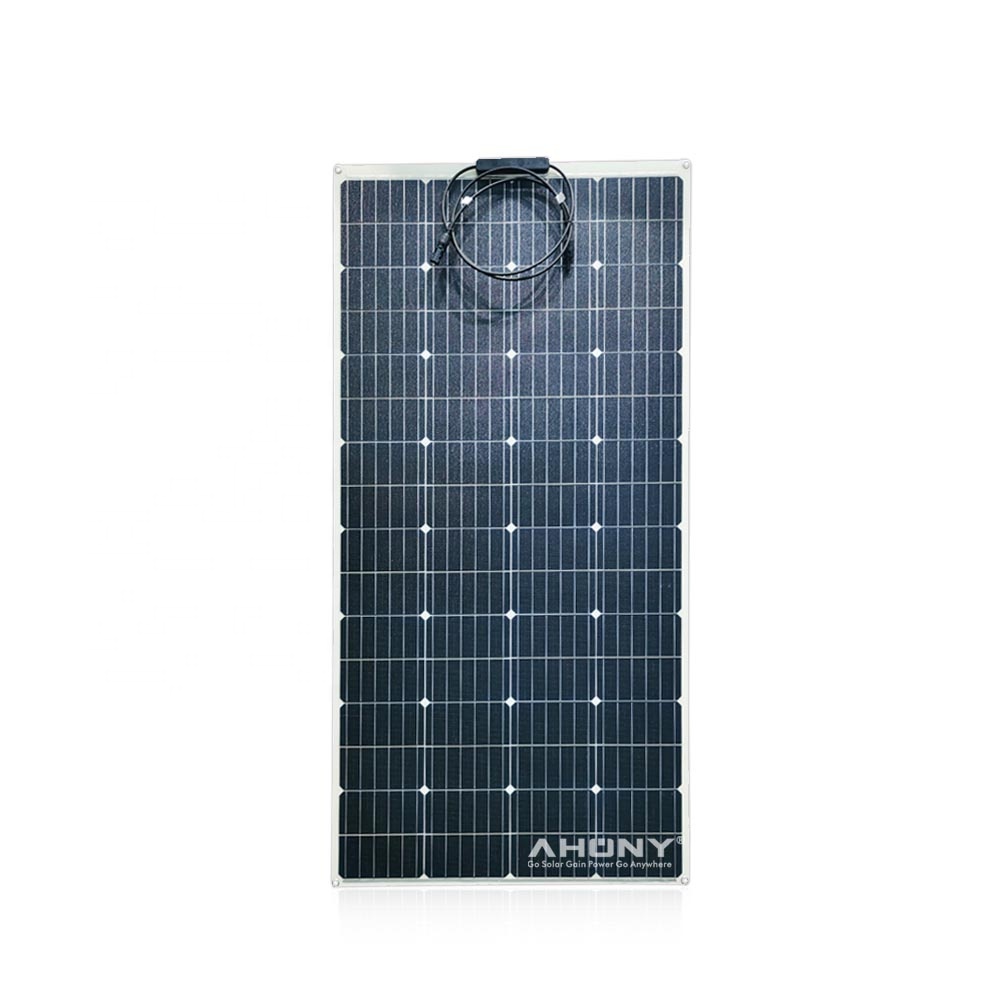

eGo S195M
AHONY
700*1400*3mm
rv shelter roof
23.00%
| Product Name | Semi-flexible solar panel |
| Maximum Power[Wp] | 195 |
| Solar Cell | A grade mono perc solar cell |
| Cell size[mm] | 166*166 |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 23% |
| Size[mm] | 700*1400*3 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 10.51 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 11.14 |
| Net.Weight[kg] | 3.8 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.04 |
| Maximum System Voltage[V] | 200V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |

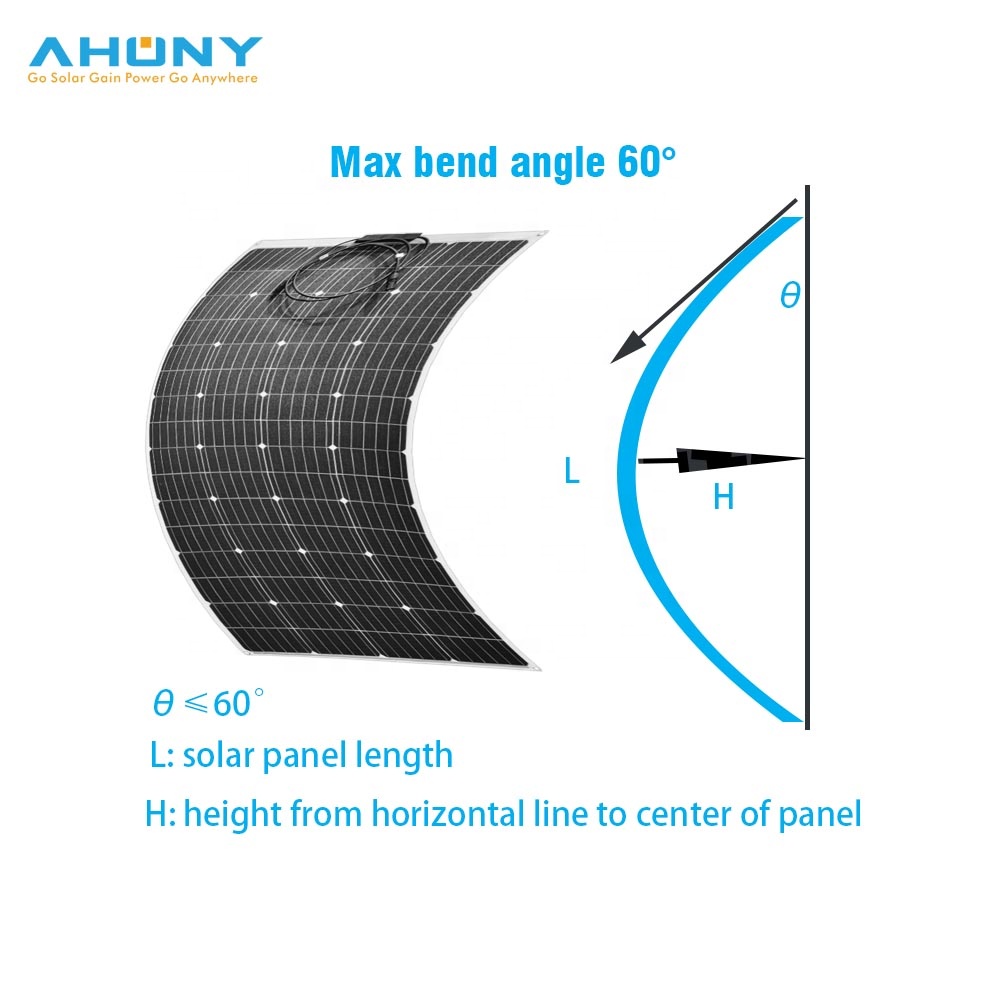

| Max Bend angle | 60degree |

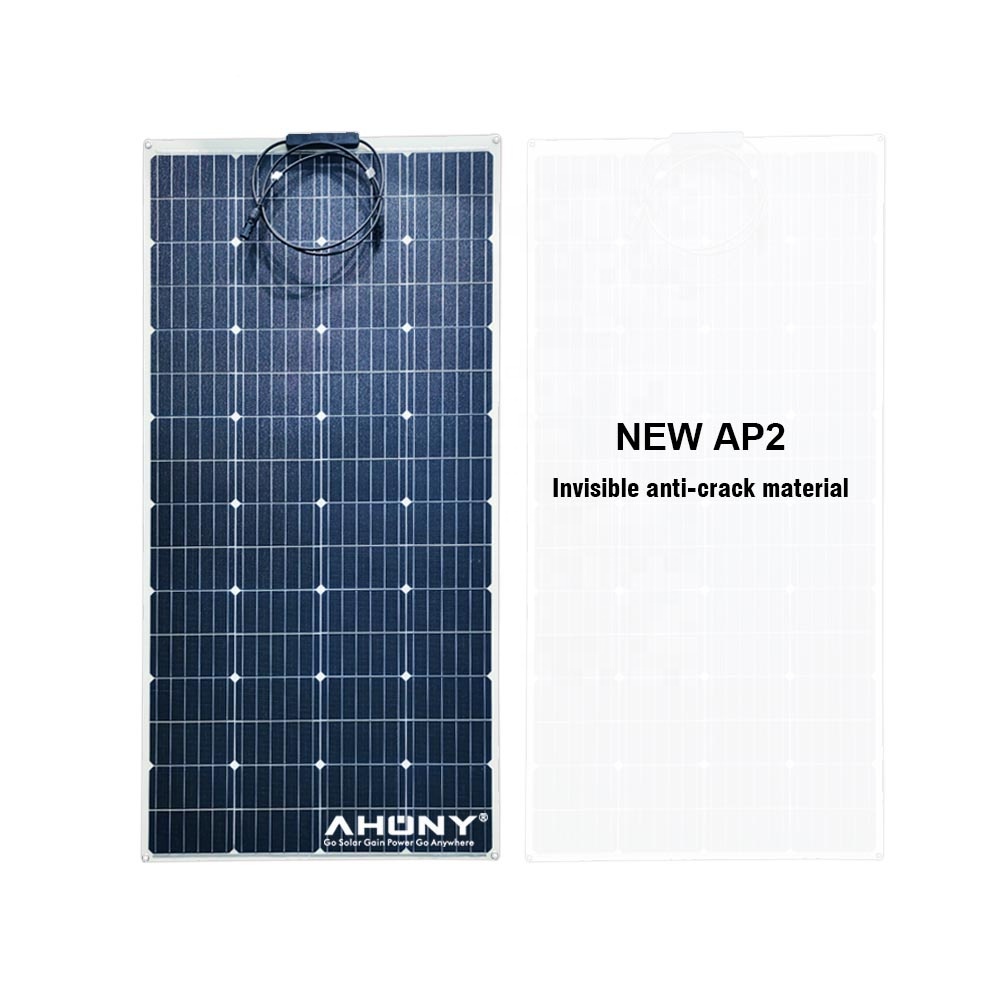

| Surface/Backsheet | ETFE+AP2 |
| Warranty | 1 year |
| Product Name | Semi-flexible solar panel |
| Maximum Power[Wp] | 195 |
| Solar Cell | A grade mono perc solar cell |
| Cell size[mm] | 166*166 |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 23% |
| Size[mm] | 700*1400*3 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 10.51 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 11.14 |
| Net.Weight[kg] | 3.8 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.04 |
| Maximum System Voltage[V] | 200V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Max Bend angle | 60degree |
| Surface/Backsheet | ETFE+AP2 |
| Warranty | 1 year |
