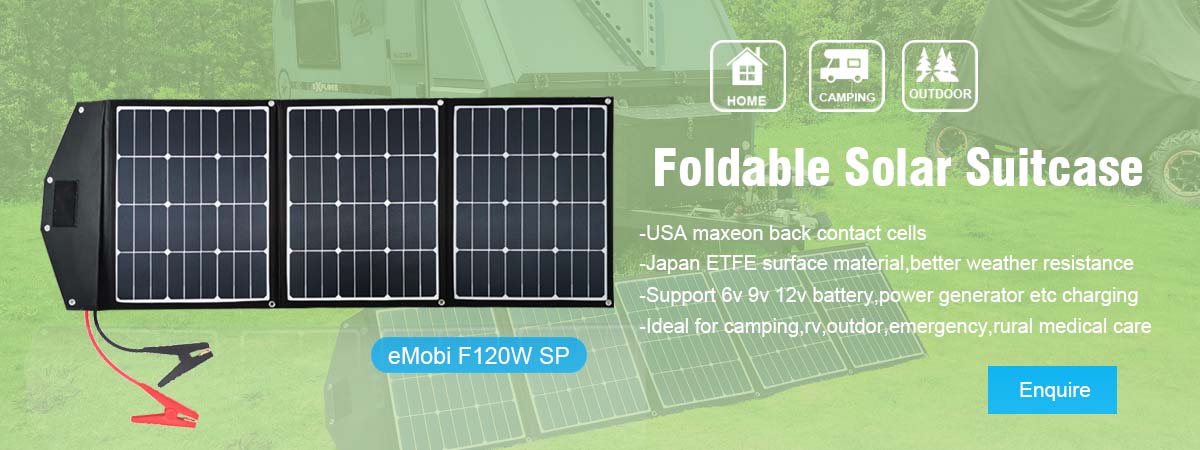

eMobi F120W
AHONY
Hiking Camping Power Station,phone charger,laptop charger
24.4%
Availability: | |
---|---|
AHONY eMobi F3x40w is one of our best seller;
it has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery.
Back contact solar cells,efficienty is over 22.4%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
ETFE surface,more weather resistance;
With Jbox to fix the cable.
Folding solar panel eMobi F3x40w uses fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.
SunPower cell makes is possible as the cell is back contact,with copper in it,bendable,it has least power loss
after long time use.
The cell efficiency is 22.4% makes size smaller than panel with conventional solar cells.
Folding solar kits
Portable solar generator
Lead acid battery
Marine use battery
Electrical motocycle
Gel battery
Car battery
etc all 12v solar batteries and powerload.
Application scene
Self-driving travel
cycling
mountain climbing
yacht,boat,marine
Desert
snow mountain
disaster area
camping picnic
Portable refrigerator
For all outdoor to meet the 12v or customized power requirements.
AHONY eMobi F3x40w is one of our best seller;
it has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery.
Back contact solar cells,efficienty is over 22.4%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
ETFE surface,more weather resistance;
With Jbox to fix the cable.
Folding solar panel eMobi F3x40w uses fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.
SunPower cell makes is possible as the cell is back contact,with copper in it,bendable,it has least power loss
after long time use.
The cell efficiency is 22.4% makes size smaller than panel with conventional solar cells.
Folding solar kits
Portable solar generator
Lead acid battery
Marine use battery
Electrical motocycle
Gel battery
Car battery
etc all 12v solar batteries and powerload.
Application scene
Self-driving travel
cycling
mountain climbing
yacht,boat,marine
Desert
snow mountain
disaster area
camping picnic
Portable refrigerator
For all outdoor to meet the 12v or customized power requirements.
Model No. | eMobi F3x40w |
Product Name | 12V folding solar kits |
Maximum Power[Wp] | 120 |
Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
Cell Efficiency | 22.40% |
Folded Size[mm] | 560*440*20 |
Open Size[mm] | 1525*560*5 |
Max Power Voltage Vmp[V] | 18.56 |
Max Power Current Imp[A] | 6.47 |
Open Circuit Voltage Voc[V] | 21.90 |
Short Circuit Current Isc[A] | 6.98 |
Net.Weight[kg] | 3.4 |
NOCT[℃] | 45±2 |
Operating Temperature[℃] | -40/+85 |
Temperature Coefficient Pmax[%/℃] | -0.3 |
Temperature Coefficient Voc[[%/℃] | -1.74mV |
Temperature Coefficient Isc[[%/℃] | 0.05 |
Maximum System Voltage[V] | 45 V |
Maximum Reverse Current[V] | 12A |
Certification | CE ROHS |
Surface/Backsheet | ETFE/TPT |
Charge controller | PWM 10A 12/24V,1 USB |
Cables | 5m 14AWG cable |
Connector | battery clips |
Supporting Leg | Yes |
Eyelets | Yes |
Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
Package | 1pcs/carton box |
Model No. | eMobi F3x40w |
Product Name | 12V folding solar kits |
Maximum Power[Wp] | 120 |
Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
Cell Efficiency | 22.40% |
Folded Size[mm] | 560*440*20 |
Open Size[mm] | 1525*560*5 |
Max Power Voltage Vmp[V] | 18.56 |
Max Power Current Imp[A] | 6.47 |
Open Circuit Voltage Voc[V] | 21.90 |
Short Circuit Current Isc[A] | 6.98 |
Net.Weight[kg] | 3.4 |
NOCT[℃] | 45±2 |
Operating Temperature[℃] | -40/+85 |
Temperature Coefficient Pmax[%/℃] | -0.3 |
Temperature Coefficient Voc[[%/℃] | -1.74mV |
Temperature Coefficient Isc[[%/℃] | 0.05 |
Maximum System Voltage[V] | 45 V |
Maximum Reverse Current[V] | 12A |
Certification | CE ROHS |
Surface/Backsheet | ETFE/TPT |
Charge controller | PWM 10A 12/24V,1 USB |
Cables | 5m 14AWG cable |
Connector | battery clips |
Supporting Leg | Yes |
Eyelets | Yes |
Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
Package | 1pcs/carton box |
