BSFH-100W
AHONY or OEM
540*980*2mm
marine boat,sailboat,bimini,solar panel installation shade areas
24.2%
Factory direct fast delivery in stock solar panel
1.leading brand ETFE;
2.High efficiency solar cell;
3.remote warranty,always have after sale service on alibaba platform.
4.100% owned factory,automatically producing.
| Model No. | BSFH-100W |
| Product Name | Semi Flexible Solar Panel |
| Maximum Power[Wp] | 100 |
| Solar Cell | A grade solar cell 166 |
| Cell Array[Pcs] | 3*11 |
| Cell Efficiency | 24.20% |
| Size[mm] | 540*980*2 |
| Max Power Voltage Vmp[V] | 19.14 |
| Max Power Current Imp[A] | 5.23 |
| Open Circuit Voltage Voc[V] | 22.40 |
| Short Circuit Current Isc[A] | 5.43 |
| Net.Weight[kg] | 1.70 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.252 |
| Temperature Coefficient Voc[[%/℃] | -0.227 |
| Temperature Coefficient Isc[[%/℃] | 0.031 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[A] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE+AP2+PET |
| Maximum bend radius(θ) | 60° |
| Cables and Connectors | Jbox IP68 with 0.9m cable bare at end |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 2pcs/carton |
| Packing size | 112*60*12cm |

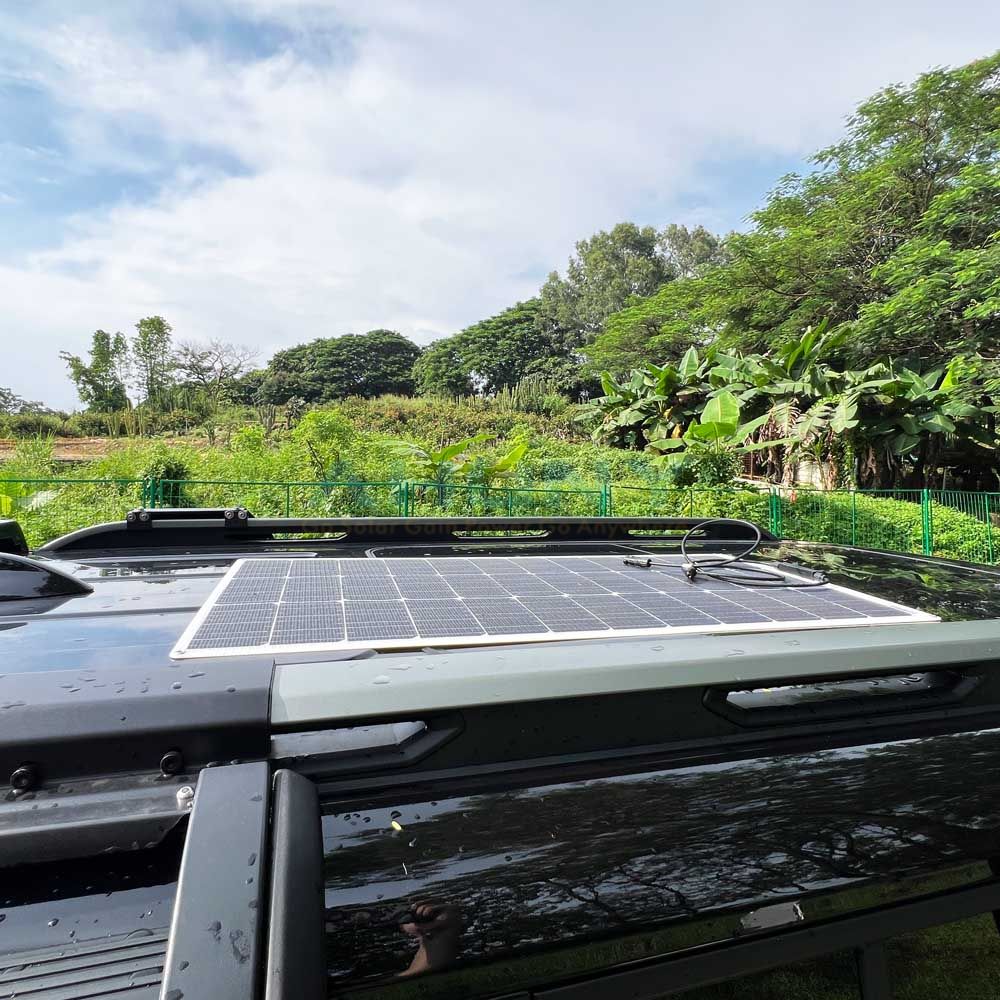

Application
AHONY Semi flexlble solar panel makes by crystalline silicon solar cells including monocrystalline HJT cell,back contact cell,with different backsheet surface and backsheet material,re-orgainize from ETFE,PET,fibreglass backsheet.
This panel belongs to eGo SM Series,eGo SM use PERC or HJT cells,cell efficiency range from 23.5% to 25.8%,economical solar panels power range for same application.It usually use on boat's bimini roof.
You can also refer to other series:
eGo s uses back contact cell,efficiency is high at 24.4%,better weak light performance and little power loss when walk on it,thespeclal inner copper foundatlon makes cell solid and duarable thanother panels.max bend angle 60degree,suitable for marine,yacht surface,bimini,fish boat,rv roof,golf car,electric bus etc.
eGo P use fibreglass,max bend 10degree,for application that do not bend like foldable solar panel,shutters,backpack usb solar charger etc.lt's half finished solar modules to be integrated to consumer electronic products like portable charger, bluetooth audio,CCTV camera,garden light,floating light,marine products etc.Also for industrial use like mining,oil.
