eGo S145W
AHONY
BP107020011200119
580*1050*3mm

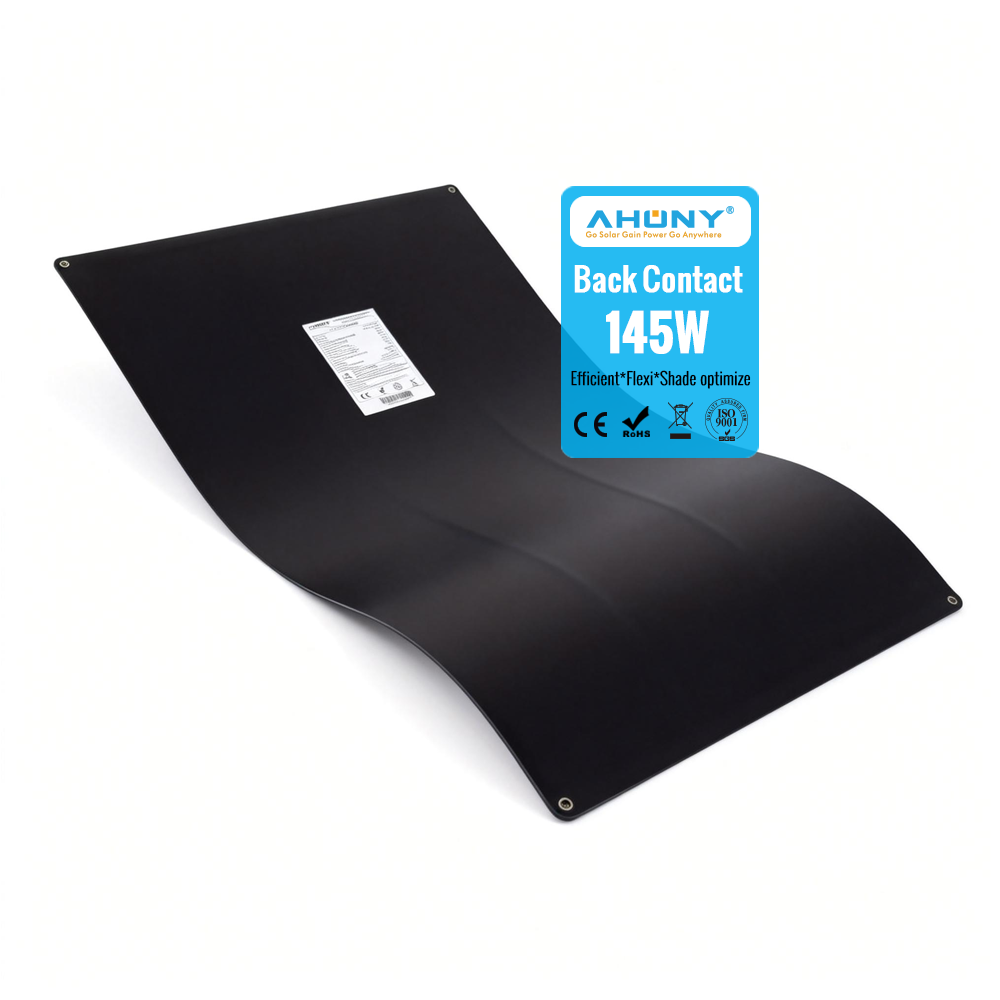

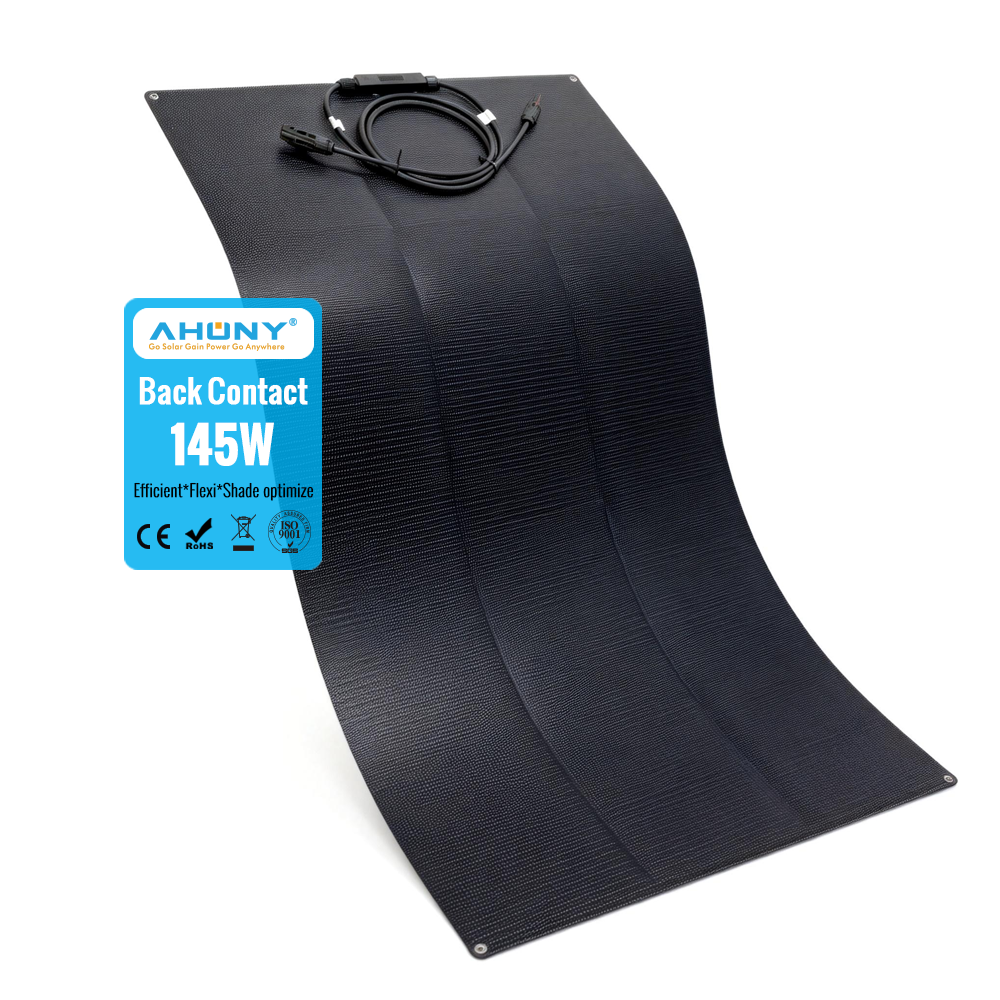

Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S145W |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 145 |
| Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% |
| Size[mm] | 580*1050*3 |
| Max Power Voltage Vmp[V] | 20.62 |
| Max Power Current Imp[A] | 7.04 |
| Open Circuit Voltage Voc[V] | 24.13 |
| Short Circuit Current Isc[A] | 7.46 |
| Net.Weight[kg] | 2.10 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Fuse Rating[V] | 25A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test |
| Maximum bend radius(θ) | 60° |
| Jbox | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 6,stainless steel 316 |
2.Who We Are
AHONY is a leading manufacturer specializing in next-generation HPBC (Hybrid Passivated Back Contact) Bifacial Solar Technology. We bridge the gap between rigid industrial efficiency and lightweight flexibility, providing customized energy solutions for the new age of mobility and smart infrastructure.
What We Offer:
We present the 145W HPBC Bifacial Narrow Bendable PV Module—a breakthrough in the "N Series" flexible solar line. Capable of scaling from a compact 12V 145W setup up to a powerful 550W system, this panel redefines where solar can go. It is specifically engineered for high-value-added distributors and solution integrators in the RV, maritime, EPC, Smart City, and IoT sectors.
Bifacial HPBC + Perovskite Technology
Generates power from both sides, increasing total energy yield by up to 25–30% in reflective environments.
2.Features and Key Advantages
1)Ultra-Lightweight & Bendable
Soft, foldable design ideal for curved roofs, yacht decks, and temporary installations. Easy to carry and install without mounting racks.
2)High Transparency ETFE Coating
Superior anti-scratch, anti-yellowing, and weather resistance. Extends panel lifespan even in marine or desert conditions.
3)All-Black Aesthetic Design
Seamless integration with modern vehicles, buildings, and smart city furniture. No visible busbars – sleek and professional appearance.
4)Dual Voltage Output: 12V & 48V Compatible
Flexible system matching for both low-voltage off-grid and high-voltage storage solutions.
5)Engineered for Non-Bearing Roofs
No drilling or heavy frames required. Perfect for warehouses, carports, tents, and temporary shelters.
6)Wide Application Compatibility
Tailored for wholesalers, RV converters, marine system integrators, solar storage companies, and IoT power solution providers.
3.Benifits of choosing this flexible solar panel
High turnover product with lower shipping cubic volume (flat packaging) and fewer breakage claims.
No roof racking required on rv,caravan,trailer conversion; low profile reduces wind noise and improves fuel economy;Bend to fit the aerodynamic curve of the modern camper.
Saltwater corrosion resistant on boat,marine industry,yacht,catamaran,Non-slip surfaces;bifacial gain from deck reflection.
Scalable solution for fence balcony or tensile structure integration.
Lightweight retrofitting for industrial warehouses,experience design,R&D etc engineering work for engineering companies.
Powering traffic sensors and 5G nodes on curved poles,offer innovated and advanced products for Smart City & IoT.
Valuable design,customize solar panels,size,voltage to help you better optimize your portable power station ecosystem,or battery storage solutions,like camera system,marine solar system,MPPT charging system,remote power station,mobile paying etc.
All-black, ultra-thin, and bendable — mounts flush on curved or weight-sensitive surfaces without structural modification.
Factory Direct Pricing – No middlemen, better margins for you;
Consistent Quality – Strictly tested HPBC cells & ETFE material;
Fast Lead Time – Ready stock for samples; efficient production for bulk orders;
Technical Support – Installation guides, datasheets, and after-sales service;
Global Shipping – Secure packaging for air and sea freight.
We are currently expanding our B2B partnerships with distributors, RV manufacturers, solar solution integrators, and engineering firms. OEM/ODM customization is also available.
