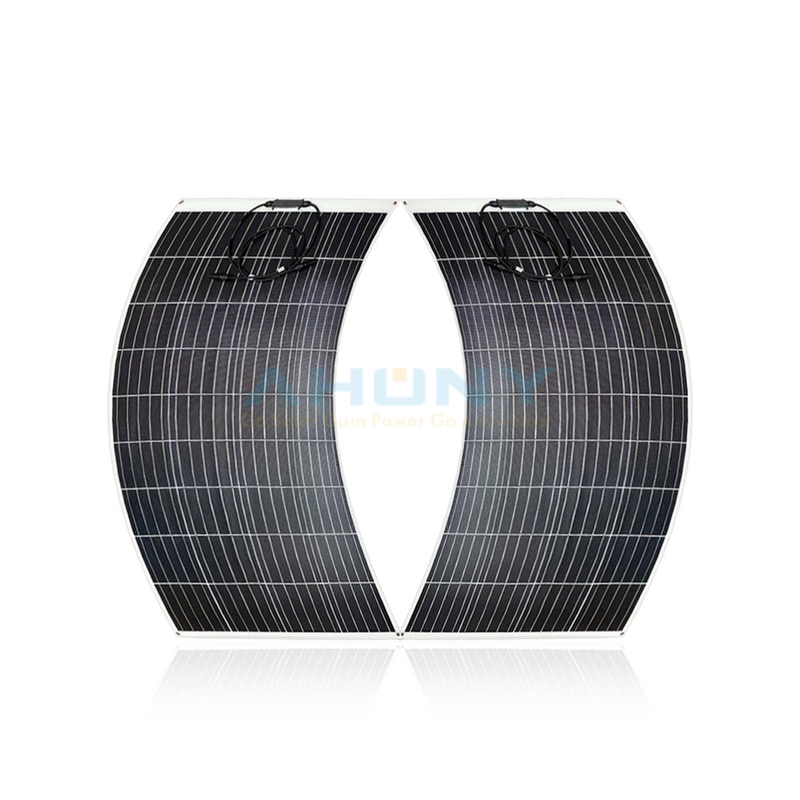

eGo S150w Pro
AHONY or OEM
Ultra Lightweight, Ultra Thin, Up to 200Degree Arc, for RV, Boats, Roofs, Uneven Surfaces
[Extremely Flexible]This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
[Ultra Lightweight]Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
[Super Thin Lamination]Hardly noticeable, the AHONY 150W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
[Highly Durable]Rigorously tested, the 100W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa
[Potential Uses]The AHONY 150 Watt Flexible Monocrystalline Panel can be primarily used on off-grid applications that include rooftop, RV, boats and any curvy surfaces.
| Model No. | eGo S150M |
| Product Name | semi flexible solar panel |
| Maximum Power[Wp] | 150 |
| Solar Cell | Monocrystalline solar cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 22.50% |
| Size[mm] | 660*1220*3 |
| Max Power Voltage Vmp[V] | 20.26 |
| Max Power Current Imp[A] | 7.40 |
| Open Circuit Voltage Voc[V] | 24.01 |
| Short Circuit Current Isc[A] | 8.00 |
| Net.Weight[kg] | 3.7 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 |
| Temperature Coefficient Voc[[%/℃] | -0.34 |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE/white plastic |
| Maximum bend radius(θ) | 20° |
