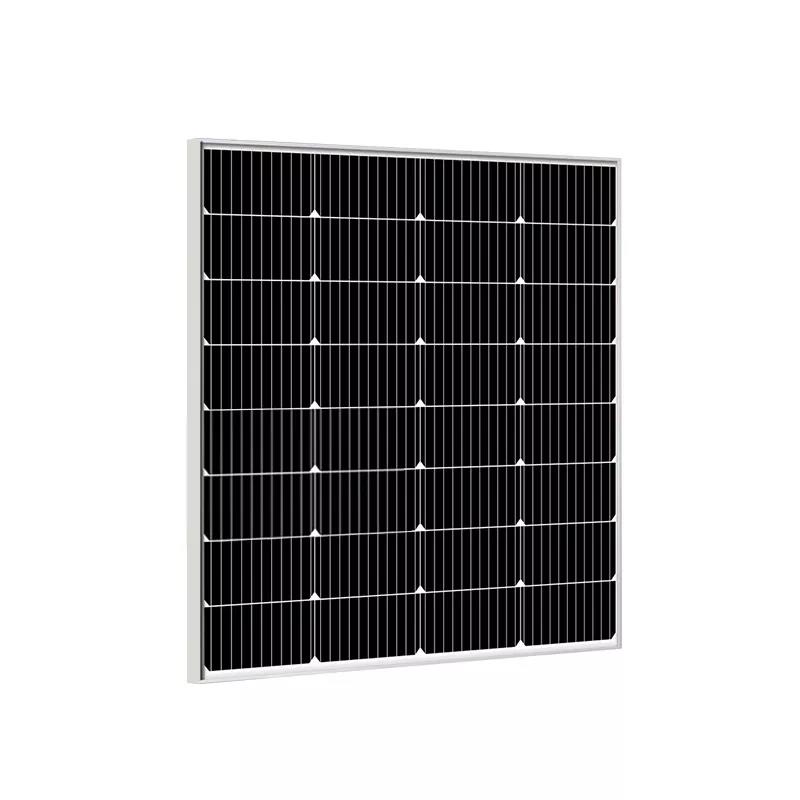

eRigid M150W
Ahony or OEM
8541430000
770*980*35mm
street light roof smart solar system iot battery storage
24%
MAIN FEATURES
-High conversion cell efficiency resulting in superior power output performance
-Industry leading module efficlency
-Outstanding power output even in low light or high temperature conditions
-Tested up to 5400Pa for maximum load resistance
-Different deslgns,shapes to meet varlous appllcatlon
-Automatically soldering,smooth and better workmanship
-Verifled resistance against PlD effects-PiD free
| Model No. | eRigid M150W | eRigid M180W | eRigid M220W | eRigid M270W | eRigid M360W | eRigid M450W |
| Product Name | Glass solar panel | |||||
| Maximum Power[WP] | 150 | 180 | 220 | 270 | 360 | 450 |
| Solar Cell | 182 PERC Solar Cell | |||||
| Cell Array[pcs] | 4*10 | 4*18 | 4*15 | 4*18 | 6*24 | 6*20 |
| Solar Cell Size[mm] | 182*91 | 182*60.67 | 182*91 | 182*91 | 182*60.67 | 182*91 |
| Cell Efficiency | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% |
| Size[mm] | 770*980*35 | 770*1180*35 | 770*1445*35 | 770*1740*35 | 1135*1570*40 | 1135*1930*40 |
| Max Power Voltage Vmp[V] | 23.20 | 20.88 | 34.80 | 41.76 | 41.76 | 34.80 |
| Max Power Current Imp[A] | 6.47 | 8.63 | 6.33 | 6.47 | 8.63 | 12.94 |
| Open Circuit Voltage Voc[V] | 26.91 | 24.22 | 40.37 | 48.44 | 48.44 | 40.37 |
| Short Circuit Current Isc[A] | 6.85 | 9.15 | 6.71 | 6.85 | 9.15 | 13.72 |
| Net.Weight[kg] | 8.20 | 10.20 | 11.30 | 12.30 | 16.00 | 18.60 |
| Power tolerance[%] | ±3% | |||||
| Operating Temperature[℃] | -40/+85 | |||||
| Temperature Coefficient Pmax[%/K] | -0.41 | |||||
| Temperature Coefficient Voc[[%/K] | -0.32 | |||||
| Temperature Coefficient Isc[[%/K] | 0.04 | |||||
| Maximum System Voltage[V] | 1000 V | |||||
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | |||||
| Certification | CE ROHS | |||||
| Cables and Connectors | IP67 Jbox,0.9m cable+MC4 | JB022 Jbox IP67+0.3m cable+MC4 | ||||
| Bypass diodes | 2 | 2 | 2 | 3 | 3 | 3 |
| Warranty[years] | 5 | 5 | 5 | 5 | 5 | 5 |
MAIN FEATURES
-High conversion cell efficiency resulting in superior power output performance
-Industry leading module efficlency
-Outstanding power output even in low light or high temperature conditions
-Tested up to 5400Pa for maximum load resistance
-Different deslgns,shapes to meet varlous appllcatlon
-Automatically soldering,smooth and better workmanship
-Verifled resistance against PlD effects-PiD free
| Model No. | eRigid M150W | eRigid M180W | eRigid M220W | eRigid M270W | eRigid M360W | eRigid M450W |
| Product Name | Glass solar panel | |||||
| Maximum Power[WP] | 150 | 180 | 220 | 270 | 360 | 450 |
| Solar Cell | 182 PERC Solar Cell | |||||
| Cell Array[pcs] | 4*10 | 4*18 | 4*15 | 4*18 | 6*24 | 6*20 |
| Solar Cell Size[mm] | 182*91 | 182*60.67 | 182*91 | 182*91 | 182*60.67 | 182*91 |
| Cell Efficiency | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% |
| Size[mm] | 770*980*35 | 770*1180*35 | 770*1445*35 | 770*1740*35 | 1135*1570*40 | 1135*1930*40 |
| Max Power Voltage Vmp[V] | 23.20 | 20.88 | 34.80 | 41.76 | 41.76 | 34.80 |
| Max Power Current Imp[A] | 6.47 | 8.63 | 6.33 | 6.47 | 8.63 | 12.94 |
| Open Circuit Voltage Voc[V] | 26.91 | 24.22 | 40.37 | 48.44 | 48.44 | 40.37 |
| Short Circuit Current Isc[A] | 6.85 | 9.15 | 6.71 | 6.85 | 9.15 | 13.72 |
| Net.Weight[kg] | 8.20 | 10.20 | 11.30 | 12.30 | 16.00 | 18.60 |
| Power tolerance[%] | ±3% | |||||
| Operating Temperature[℃] | -40/+85 | |||||
| Temperature Coefficient Pmax[%/K] | -0.41 | |||||
| Temperature Coefficient Voc[[%/K] | -0.32 | |||||
| Temperature Coefficient Isc[[%/K] | 0.04 | |||||
| Maximum System Voltage[V] | 1000 V | |||||
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | |||||
| Certification | CE ROHS | |||||
| Cables and Connectors | IP67 Jbox,0.9m cable+MC4 | JB022 Jbox IP67+0.3m cable+MC4 | ||||
| Bypass diodes | 2 | 2 | 2 | 3 | 3 | 3 |
| Warranty[years] | 5 | 5 | 5 | 5 | 5 | 5 |
