eGo S180W
AHONY
BP107020011300120
580*1335*3mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S180W |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 180 |
| Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% |
| Size[mm] | 580*1335*3 |
| Max Power Voltage Vmp[V] | 26.25 |
| Max Power Current Imp[A] | 6.86 |
| Open Circuit Voltage Voc[V] | 30.71 |
| Short Circuit Current Isc[A] | 7.27 |
| Net.Weight[kg] | 2.60 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Fuse Rating[V] | 25A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test |
| Maximum bend radius(θ) | 60° |
| Jbox | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 6,stainless steel 316 |
2.About 180W flexible solar panel

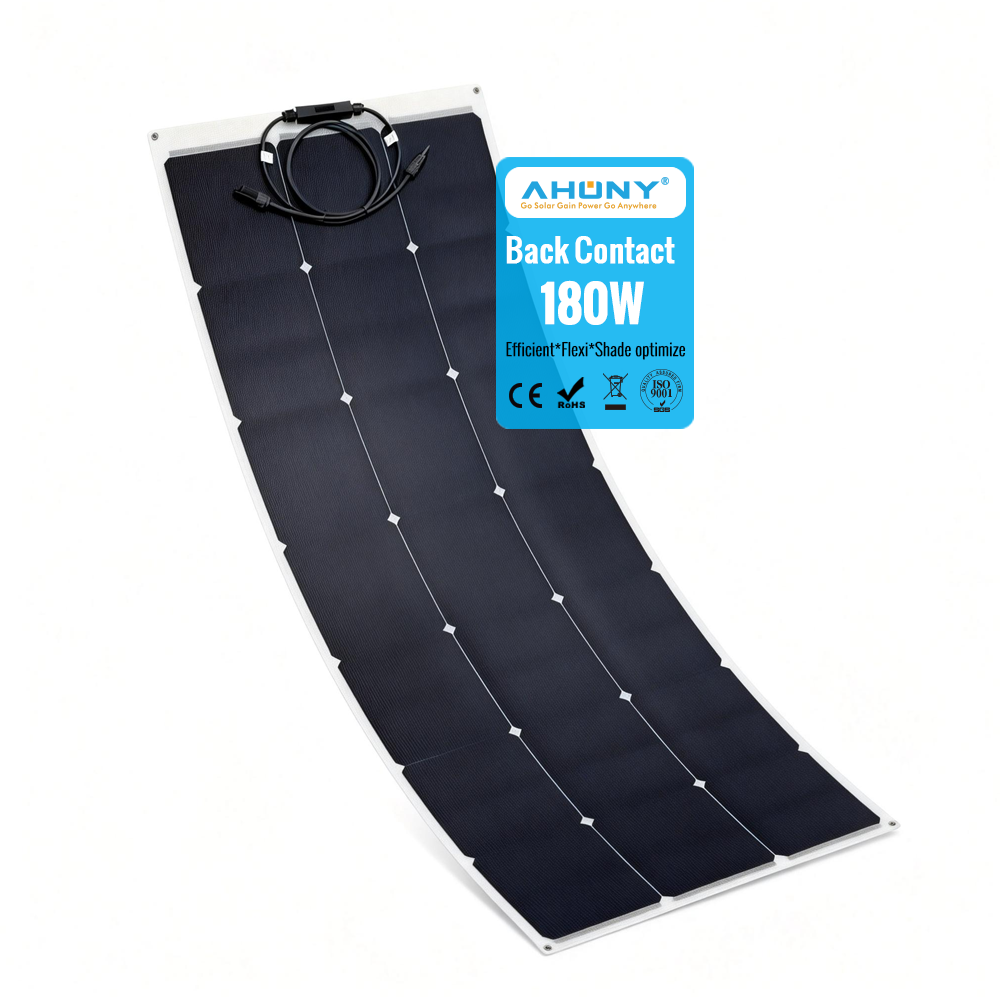

AHONY 180W HPBC Flexible Solar Panel – Ultra-Thin, Ultra-Efficient, Built for the Mobile World
AHONY is a professional manufacturer specializing in high-performance flexible solar modules. Our 180W HPBC (Hybrid Passivated Back Contact) Soft Thin-Film Solar Panel is engineered specifically for RV living, marine applications, non-load-bearing roofs, and architectural integration. Designed for wholesalers, retailers, converters, and solar solution providers, this panel delivers a perfect balance of power, flexibility, and durability.
2.Features and Key Advantages

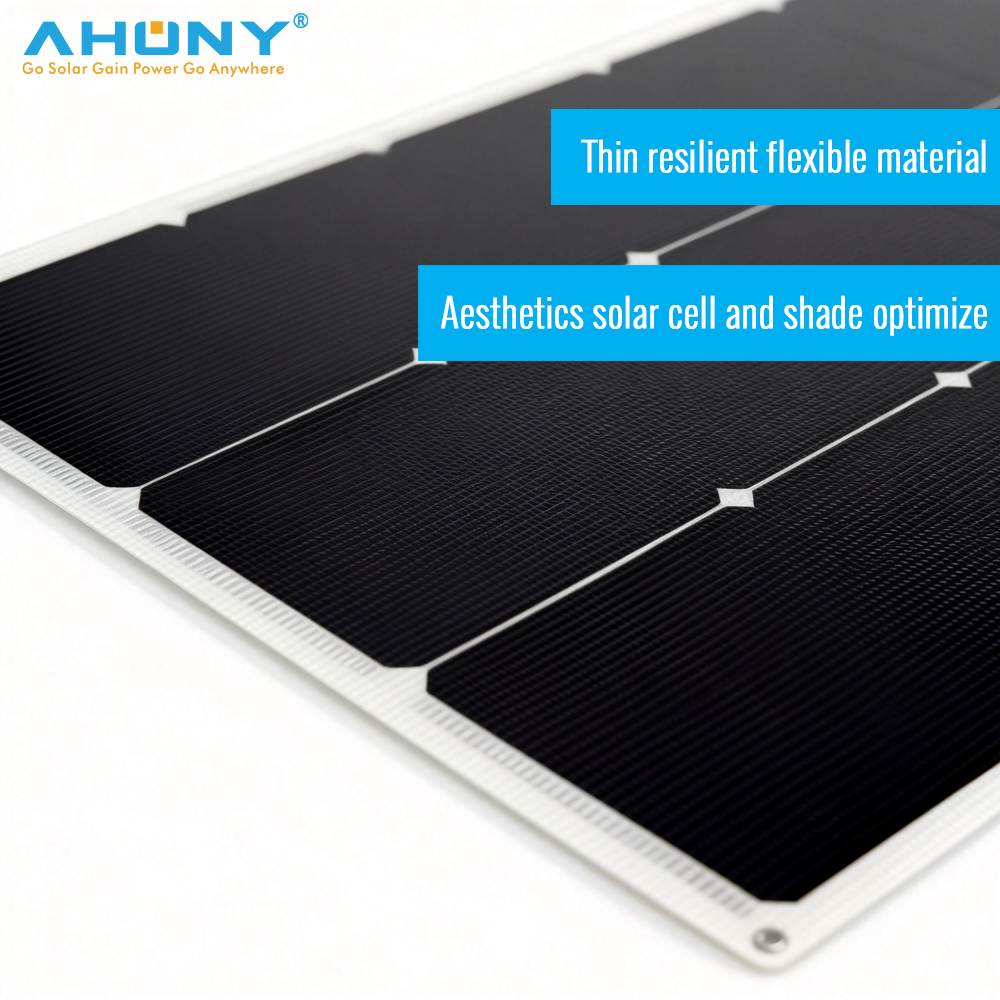

-HPBC Cell Technology – Higher efficiency and better low-light performance than conventional flexible panels.
-Ultra-Thin & Lightweight – Ideal for non-load-bearing roofs, curved surfaces, and mobile applications.
-Marine & RV Grade Durability – Salt-mist resistant, waterproof, and UV-stabilized for harsh outdoor environments.
-Easy Installation – Pre-cabled junction box, adhesive backing, and eyelets for mechanical fixing.
-Customizable Solutions – OEM/ODM available for volume buyers and project-based requirements.
-Reliable Power Output – Real-world 180W rating, not overrated like many competitors.
-Bypass Diodes Included – Minimizes power loss from shading, common in mobile setups.
3.Benifits of choosing this flexible solar panel
High turnover product with lower shipping cubic volume (flat packaging) and fewer breakage claims.
No roof racking required on rv,caravan,trailer conversion; low profile reduces wind noise and improves fuel economy;Bend to fit the aerodynamic curve of the modern camper.
Saltwater corrosion resistant on boat,marine industry,yacht,catamaran,Non-slip surfaces;bifacial gain from deck reflection.
Scalable solution for fence balcony or tensile structure integration.
Lightweight retrofitting for industrial warehouses,experience design,R&D etc engineering work for engineering companies.
Powering traffic sensors and 5G nodes on curved poles,offer innovated and advanced products for Smart City & IoT.
Valuable design,customize solar panels,size,voltage to help you better optimize your portable power station ecosystem,or battery storage solutions,like camera system,marine solar system,MPPT charging system,remote power station,mobile paying etc.
All-black, ultra-thin, and bendable — mounts flush on curved or weight-sensitive surfaces without structural modification.
Our 180w semi flexible solar panel and this series are mainly serve for:
✔ Solar wholesalers & distributors
✔ RV manufacturers &car conversionshops
✔ Marine solar integrators
✔ Construction firms working with lightweight roofs
✔ Renewable energy solution companies
More than 10years experience solar factory,our product got ISO9001,ISO14001,CE ROHS,IEC61215 IEC61730,UKCA,VOC etc certification,sell overseas.
Factory Direct Pricing – No middlemen, better margins for you;
Consistent Quality – Strictly tested HPBC cells & ETFE material;
Fast Lead Time – Ready stock for samples; efficient production for bulk orders;
Technical Support – Installation guides, datasheets, and after-sales service;
Global Shipping – Secure packaging for air and sea freight.
We are currently expanding our B2B partnerships with distributors, RV manufacturers, solar solution integrators, and engineering firms. OEM/ODM customization is also available.
