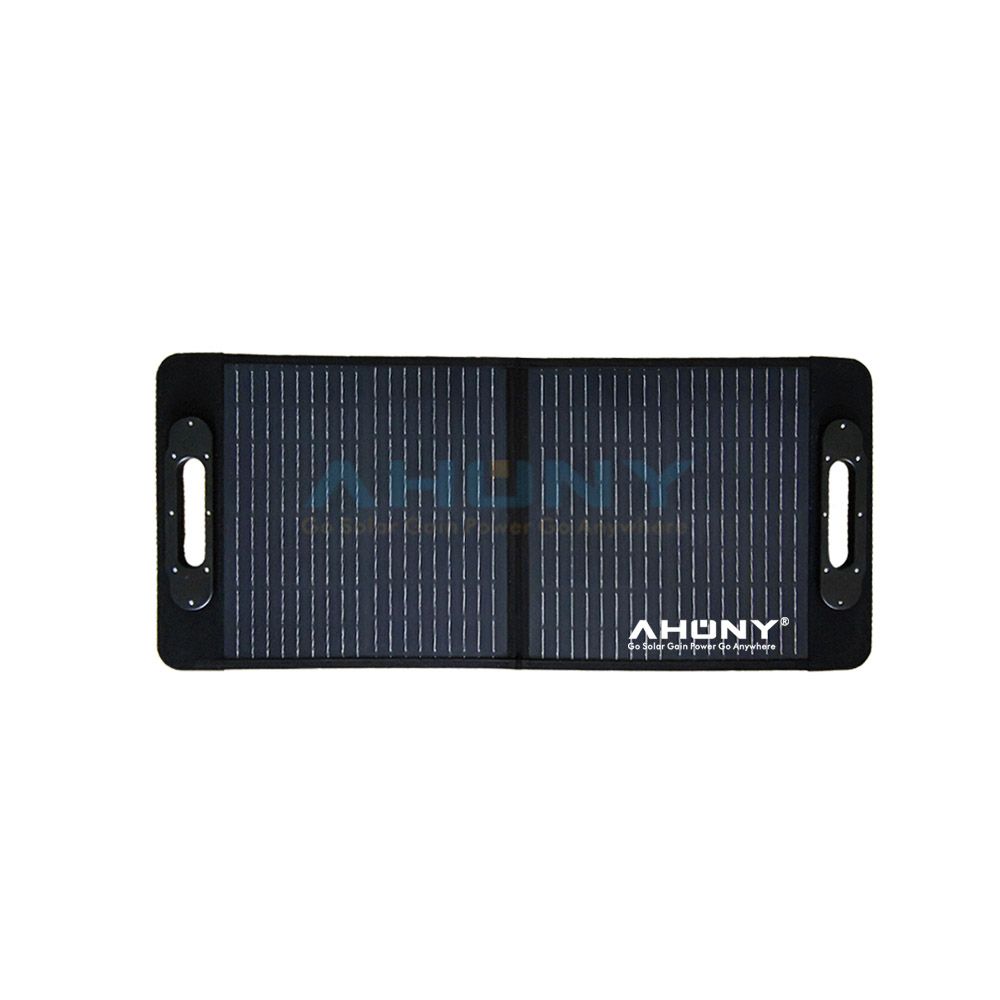

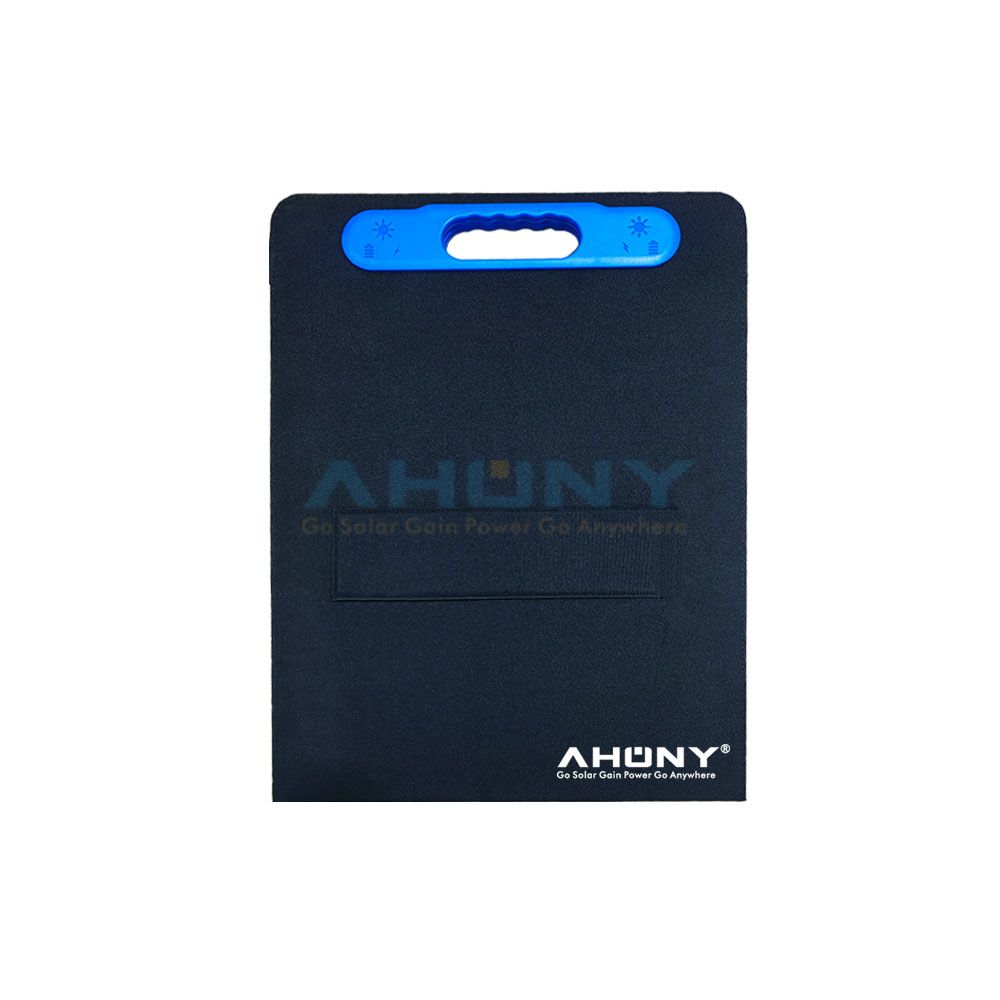

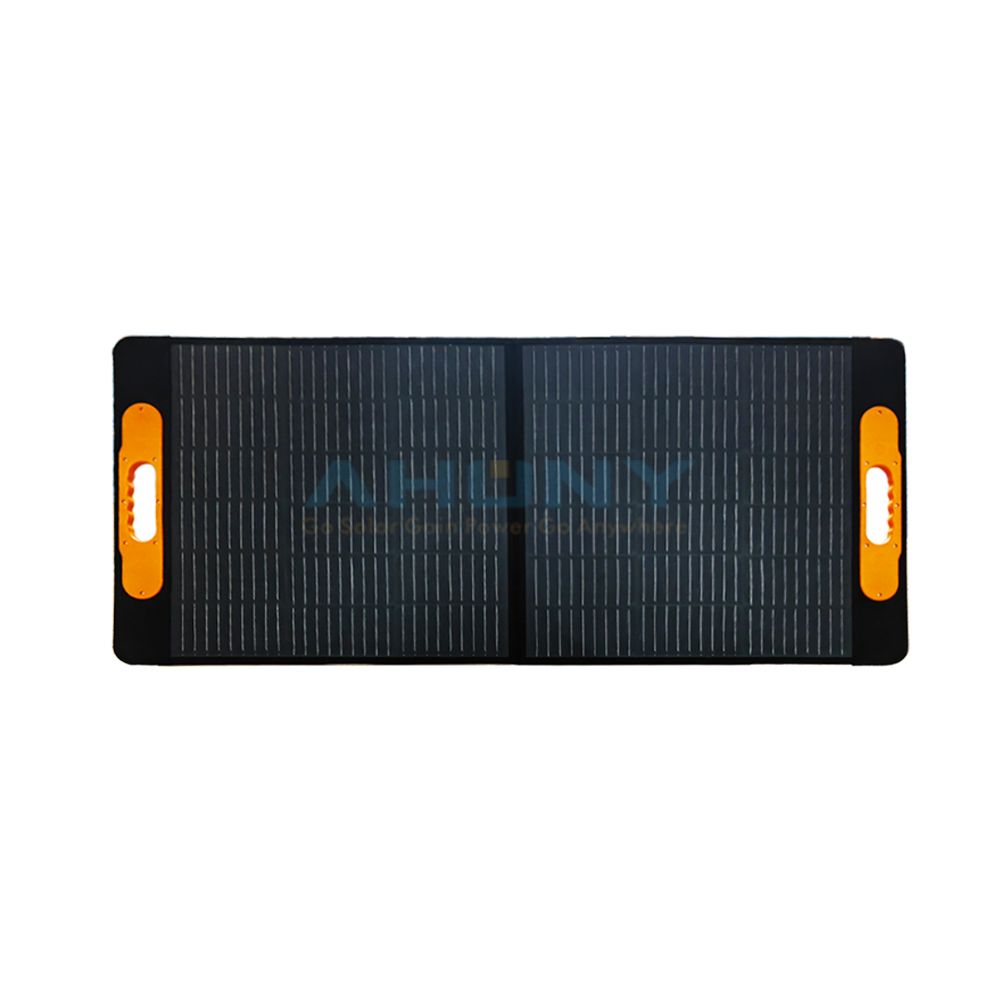

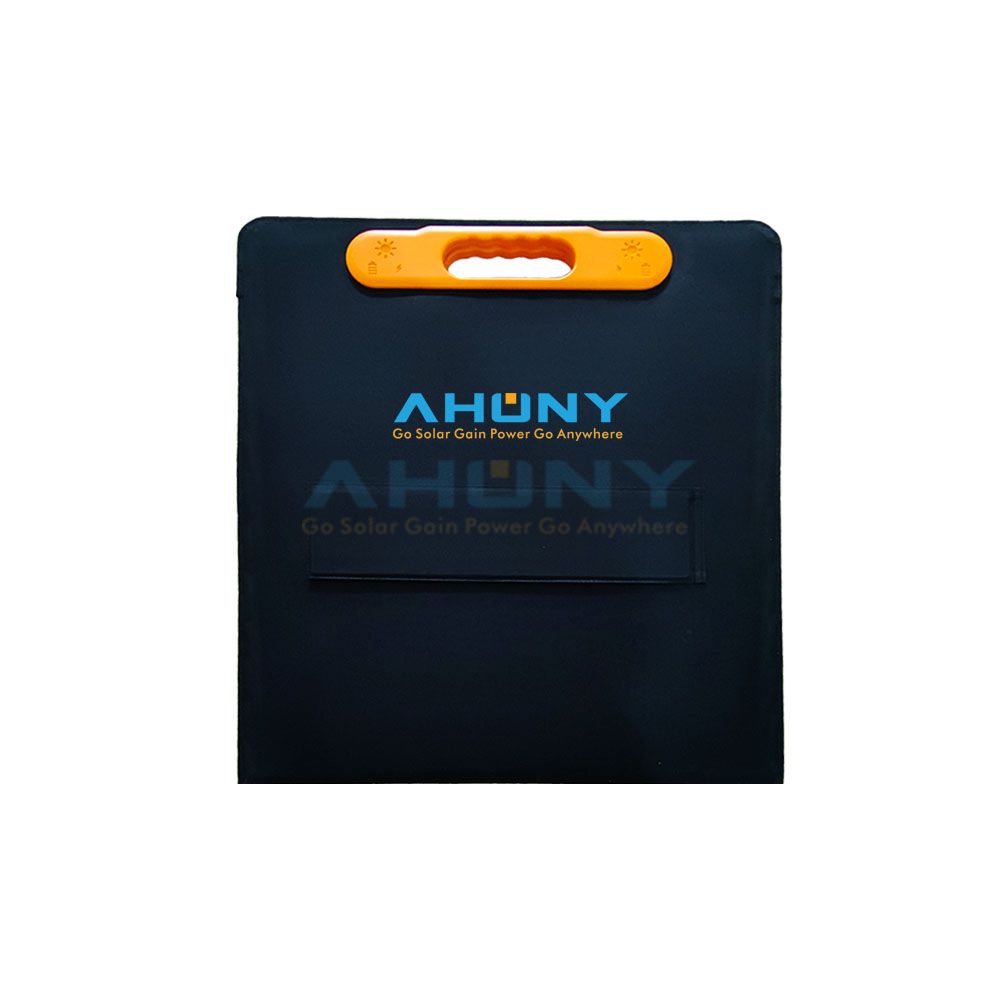

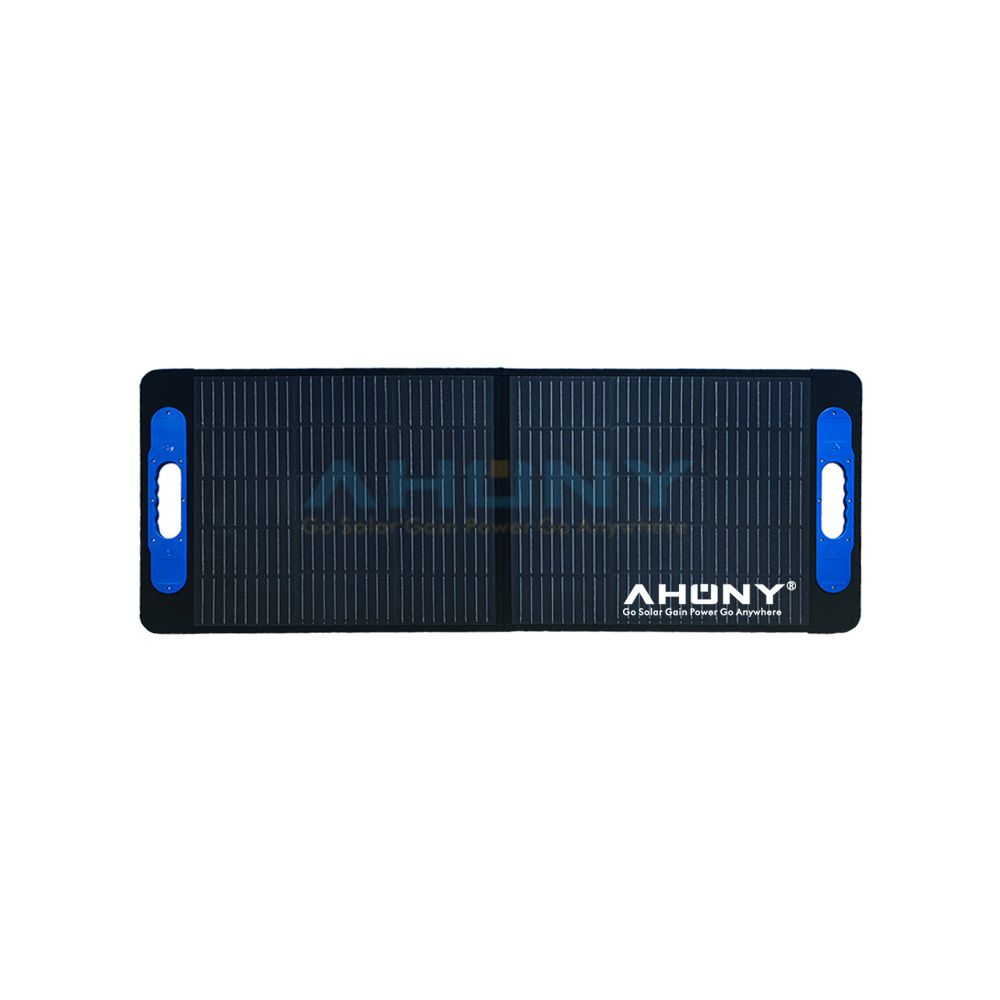

50W 120W Portable Foldable Solar Waterproof USB Port Charger Solar Cell Panel for Phone Battery Outdoor

mobile solar panels for home and foldable solar charger 60w 100w 120w to portable solar generator

  • eMobi F50W 120W

  • AHONY or OEM/ODM

  • 372*440*60mm / 538*615*70mm

  • Hiking Camping Power Station,phone charger,laptop charger

  • 24.20%

Folded Size[mm]:
372*440*60mm(50w)
538*615*70mm(120w)
Open Size[mm]:
372*878*12mm(50w)
538*1234*12mm(120w)
Availability:
Inquire

eMobi Fab folding solar charger uses UV resistant handle material to insert into panel,compared to old silicon gel
handle,It’s thiner,lighter,waterproof,more durable and strongly integrated with whole kit.There are magnetic handle
into the handle to fold the kit automatically and tightly.The handle use minimalist and user-friendly design,it’s easier
to open,put up the kit and close it.
Smart IC powers different charging port USB,DC5521,type C,waterproof,dustproof charging port covers.
Cables are available to charge portable power station.
There are strong supporting legs to get max power,anti-blow up holes to fix the kits on ground,cars,rvs.
Big cable pocket to fill in more accessories.
The kits are used for charging electronic devices,smart phones,5v appliances,portable power bank etc.It charges lead
acid,gel,lihtium,lithium LifePo4 batteries indirectly as well.
Model No. eMobi Fab 50w(2*25w) eMobi Fab 120w(2*60w)
Maximum Power[Wp] 50 120
Solar Cell A grade mono 166 9BB cells 2*8*2 A grade mono 166 9BB cells 3*6*2
Cell Efficiency 24.2% 24.2%
Folded Size[mm] 372*440*60 538*615*70
Open Size[mm] 372*878*12 538*1234*12
Max Power Voltage Vmp[V] 19.84 22.32
Max Power Current Imp[A] 2.52 5.38
Open Circuit Voltage Voc[V] 23.01 25.89
Short Circuit Current Isc[A] 2.67 5.70
Net./Gross Weight[kg] 7.5/7.9 9/9.5
Operating Temperature[℃] -40/+85 -40/+85
Temperature Coefficient Pmax[%/℃] -0.3 -0.3
Temperature Coefficient Voc[[%/℃] -1.74mV -1.74mV
Temperature Coefficient Isc[[%/℃] 0.05 0.05
Maximum System Voltage[V] 200 V 200 V
Certification CE ROHS
Handle colour Blue,Orange,Black
Suface/backsheet PET+high density textile  PET+high density textile
Output 1-USB 5V@3A，9V@2A，12V@1.5A 5V@3A，9V@2A，12V@1.5A
Output 2-Type C PD65w
Output 3-DC5521 19v 3A
Cable1 DC5525+1m cable+MC4
Cable 2 1m DC5525 to DC5525
Supporting Leg Yes,1 leg Yes,2 leg
