eMarvel 50w PERC
AHONY or OEM
350*840*5mm
Balcony,Garden,RV,Boat,Camper,roof,home solar system
22.5%
Availability: | |
---|---|

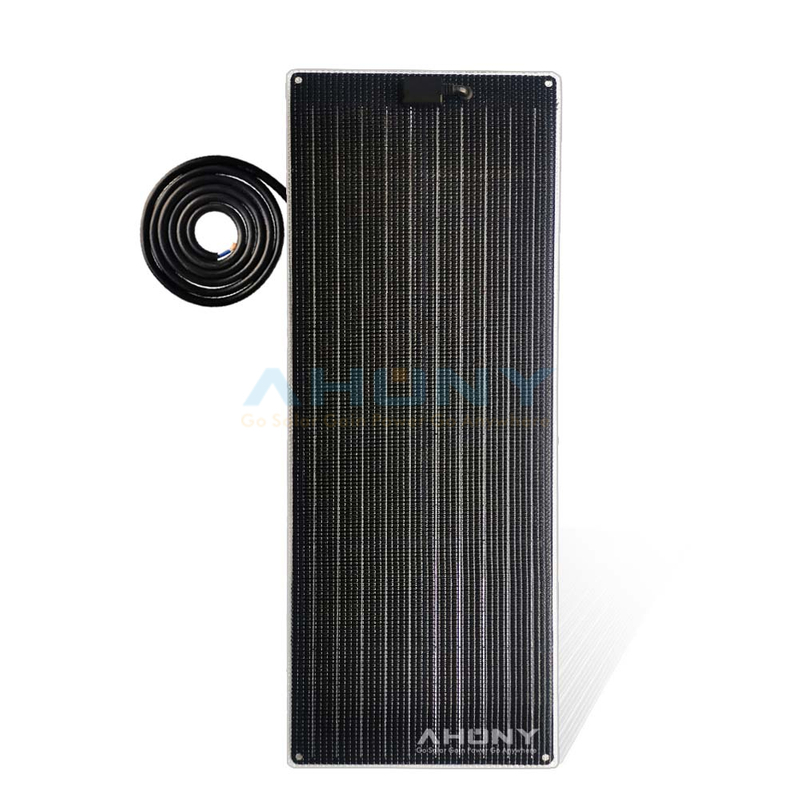

The eMarvel semi rigid marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this semi rigid light marine solar panel can bend a slightly angle max 5degree,they are approved by CE,ROHS,SGS,certified under IEC standard.
AHONY uses high efficiency cell over 22% monocrystalline or back contact cells Gen III over 22.6%.We offer a wide ranges of
customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.
*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid,thin,light design for widely use
Solar cells can be:Back contact cell;Monocrystalline solar cell;Polycrystalline solar cell.
-Self clean Japan ETFE surface,anti skid,
Longer lifespan and higher flaming retardancy.
-transparent edge and laser cutting angle,better performance and higher quality of waterproof.
-solid water proog UL standard cable,sealed Jbox and double side waterproof,it's solid,walk on,drive on and can use in harsh environment like desert,icy,salty etc.
【Yacht-Long Journey Cruise】
eMarvel are designed for harsh environment which enables sailers to enjoy long journey cruise in ocean.The panel are tested under SGS IEC standard in salt mist condition,high moisture.Moreover,high temperature high humidity test for more than 1200hours,with stable power output.
【Sticking on Sailing】
We offer a wide range of customize service,small panel are good for sticking on mast which powers light,sailing signal etc.For off grid power station,RV roof.It's also a good match for portable solar panels,portable solar generators,portable solar
case etc.
【Parking lot|RV Roof|Charge Station】
It has great advantages installing on RV roof,yacht roof,parking lot which may get heated in high temperature in summer.It's rough surface allows air circulation between to cool down the panels.On the other hand,the thick bottom has bigger distance between installing surface and solar cell.These keep the solar panel power stable and better performance than other.
The eMarvel semi rigid marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this semi rigid light marine solar panel can bend a slightly angle max 5degree,they are approved by CE,ROHS,SGS,certified under IEC standard.
AHONY uses high efficiency cell over 22% monocrystalline or back contact cells Gen III over 22.6%.We offer a wide ranges of
customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.
*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid,thin,light design for widely use
Solar cells can be:Back contact cell;Monocrystalline solar cell;Polycrystalline solar cell.
-Self clean Japan ETFE surface,anti skid,
Longer lifespan and higher flaming retardancy.
-transparent edge and laser cutting angle,better performance and higher quality of waterproof.
-solid water proog UL standard cable,sealed Jbox and double side waterproof,it's solid,walk on,drive on and can use in harsh environment like desert,icy,salty etc.
【Yacht-Long Journey Cruise】
eMarvel are designed for harsh environment which enables sailers to enjoy long journey cruise in ocean.The panel are tested under SGS IEC standard in salt mist condition,high moisture.Moreover,high temperature high humidity test for more than 1200hours,with stable power output.
【Sticking on Sailing】
We offer a wide range of customize service,small panel are good for sticking on mast which powers light,sailing signal etc.For off grid power station,RV roof.It's also a good match for portable solar panels,portable solar generators,portable solar
case etc.
【Parking lot|RV Roof|Charge Station】
It has great advantages installing on RV roof,yacht roof,parking lot which may get heated in high temperature in summer.It's rough surface allows air circulation between to cool down the panels.On the other hand,the thick bottom has bigger distance between installing surface and solar cell.These keep the solar panel power stable and better performance than other.
Model No. | eMarvel 50w PERC |
Product Name | semi rigid solar panel |
Maximum Power[Wp] | 50 |
Solar Cell | A grade mono solar cell |
Cell Array[Pcs] | 4*9 |
Cell Efficiency | 21.70% |
Size[mm] | 350*920*5 |
Max Power Voltage Vmp[V] | 20.26 |
Max Power Current Imp[A] | 2.47 |
Open Circuit Voltage Voc[V] | 24.05 |
Short Circuit Current Isc[A] | 2.62 |
Net.Weight[kg] | 2.8 |
Temperature Coefficient Pmax[%/K] | -0.3 |
Temperature Coefficient Voc[[%/K] | -1.74mV |
Temperature Coefficient Isc[[%/K] | 0.05 |
Maximum System Voltage[V] | 1000 V |
Model No. | Power (W) | Size[mm] Size may change,please ask sales for latest sizes | Cell Array | Solar Cell type | Solar Cell efficiency |
eMarvel 20W | 20 | 480*280*5 | SunPower | 22.60% | |
eMarvel 40W | 40 | 440*580*5 | 3*12 | SunPower | 22.60% |
eMarvel 50W | 50 | 550*595*5 | 4*8 | SunPower | 22.60% |
eMarvel 60W | 60 | 550*650*5 | 4*9 | SunPower | 22.60% |
eMarvel 80W | 80 | 550*860*5 | 4*18 | SunPower | 22.60% |
eMarvel 110W | 110 | 550*1090*5 | 4*8 | SunPower | 22.60% |
eMarvel 120W | 120 | 550*1220*5 | 4*9 | SunPower | 22.60% |
eMarvel 135W | 135 | 550*1350*5 | 4*10 | SunPower | 22.60% |
eMarvel 150W | 150 | 550*1470*5 | 4*11 | SunPower | 22.60% |
eMarvel 175W | 175 | 920*960*5 | 7*7 | SunPower | 22.60% |
eMarvel M20W | 20 | 430*350*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M40W | 40 | 350*750*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M50W | 50 | 350*920*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M60W Slim | 60 | 350*1045*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M60W | 60 | 510*720*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M80W | 80 | 510*935*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M90W | 90 | 510*1010*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M100W | 100 | 510*1105*5mm | 3*12 | PERC 5BB | 21.70% |
eMarvel M110W Slim | 110 | 510*1200*5mm | 3*12 | PERC 5BB | 21.70% |
eMarvel M110W | 110 | 670*950*5 | 4*9 | PERC 5BB | 21.70% |
eMarvel M120W | 120 | 510*1310*5 | 3*12 | PERC 5BB | 21.70% |
Model No. | eMarvel 50w PERC |
Product Name | semi rigid solar panel |
Maximum Power[Wp] | 50 |
Solar Cell | A grade mono solar cell |
Cell Array[Pcs] | 4*9 |
Cell Efficiency | 21.70% |
Size[mm] | 350*920*5 |
Max Power Voltage Vmp[V] | 20.26 |
Max Power Current Imp[A] | 2.47 |
Open Circuit Voltage Voc[V] | 24.05 |
Short Circuit Current Isc[A] | 2.62 |
Net.Weight[kg] | 2.8 |
Temperature Coefficient Pmax[%/K] | -0.3 |
Temperature Coefficient Voc[[%/K] | -1.74mV |
Temperature Coefficient Isc[[%/K] | 0.05 |
Maximum System Voltage[V] | 1000 V |
Model No. | Power (W) | Size[mm] Size may change,please ask sales for latest sizes | Cell Array | Solar Cell type | Solar Cell efficiency |
eMarvel 20W | 20 | 480*280*5 | SunPower | 22.60% | |
eMarvel 40W | 40 | 440*580*5 | 3*12 | SunPower | 22.60% |
eMarvel 50W | 50 | 550*595*5 | 4*8 | SunPower | 22.60% |
eMarvel 60W | 60 | 550*650*5 | 4*9 | SunPower | 22.60% |
eMarvel 80W | 80 | 550*860*5 | 4*18 | SunPower | 22.60% |
eMarvel 110W | 110 | 550*1090*5 | 4*8 | SunPower | 22.60% |
eMarvel 120W | 120 | 550*1220*5 | 4*9 | SunPower | 22.60% |
eMarvel 135W | 135 | 550*1350*5 | 4*10 | SunPower | 22.60% |
eMarvel 150W | 150 | 550*1470*5 | 4*11 | SunPower | 22.60% |
eMarvel 175W | 175 | 920*960*5 | 7*7 | SunPower | 22.60% |
eMarvel M20W | 20 | 430*350*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M40W | 40 | 350*750*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M50W | 50 | 350*920*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M60W Slim | 60 | 350*1045*5 | 2*18 | PERC 5BB | 21.70% |
eMarvel M60W | 60 | 510*720*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M80W | 80 | 510*935*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M90W | 90 | 510*1010*5 | 3*12 | PERC 5BB | 21.70% |
eMarvel M100W | 100 | 510*1105*5mm | 3*12 | PERC 5BB | 21.70% |
eMarvel M110W Slim | 110 | 510*1200*5mm | 3*12 | PERC 5BB | 21.70% |
eMarvel M110W | 110 | 670*950*5 | 4*9 | PERC 5BB | 21.70% |
eMarvel M120W | 120 | 510*1310*5 | 3*12 | PERC 5BB | 21.70% |
