80w Foldable Solar Kit Portable Solar Charger with High Quality Handle Waterproof Charging Port for Portable Solar Generator Power Station Summer Camping Van RV Camp Travel

80w magnetic ultralight foldable solar kit,it's squre shape.
-Handle inset in textile,thinner,lighter compared to others;
-automatically fold by magnet;
-22.5% mono cell perc(customer can customize other cells HJT,SunPower cell efficiency up to 24.2%).
-USB QC3.0+type C PD65w+DC5521,charging power station 300-500wh.support ecoflow,jackery,poweroak etc brands.
-60w 80w 100w 110w available.
  • eMobi Fab 80w

  • AHONY or OEM

  • 510*510*40mm

  • Hiking Camping Power Station,phone charger,laptop charger

  • 23.00%

Availability:

80w magnetic ultralight foldable solar kit,it's squre shape.

-Handle inset in textile,thinner,lighter compared to others;

-automatically fold by magnet;

-22.5% mono cell perc(customer can customize other cells HJT,SunPower cell efficiency up to 24.2%).

-USB QC3.0+type C PD65w+DC5521,charging power station 300-500wh.support ecoflow,jackery,poweroak etc brands.

-60w 80w 100w 110w available.


Model   No. eMobi Fab 80w(2*40w)
Product Name 12V folding solar kits
Maximum   Power[Wp] 80
Solar Cell A grade mono PERC 5BB cells
Cell   Efficiency 23.00%
Folded   Size[mm] 510*510*40
Open Size[mm] 1016*510*30
Max Power   Voltage Vmp[V] 20.52
Max Power   Current Imp[A] 3.90
Open Circuit   Voltage Voc[V] 24.21
Short Circuit   Current Isc[A] 4.21
Net./Gross   Weight[kg] 3.4/3.8
NOCT[℃] 45±2
Operating   Temperature[℃] -40/+85
Temperature   Coefficient Pmax[%/℃] -0.3
Temperature   Coefficient Voc[[%/℃] -1.74mV
Temperature   Coefficient Isc[[%/℃] 0.05
Maximum System   Voltage[V] 100 V
Certification CE ROHS
Suface/backsheet PET+high density   textile 900D
Output 1-USB 5V@3A,9V@2A,12V@1.5A
Output 2-Type   C PD65w
Output   3-DC5521 19v 5A

Our advantage:

This eMobi fab series foldable solar kits use latest fashion magnetic handle,The handle is light,thin,UV resistant and fold automatically when put it closely.Also,the design is more aesthetics and user friendly,easier to carry without hurting the hand.

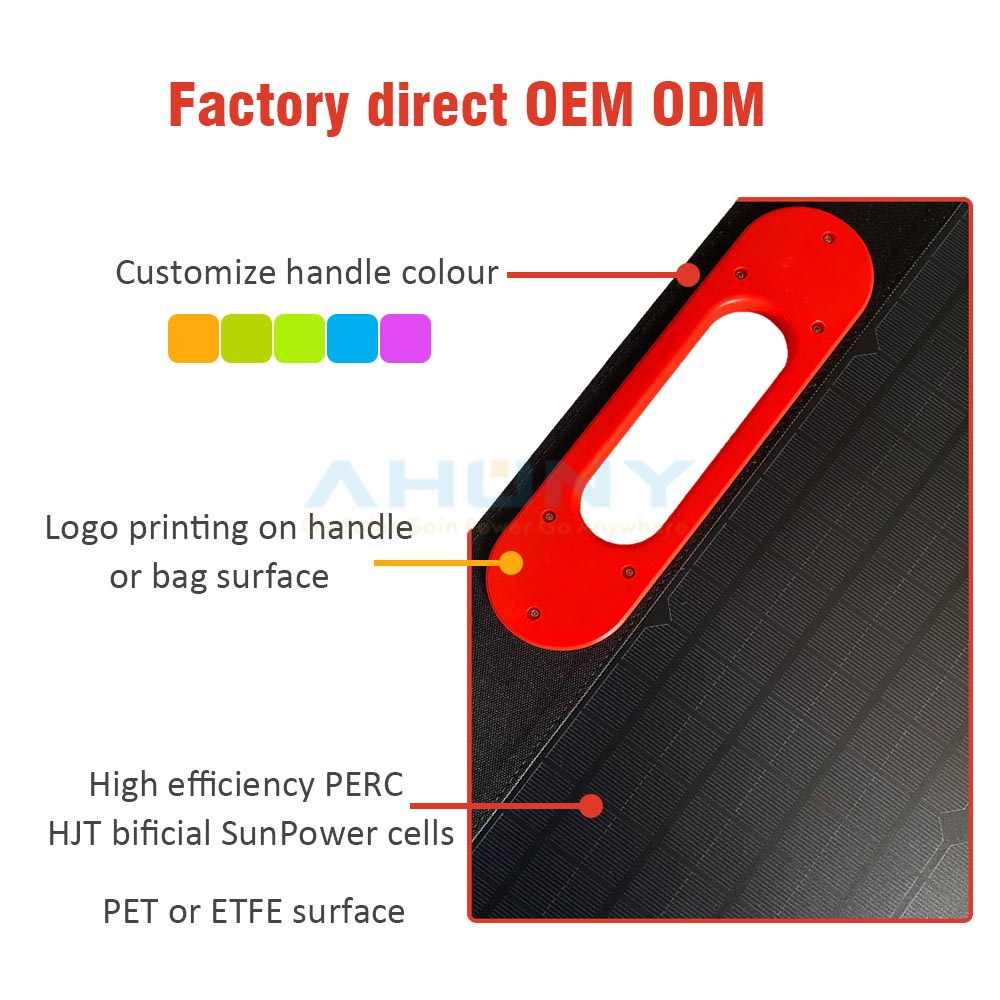

AHONY offer OEM service to print logo on it and customize handle colour for VIP customers.


The carry bag has a quick charging port USB and type C in it.The USB has smart charging to make smart phones charging faster and safer.The type C port support a lot of appliances like laptop,smartphone etc.There is charging indication as well to report charging status.AHONY fab portable solar kit charging port also have water and dustproof cover,it prevents water,dust or other dirt enter inner PCB.The lifespan of port is longer.


Application

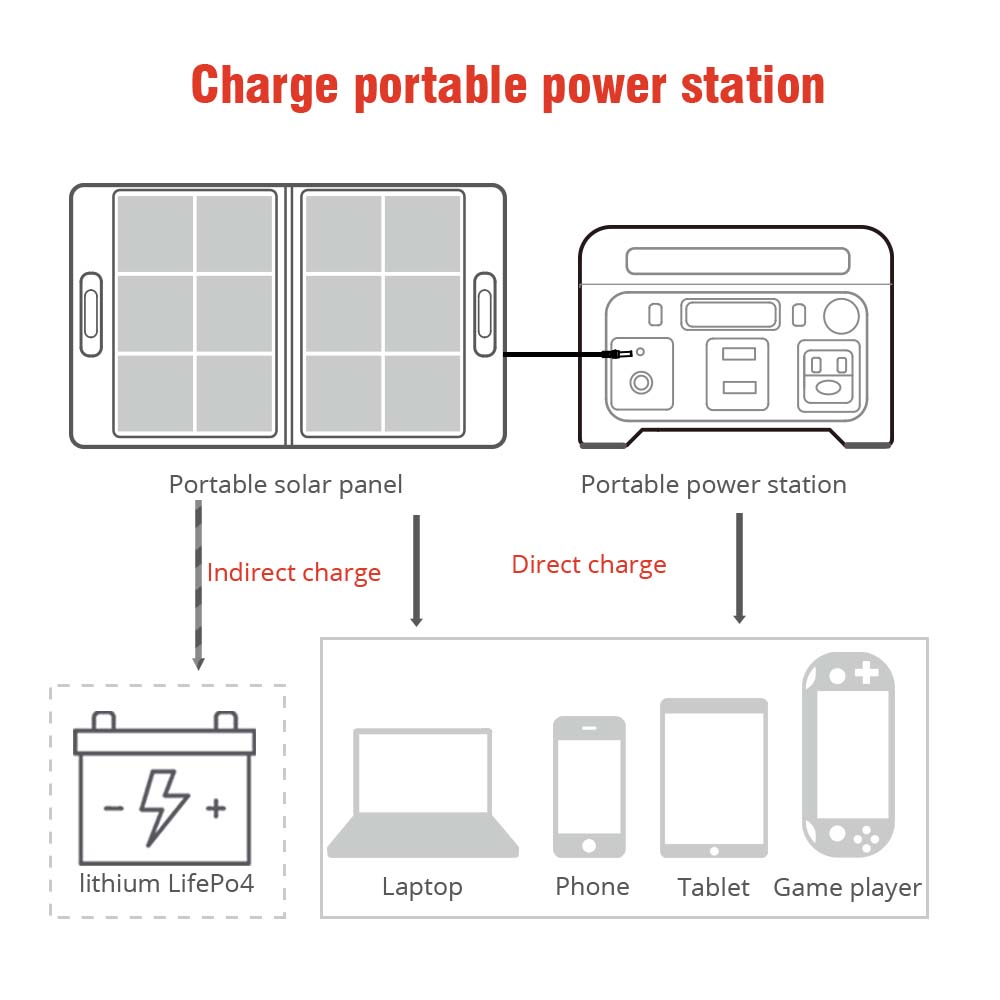

The portable solar charging kit 80w eMobi Fab series are used to charging different kinds portable power station,like famous brands Jackery,Ecoflow,Goal zero etc,ranging from 150wh to 1500wh.The kit can direct charge differnt digital devices like iphone,Huawei etc smart phone,camera,portable wifi,tablets etc.,it's widely used for camping,travel,remote promotion,medical care,disaster recovery.


-camping,travel,remote medical care,citizen registering,outdoor use

-By connecting extra charge controller,it can charge lithium batteries,lifePo4;

-charging power station directly as refered above;

-charging 5v 12v both like cellphone,laptop,bluetooth etc.

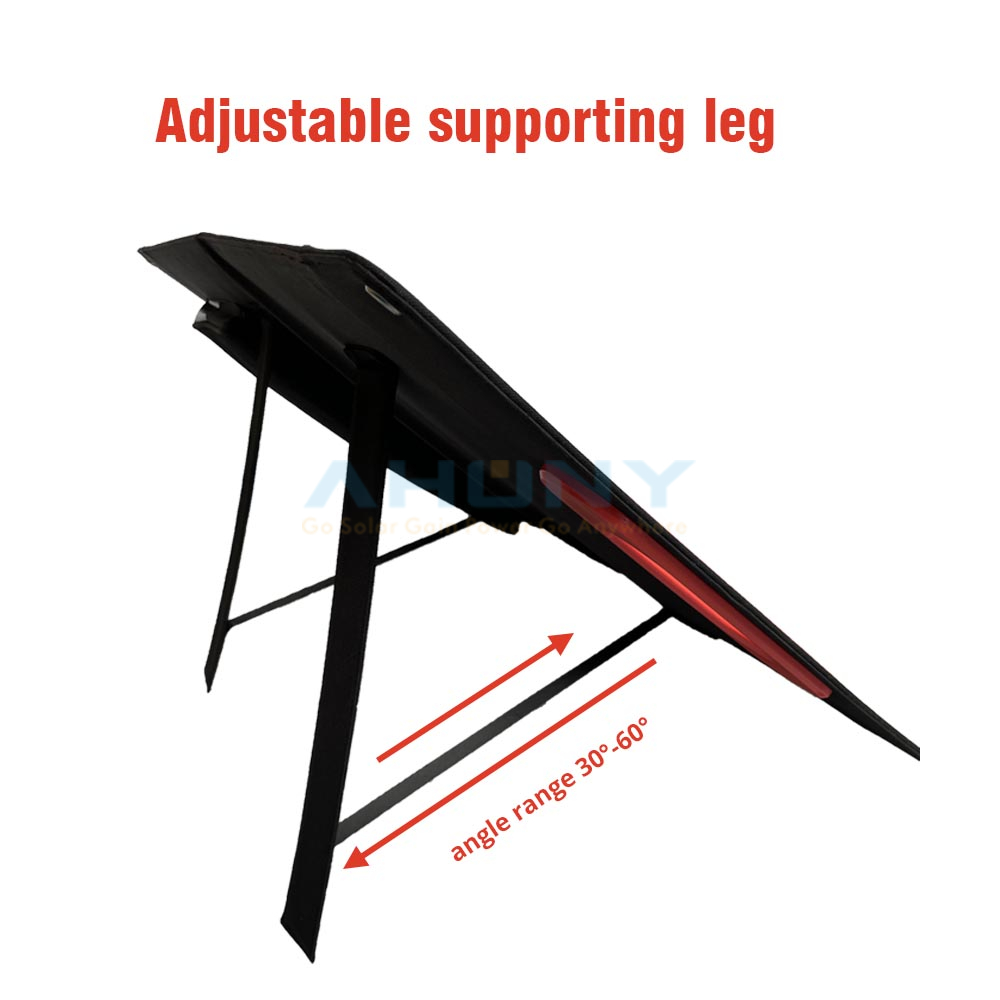

eMobi flag cable pocketeMobi flag handleahony factory OEMflag solar charging porteMobi F2x30w portable solar kitsolar adjustable legeMobi flag application
