AP-ER-M100W-B2
AHONY
P1071200088
400*1145*30mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
| Model No. | AP-ER-M100W-B2 |
| Product Name | Glass solar panel |
| Maximum Power[WP] | 100 |
| Solar Cell | Back Contact Solar Cell |
| Cell Array[pcs] | 2*24 |
| Solar Cell Size[mm] | 182*44,1/4 |
| Cell Efficiency | 25.80% |
| Size[mm] | 400*1145*30 |
| Max Power Voltage Vmp[V] | 31.25 |
| Max Power Current Imp[A] | 3.20 |
| Open Circuit Voltage Voc[V] | 36.56 |
| Short Circuit Current Isc[A] | 3.39 |
| Net.Weight[kg] | 5.00 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) |
| Certification | IEC61215 IEC61730,UKCA,CE ROHS,ISO9001 ISO14002 |
| Cables and Connectors | IP67 Jbox,0.9m 2.5m㎡ cable+MC4 |
| Bypass diodes | 1 |
| Warranty[years] | 10 |
| Selling Point | Leading brand Longi solar cell high efficiency 25.9% |
| Aesthetics back contact cells,no PID,superior weak light performance | |
| Full automatically welding,solid connection.Durable thick aluminium anodized frame. | |
| OEM,customize frame,logo,size,voltage power. | |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 26°C |

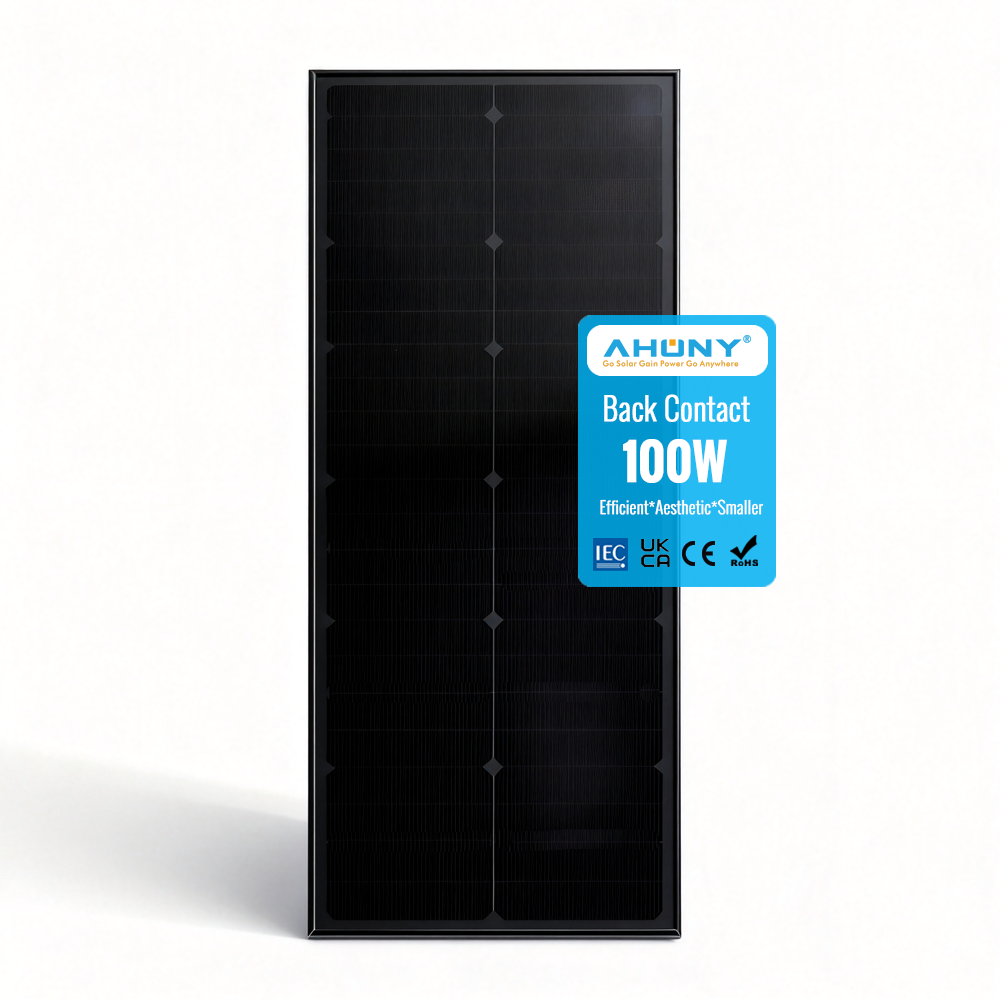

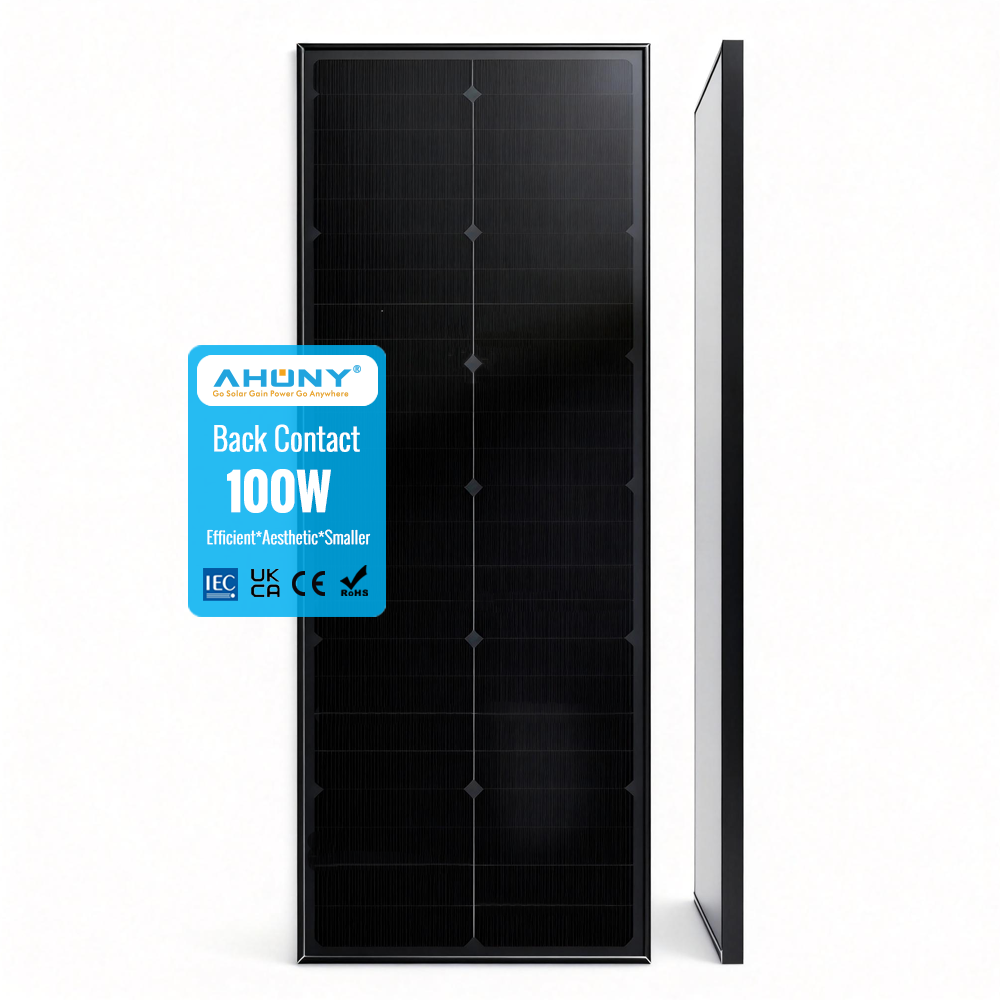

AHONY 100W Back Contact (BC) Solar Panel redefines the standard for compact solar energy. Utilizing advanced Back Contact (IBC) cell technology, this module eliminates all front-facing metal gridlines, resulting in a sleek, all-black aesthetic and maximized light absorption area. This design not only enhances the visual appeal—perfect for modern smart city infrastructure and high-end RV campers—but also delivers superior energy yield under partial shading conditions.
Designed for both off-grid adventures and fixed IoT installations, this 100W panel excels in space-constrained environments. Its shade-optimized circuitry ensures that dust, leaves, or nearby obstructions have minimal impact on overall output, making it exceptionally reliable for 24/7 battery storage systems and remote camera surveillance.
Whether you are powering a smart city sensor, maintaining a cold storage battery bank, or trickle-charging an RV, the AHONY BC series offers the perfect balance of durability, efficiency, and design.

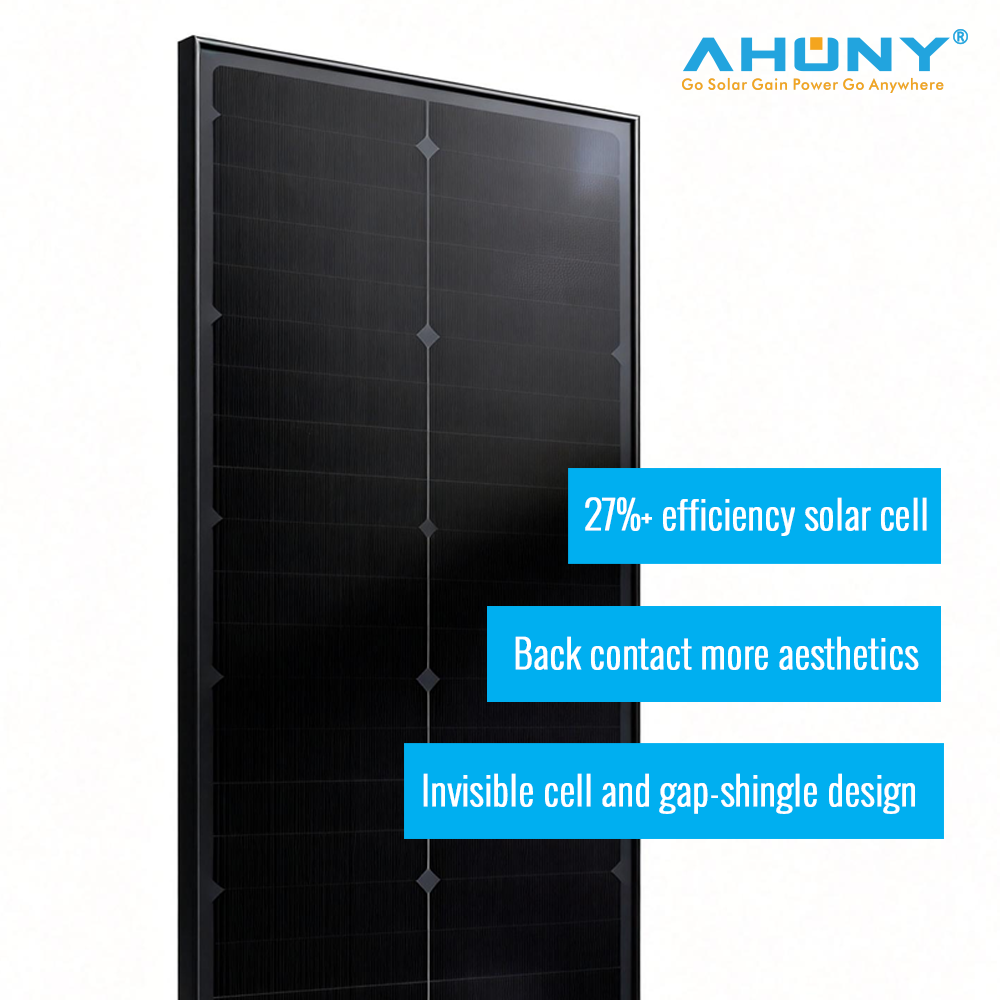

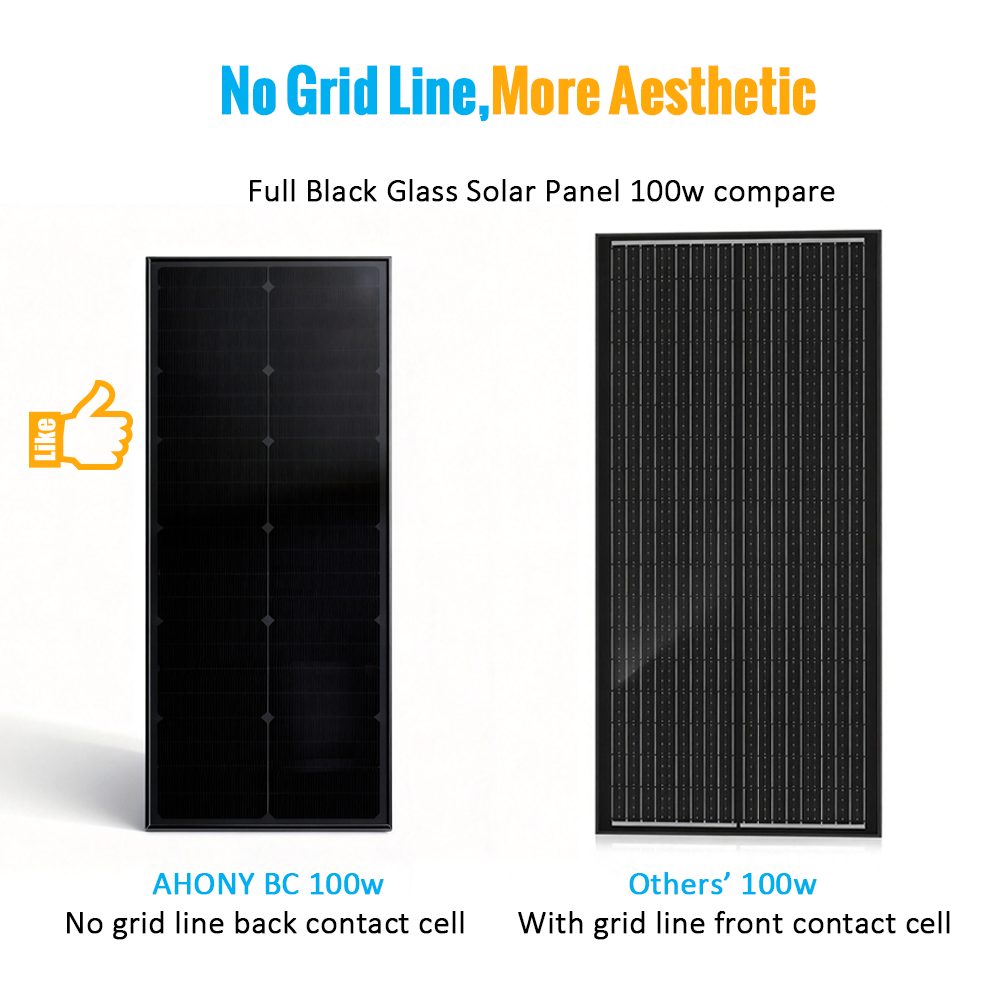

Zero Front Busbars: No metal gridlines on the front, increasing light absorption and overall cell efficiency.
High Power Density: Delivers stable 100W output in a compact frame, maximizing power per square foot.
Individual Cell Performance: Performs significantly better than traditional poly/perc panels when partially shaded (e.g., antennas, tree branches, poles).
Consistent Output: Minimizes hot spot risks and maintains energy flow to batteries and cameras.
Full Black Design: Uniform appearance with a black backsheet and frame; blends seamlessly into modern home facades, camper vans, and urban landscapes.
Architectural Grade: Ideal for visible installations where appearance matters (Smart City kiosks, luxury RVs).
IoT & Smart City: Perfect for low-power wide-area networks (LPWAN), smart traffic sensors, and remote monitoring stations.
RV & Camping: Lightweight and easy to mount on caravan roofs or portable solar generators.
Battery Storage: Excellent voltage output for 12V/24V MPPT charge controllers; maintains trickle charge efficiently.
Security Cameras: Reliable power source for 4G LTE CCTV and trail cameras in remote locations.
Corrosion-Resistant Frame: Anodized aluminum alloy suitable for marine environments and roadside installations.
Low-Light Performance: High sensitivity to dawn/dusk and overcast conditions, ensuring longer daily charge cycles.

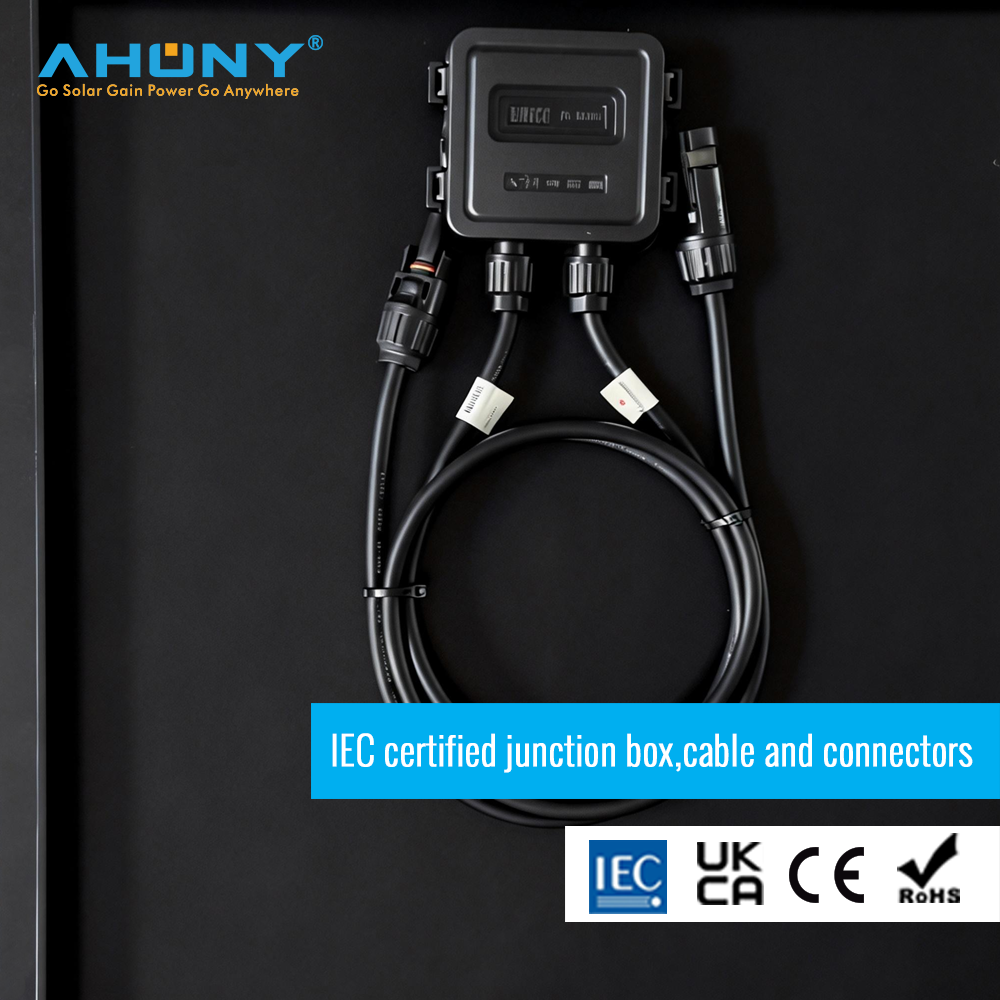

Standard Junction Box: Compatible with MC4 connectors for quick daisy-chaining or connection to charge controllers.
Compact Footprint: Lightweight structure puts less stress on RV roofs and temporary camp setups.

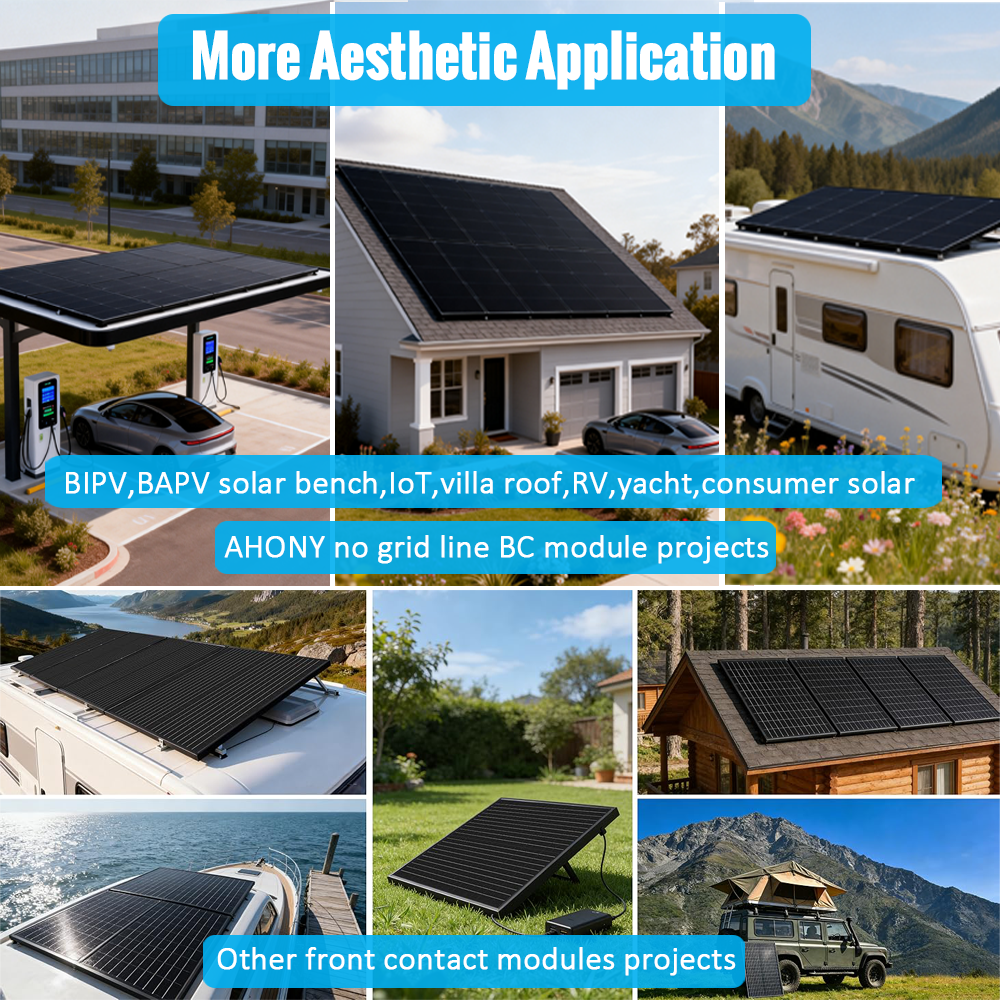

✔ Smart City Infrastructure (Traffic cameras, environmental sensors)
✔ IoT Remote Gateways
✔ 12V/24V Battery Banks & Energy Storage Systems
✔ RV / Caravan / Camper Van Off-Grid Systems
✔ Outdoor Security & Wildlife Cameras
✔ Marine & Sailboat Charging
