High efficiency solar cell :Use leading brand cell and high efficiency A grade quality to insure high and stable output.

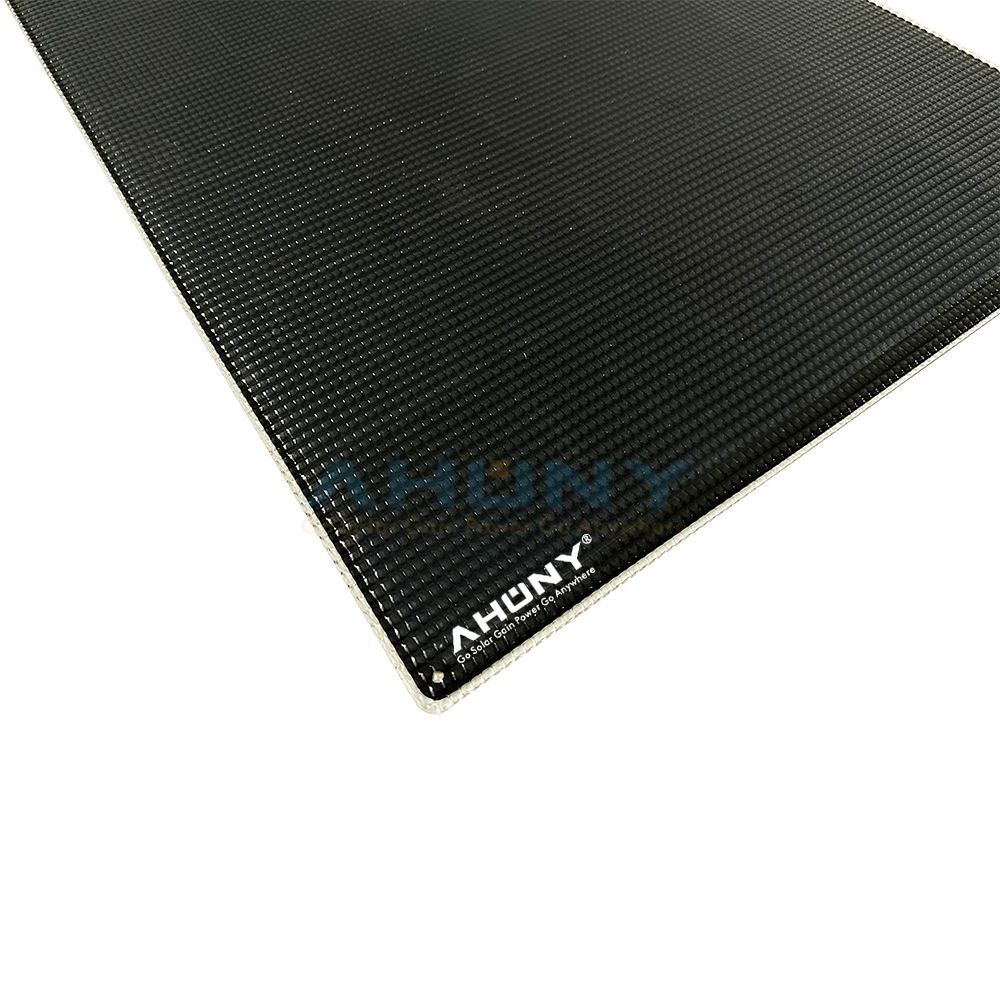

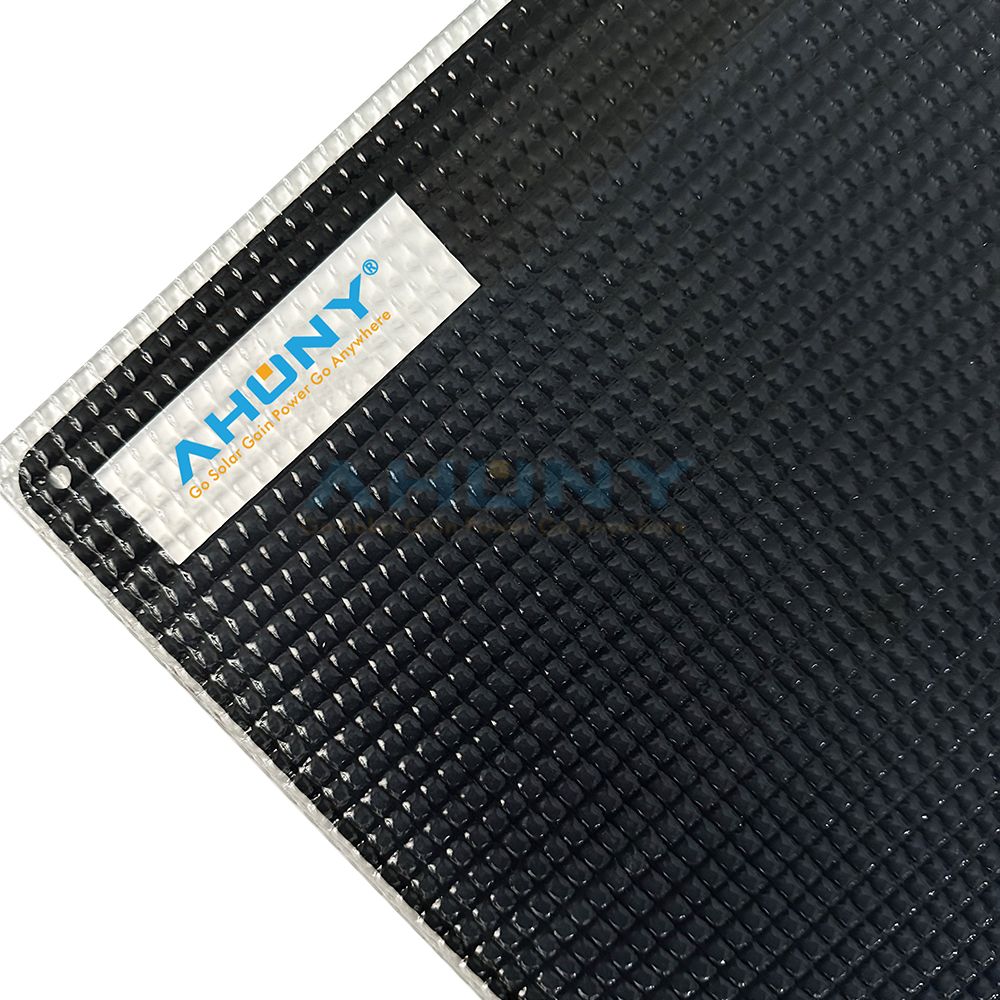

Walkable and Anti-slippery: By and means do not damage cells,the rough anti-slippery surface is safer for installation or maintenance.
Longer lifespan 15 years guaranteed: Premium weather or moisture resistance,for harsh environment 15 years life guaranteed,over 25 years lifespan.
High temp resistance and little power loss :The surface material resists high temperature flame retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss.

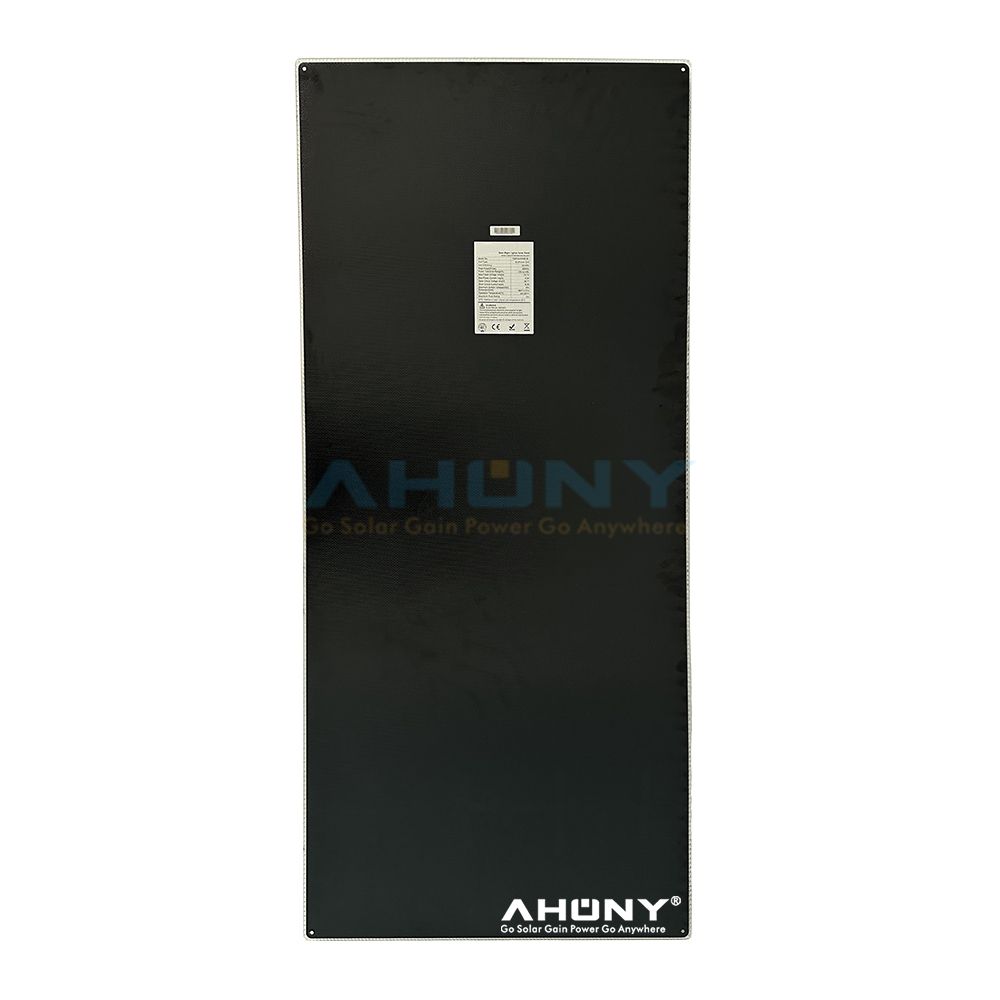

Rigid,thin,light design for widely use:It's rigid to resist hailstone.semi flexible with bend angle less 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc.It's 1/6 thickness 7/10 the weight of glass solar panel
|Model No. ||eMarvel 200w |
|Product Name ||Solar Panel 200w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface. |
|Maximum Power[Wp] ||200 |
|Solar Cell ||Back contact cell |
|Cell Array[Pcs] ||5*11 |
|Cell Efficiency ||24.4% |
|Size[mm] ||660*1460*4 |
|Max Power Voltage Vmp[V] ||33.66 |
|Max Power Current Imp[A] ||5.94 |
|Open Circuit Voltage Voc[V] ||39.72 |
|Short Circuit Current Isc[A] ||6.42 |
|Net.Weight[kg] ||4.95 |
|Power tolerance[%] ||±3% |
|NOCT[℃] ||46±2 |
|Operating Temperature[℃] ||-40/+85 |
|Temperature Coefficient Pmax[%/K] ||-0.3 |
|Temperature Coefficient Voc[[%/K] ||-1.74mV |
|Temperature Coefficient Isc[[%/K] ||0.05 |
|Maximum System Voltage[V] ||200 V |
