AP-ER-M150W-B2
AHONY
P1071200089
580*1150*30mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
| Model No. | AP-ER-M150W |
| Product Name | Glass solar panel |
| Maximum Power[WP] | 150 |
| Solar Cell | Back Contact Solar Cell |
| Cell Array[pcs] | 4*18 |
| Solar Cell Size[mm] | 182*44,1/4 |
| Cell Efficiency | 25.80% |
| Size[mm] | 580*1150*30 |
| Max Power Voltage Vmp[V] | 22.50 |
| Max Power Current Imp[A] | 6.67 |
| Open Circuit Voltage Voc[V] | 26.33 |
| Short Circuit Current Isc[A] | 7.07 |
| Net.Weight[kg] | 7.30 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) |
| Certification | IEC61215 IEC61730,UKCA,CE ROHS,ISO9001 ISO14003 |

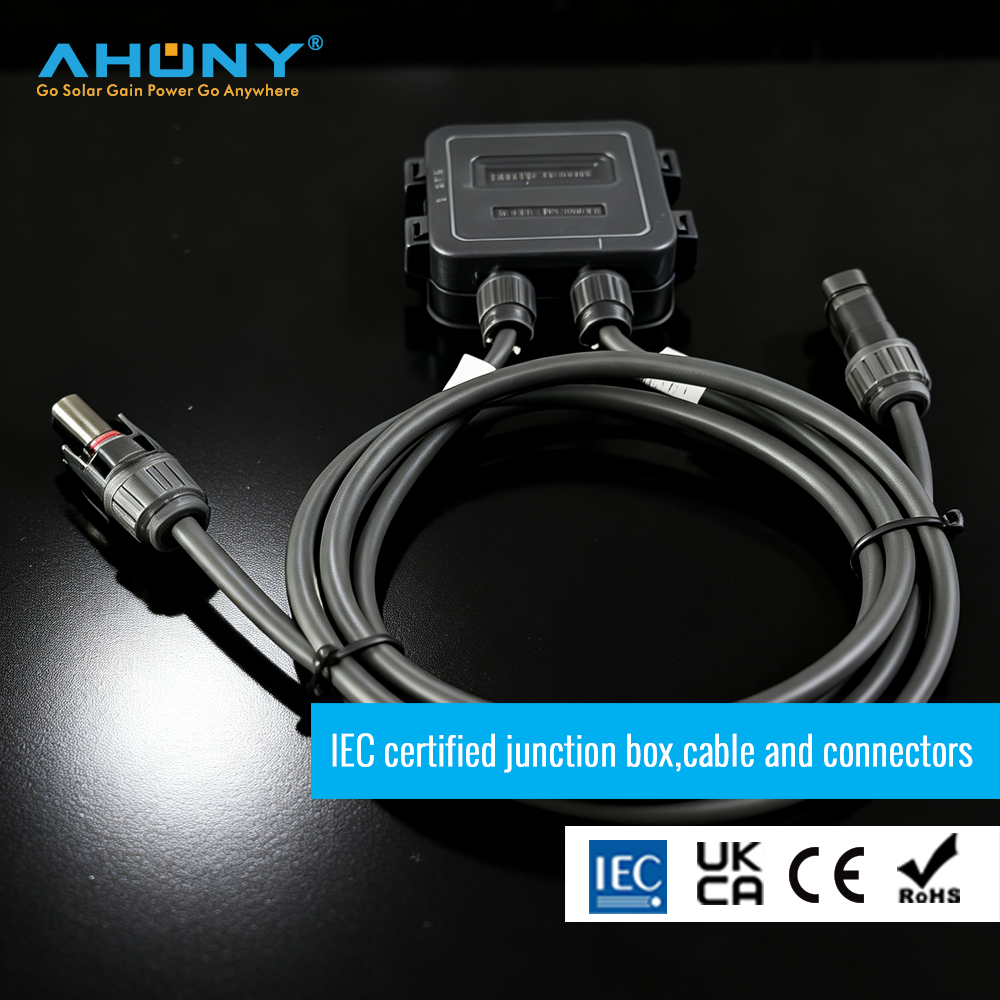

| Cables and Connectors | IP67 Jbox,0.3m 4.0m㎡ cable+MC4 |
| Bypass diodes | 2 |
| Warranty[years] | 10 |
| Selling Point | Leading brand Longi solar cell high efficiency up to 27.4% |
| Aesthetics back contact cells,no PID,superior weak light performance | |
| Full automatically welding,solid connection.Durable thick aluminium anodized frame. | |
| OEM,customize frame,logo,size,voltage power. | |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 27°C |

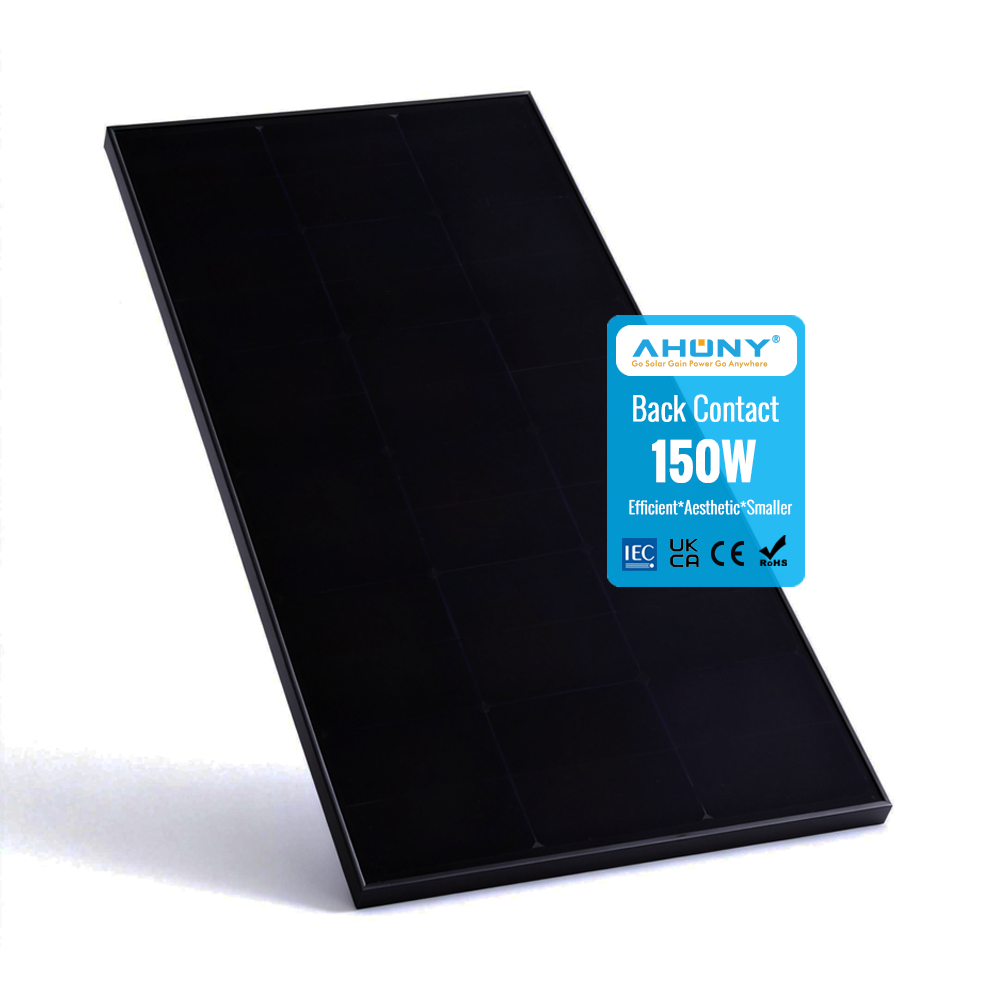

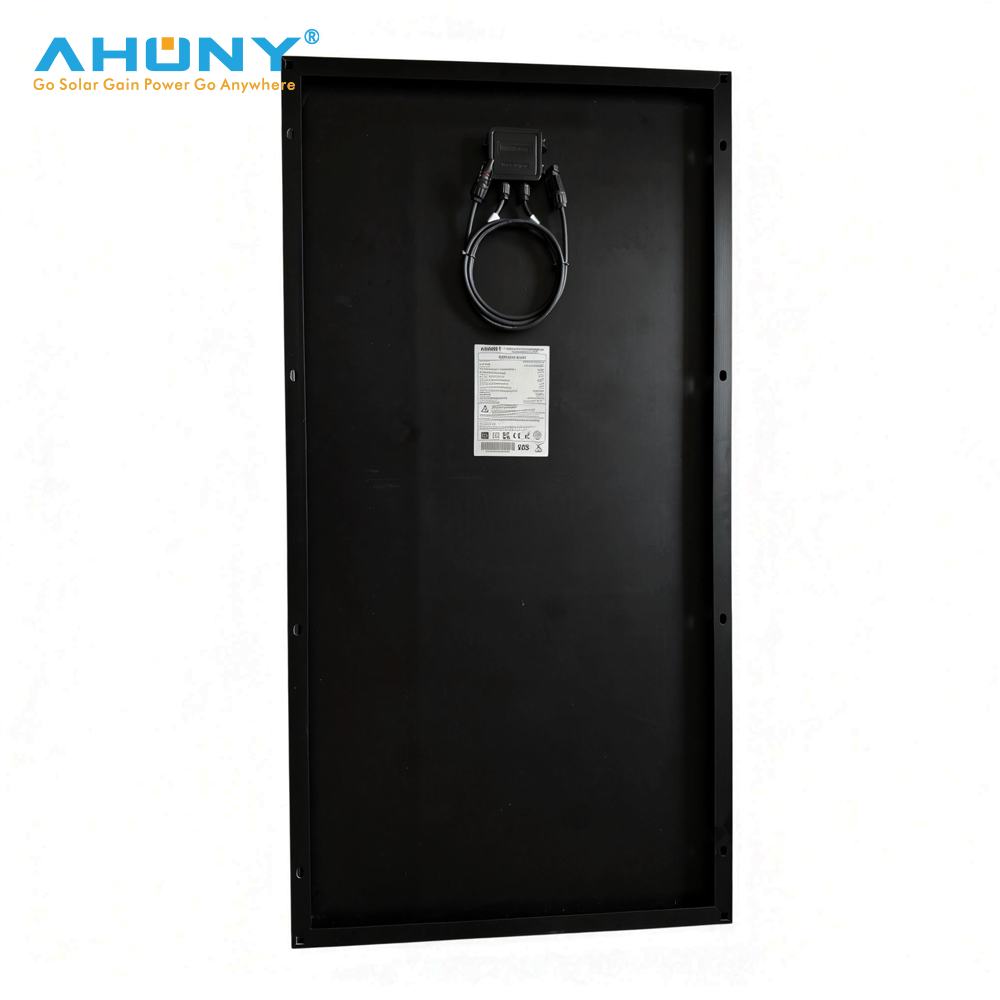

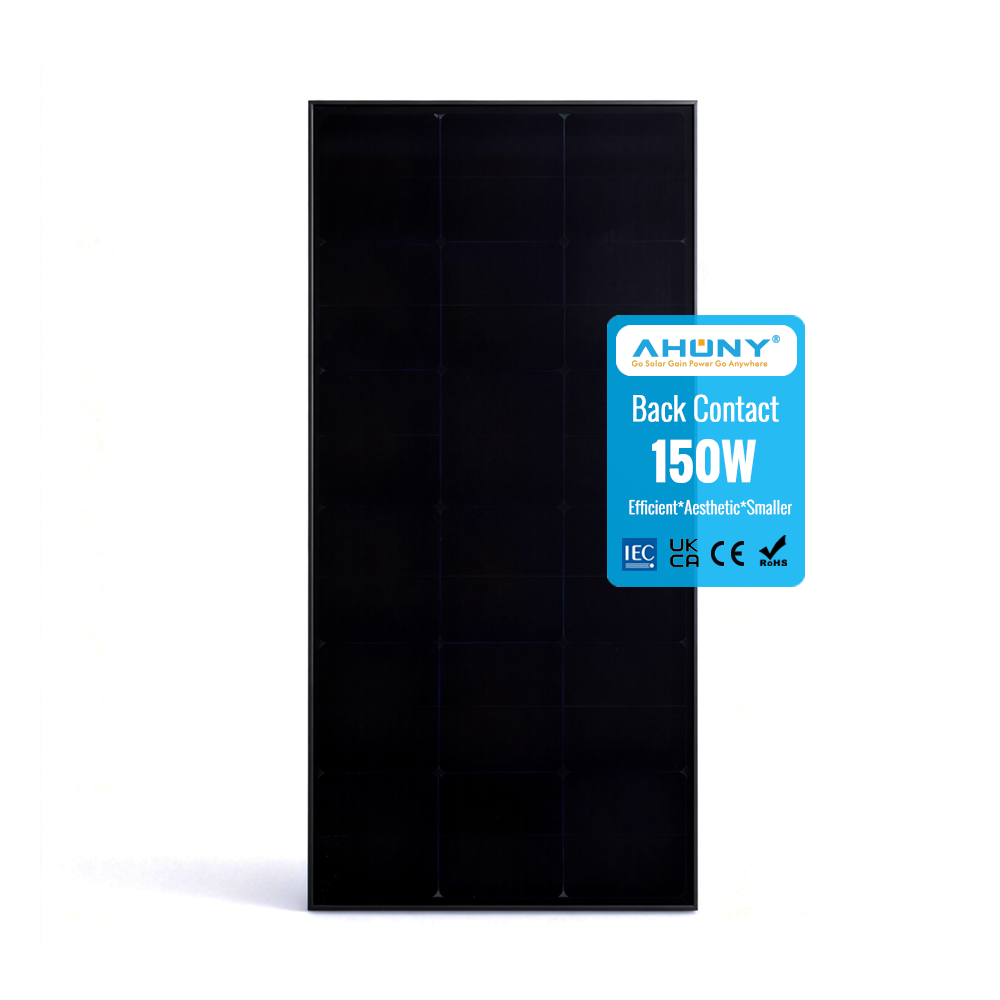

Take your off-grid adventures to the next level with the BC 150 Watt 12 Volt High-Efficiency Monocrystalline Solar Panel. Engineered for maximum energy harvest in a compact footprint, this premium PV module is the ultimate power source for mobile and remote applications. Whether you are cruising on a yacht, boondocking in your RV, or maintaining a remote farm, our advanced monocrystalline technology ensures a steady flow of clean, renewable energy to your 12V battery systems. Built to withstand the harshest environments, this panel combines sleek aesthetics with industrial-grade durability.
Superior Efficiency: Utilizing high-grade monocrystalline silicon cells, this panel achieves a higher conversion rate than standard modules, delivering more power per square inch even in limited roof spaces.
Built for the Elements: Features a corrosion-resistant anodized aluminum frame and IP67/IP68 waterproof junction box, making it salt-mist resistant for marine use and capable of withstanding heavy snow (5400Pa) and high wind loads (2400Pa).
Optimized Low-Light Performance: The advanced anti-reflective, high-transparency tempered glass allows for excellent energy generation during cloudy days, early mornings, and late evenings.
Versatile Off-Grid Application: Perfectly suited for 12V battery charging in RVs, campervans, boats, cabins, and remote agricultural equipment like water pumps or security lighting.
Plug-and-Play Setup: Comes pre-drilled for easy mounting and includes 90cm solar cables with standard MC4 connectors for a quick, secure, and hassle-free installation.
Long-Term Reliability: Designed for a 25-year service life, ensuring you have a dependable power partner for decades of outdoor exploration.
