AP-ER-M200W-B2
AHONY
P1071200133
760*1165*30mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
| Model No. | AP-ER-M200W |
| Product Name | Glass solar panel |
| Maximum Power[WP] | 200 |
| Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% |
| Size[mm] | 760*1165*30 |
| Max Power Voltage Vmp[V] | 28.12 |
| Max Power Current Imp[A] | 7.11 |
| Open Circuit Voltage Voc[V] | 32.90 |
| Short Circuit Current Isc[A] | 7.54 |
| Net.Weight[kg] | 9.45 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) |
| Certification | IEC61215 IEC61730,UKCA,CE ROHS,ISO9001 ISO14004 |
| Cables and Connectors | IP67 Jbox,0.3m 4.0m㎡ cable+MC4 |
| Bypass diodes | 2 |
| Warranty[years] | 10 |
| Selling Point | Leading brand back contact solar cell high efficiency 25.8% to 27.4% |
| Aesthetics back contact cells,no PID,superior weak light performance | |
| Full automatically welding,solid connection.Durable thick aluminium anodized frame. | |
| OEM,customize frame,logo,size,voltage power. | |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 28°C |
As a direct manufacturer, we offer high-quality 200W monocrystalline solar panels engineered for maximum performance and durability. Utilizing next-generation N-Type 182 mm silicon wafers, this panel delivers superior power output and long-term reliability, making it the ideal choice for engineering projects,integrated solar system and large-scale distributors.
AHONY 200W N-Type panel is designed to meet the growing demand for compact, high-efficiency power solutions. Whether your clients are outfitting an off-grid cabin or building a backup power station, this panel offers plug-and-play convenience with industrial-grade construction.
Why choose AHONY 200w solar panel?
Next-Gen N-Type Cells: Reduced degradation and higher efficiency at high temperatures. A premium upgrade over standard poly or P-Type mono panels.
Smart Size for Multiple Markets: Compact footprint suitable for RVs, marine vessels, garden sheds, and balcony systems. One SKU covers multiple customer segments.
True 12V Optimization: Built specifically for 12V battery charging, reducing the need for complex converters.
Manufacturer Direct: Stable supply chain, strict quality control (EL tested), and 30% lower defect rates. Ready for bulk shipment.
Product Overview:

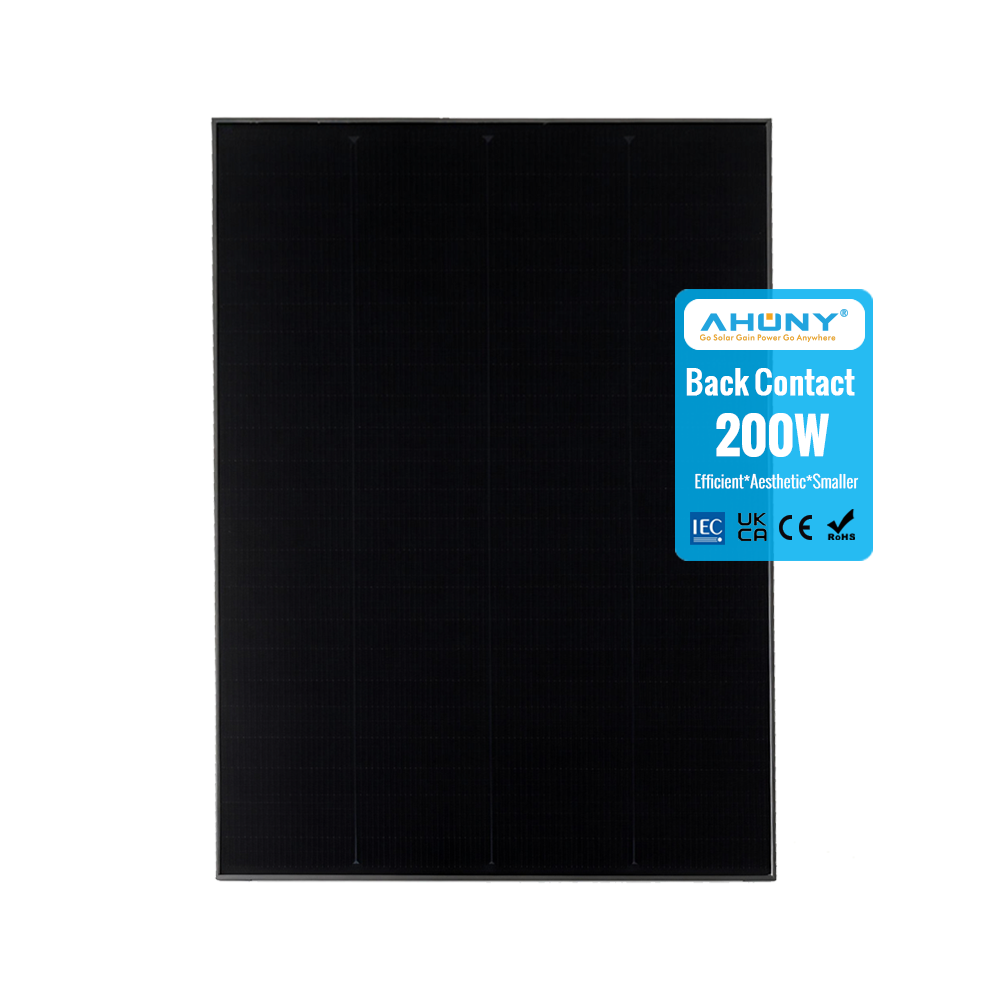

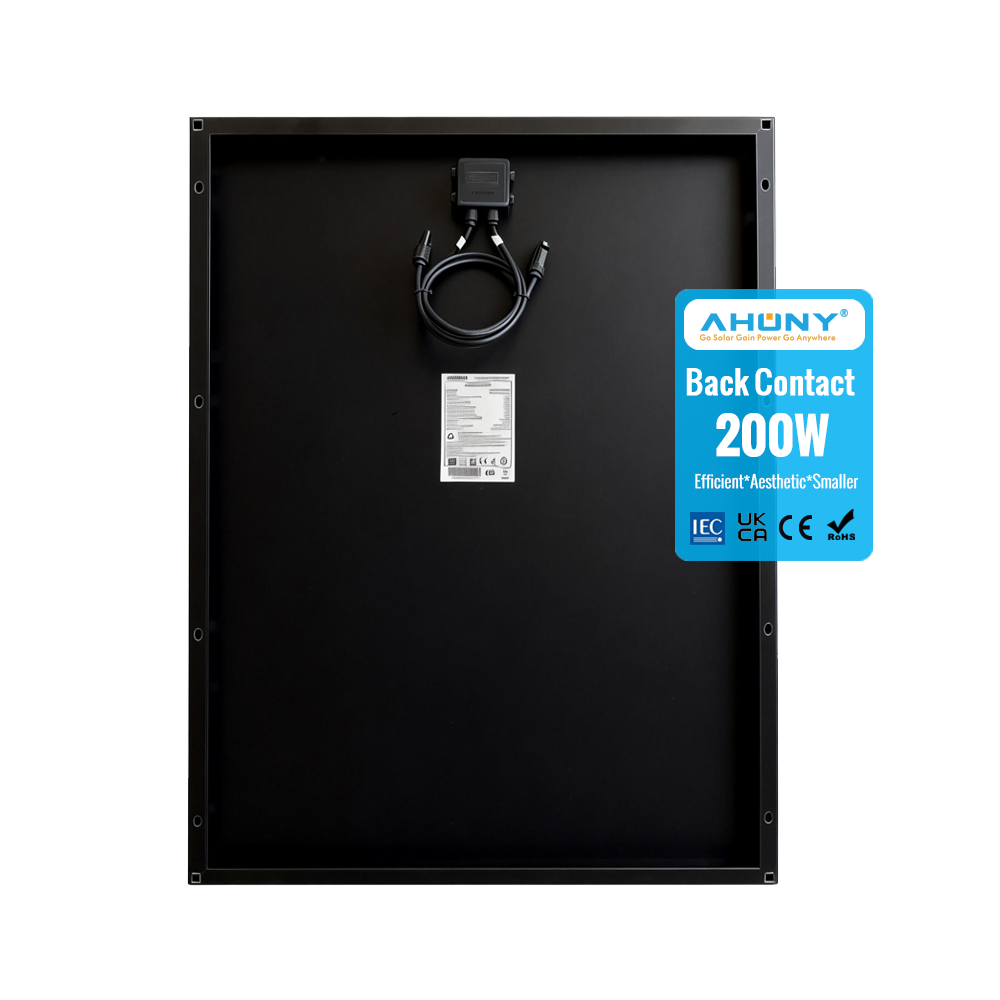

BC Solar Panel 200W Monocrystalline | N-Type | 182 mm Cells
*Professional grade solar module for 12V battery systems. Suitable for motorhome, balcony power station, marine, and off-grid sheds.*
Key Advantage
Manufacturer Direct: Eliminate middlemen. High MOQ capacity with just-in-time delivery.
N-Type Efficiency: Up to 23% module efficiency. Lower temperature coefficient ensures stable output in hot weather.
182 mm Wafer Design: Modern cell split technology reduces hot spots and increases mechanical strength.
Durability: IP68 junction box, anodized aluminum frame, resistant to salt water and ammonia (certified for marine/agricultural use).
Application Engineering: Ideal for OEMs building 12V power stations, camping trailers, and DIY balcony kits.
Customization: Custom connectors, cable length, and logo printing available for bulk orders.
Target Clients: Solar distributors, RV manufacturers, marine equipment suppliers, balcony power kit assemblers, and off-grid engineering firms.
