eGo S120W
AHONY
BP107020011000117
580*935*3mm

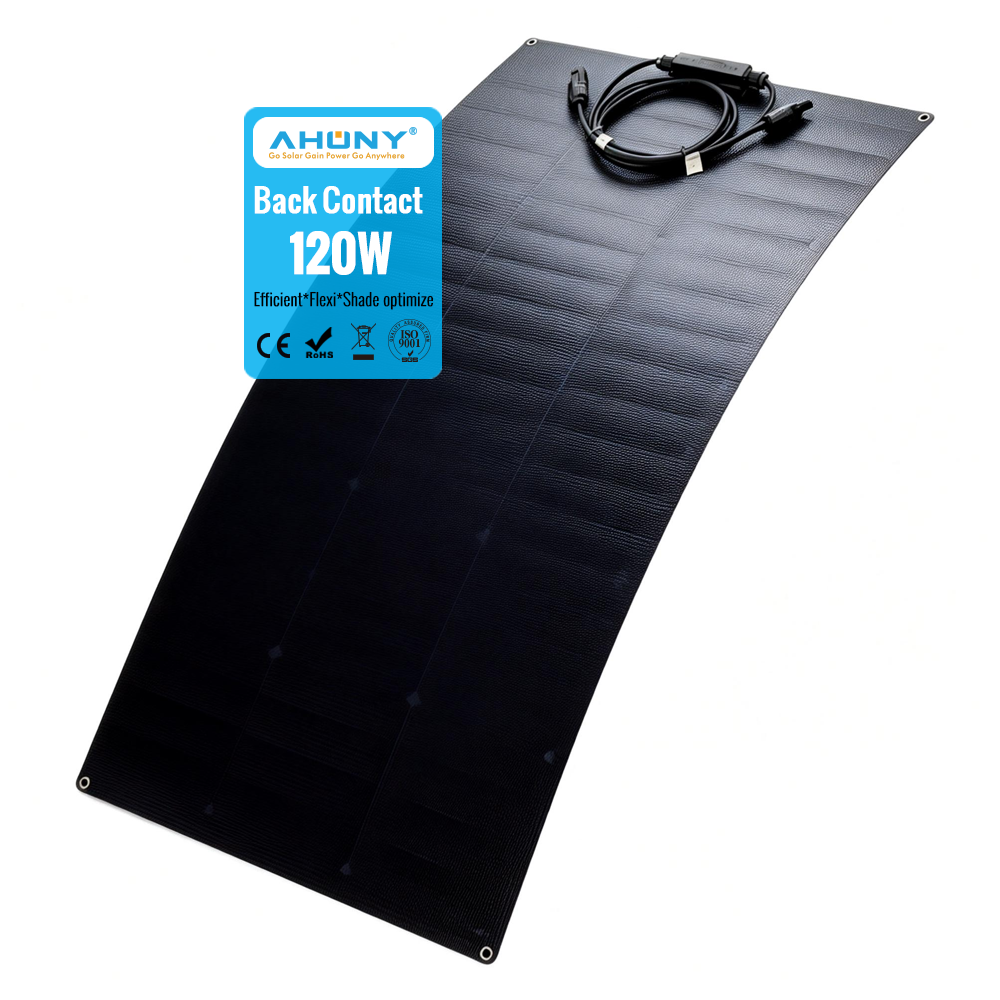

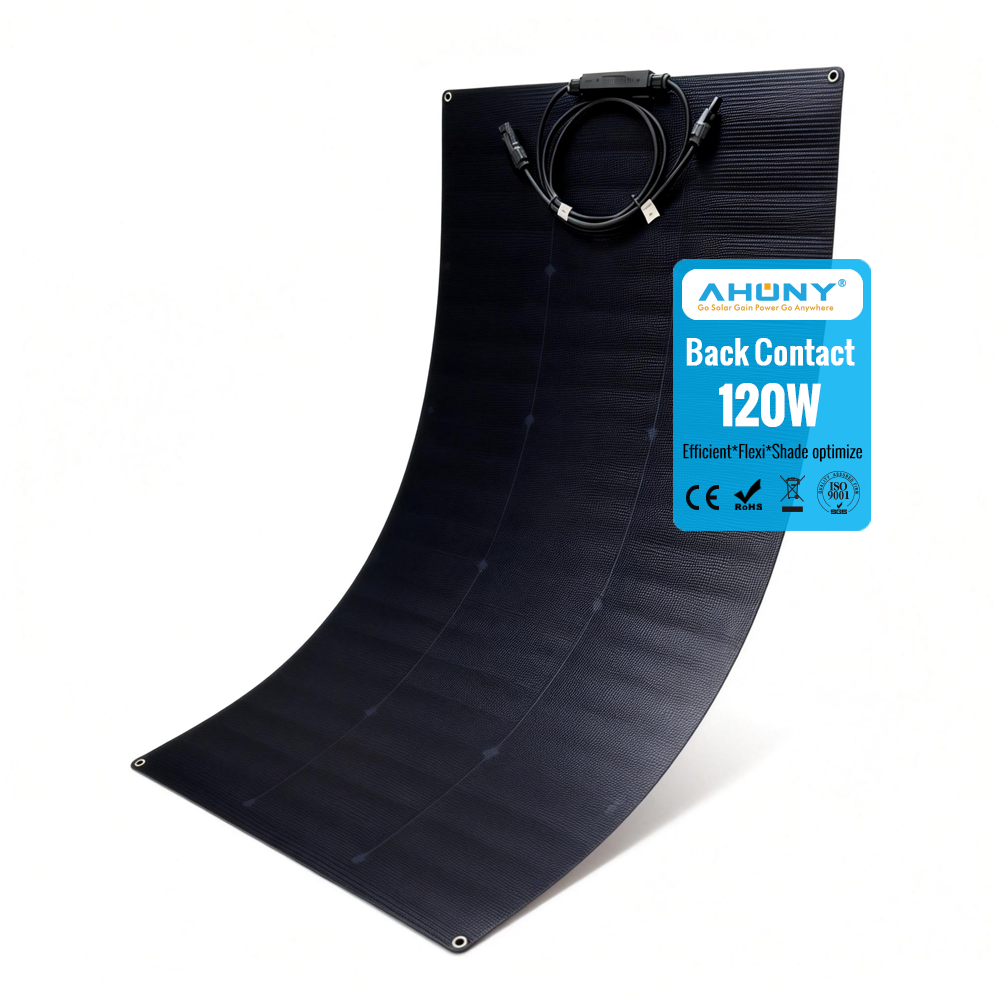

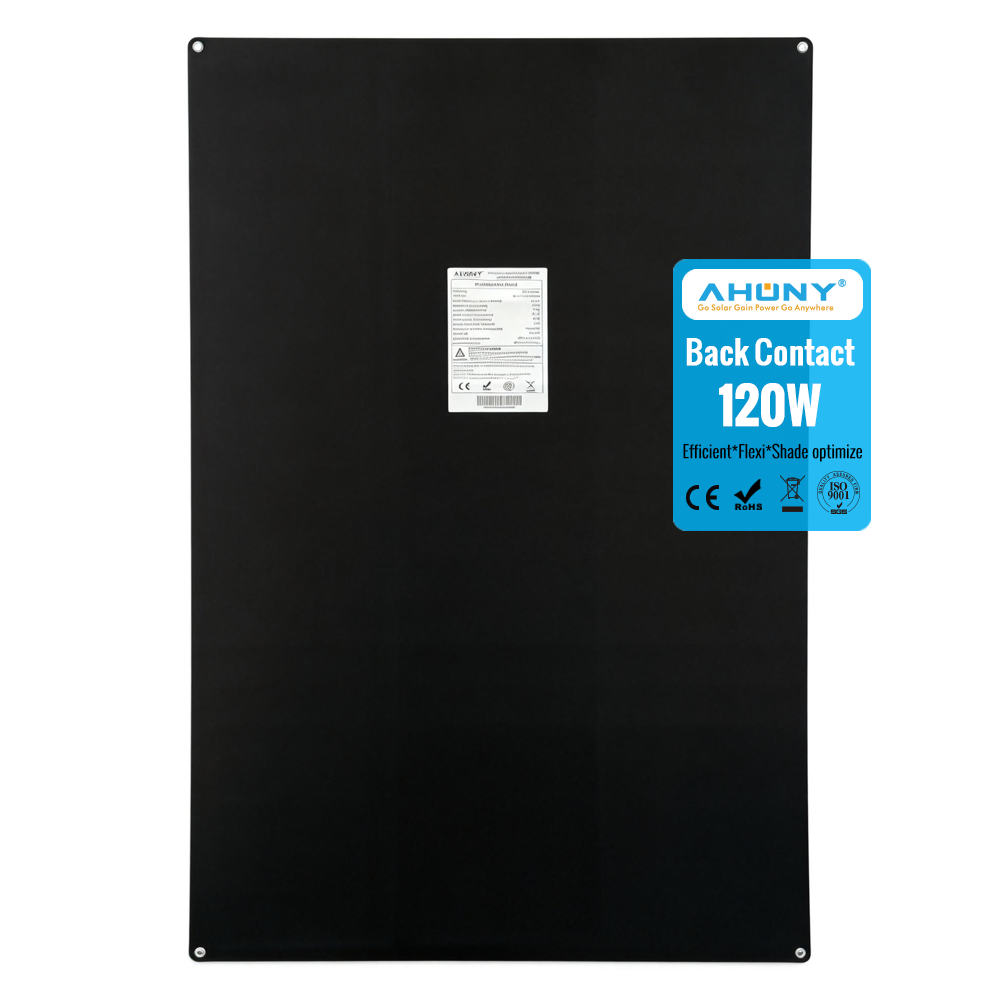

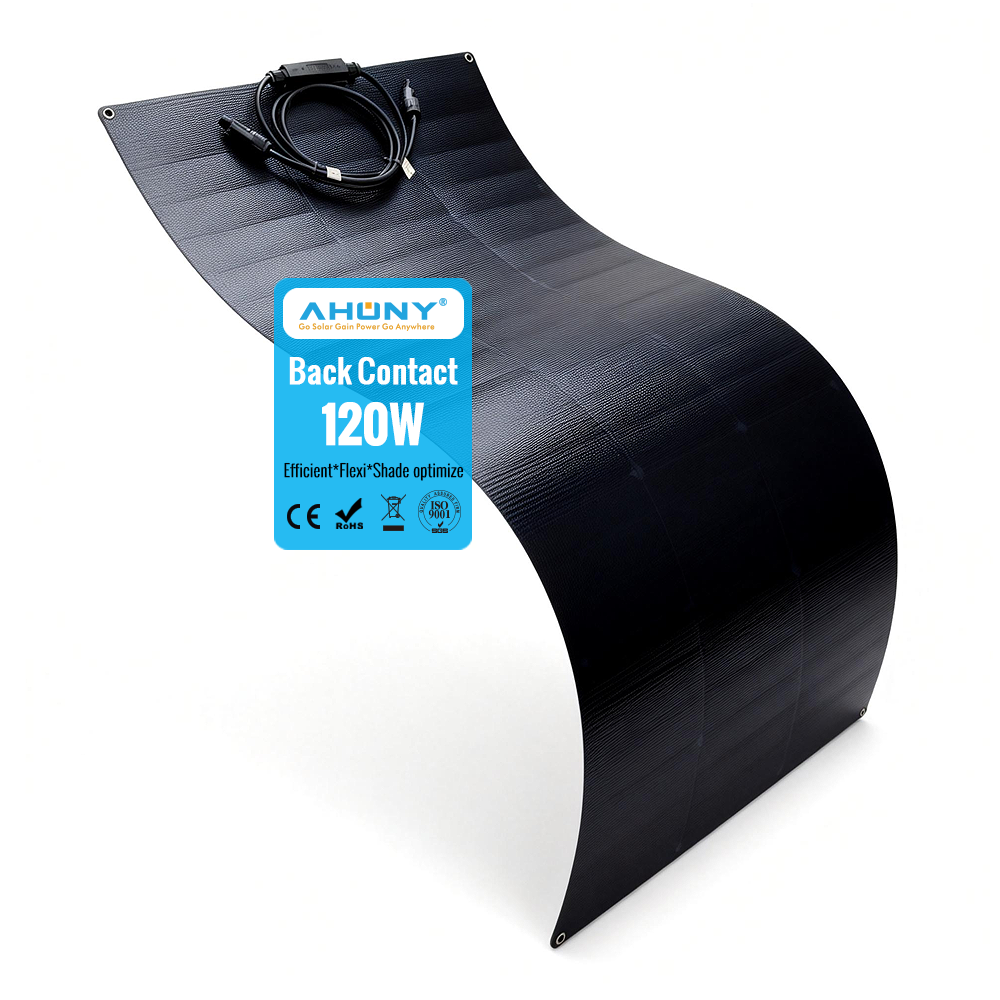

Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S120W |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 120 |
| Cell Efficiency | 25.80% |
| Size[mm] | 580*935*3 |
| Max Power Voltage Vmp[V] | 18.75 |
| Max Power Current Imp[A] | 6.40 |
| Open Circuit Voltage Voc[V] | 21.94 |
| Short Circuit Current Isc[A] | 6.78 |
| Net.Weight[kg] | 1.85 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Fuse Rating[V] | 25A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test |
| Maximum bend radius(θ) | 60° |
| Jbox | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 6,stainless steel 316 |
2.Product Introduction
AHONY is a direct manufacturer specializing in advanced thin-film and bendable solar technologies. Our 120W Flexible Monocrystalline Panel bridges the gap between high-efficiency power generation and mechanical flexibility. Designed specifically for complex mounting surfaces, this panel is engineered to adhere seamlessly to RV roofs, yacht decks, non-load-bearing canopies, and smart city infrastructure without the risk of cracking or delamination.
Product Philosophy:
We understand that traditional glass panels are too heavy and rigid for modern mobile applications, while amorphous thin-film panels lack efficiency. AHONY solves this problem by integrating high-performance monocrystalline cells into a lightweight, bendable, and waterproof polymer substrate. This is not a "stick-on" consumer product; it is an industrial-grade energy module built for long-term outdoor endurance.
2.Features and Key Advantages
Weight: Significantly lighter than standard glass/aluminum framed panels (Approx. 70% less weight).
Safety: Perfect for non-load-bearing roofs (campers, trailers) where structural stress is a concern.
Installation: Zero roof penetration required. Mounts via industrial adhesives/3M tape, eliminating leak risks common with screw-mounted systems.
Bendable Design: Minimum bending radius allows for installation on curved yacht decks, curved RV fronts, and cylindrical tanks.
Durability: Unlike rigid panels that crack under vibration, AHONY panels absorb shock and vibration during transit (off-road, marine waves).
Performance: Leverages premium A-grade monocrystalline silicon. Higher wattage per square foot compared to traditional thin-film copper tape panels.
Low-Light Performance: Excellent cloudy weather harvesting capability.
Sealing: Full lamination process ensures complete waterproofing. No water ingress, no corrosion.
Materials: UV-resistant outer layer prevents yellowing and degradation. Suitable for saltwater environments (boats) and desert heat.
IoT & Smart City: Slim profile integrates discreetly into street furniture, parking meters, and remote monitoring stations.
Customization (OEM/ODM): As manufacturers, AHONY offers custom sizes, wattages, connector types (MC4/Anderson), and laser etching for wholesale partners.
3.Benifits of choosing this flexible solar panel
High turnover product with lower shipping cubic volume (flat packaging) and fewer breakage claims.
No roof racking required on rv,caravan,trailer conversion; low profile reduces wind noise and improves fuel economy.
Saltwater corrosion resistant on boat,marine industry,yacht,catamaran,Non-slip surfaces.
Scalable solution for fence balcony or tensile structure integration.
Factory Direct Pricing – No middlemen, better margins for you;
Consistent Quality – Strictly tested HPBC cells & ETFE material;
Fast Lead Time – Ready stock for samples; efficient production for bulk orders;
Technical Support – Installation guides, datasheets, and after-sales service;
Global Shipping – Secure packaging for air and sea freight.
