eGo S145W
AHONY
BP107020011000118
580*1050*3mm

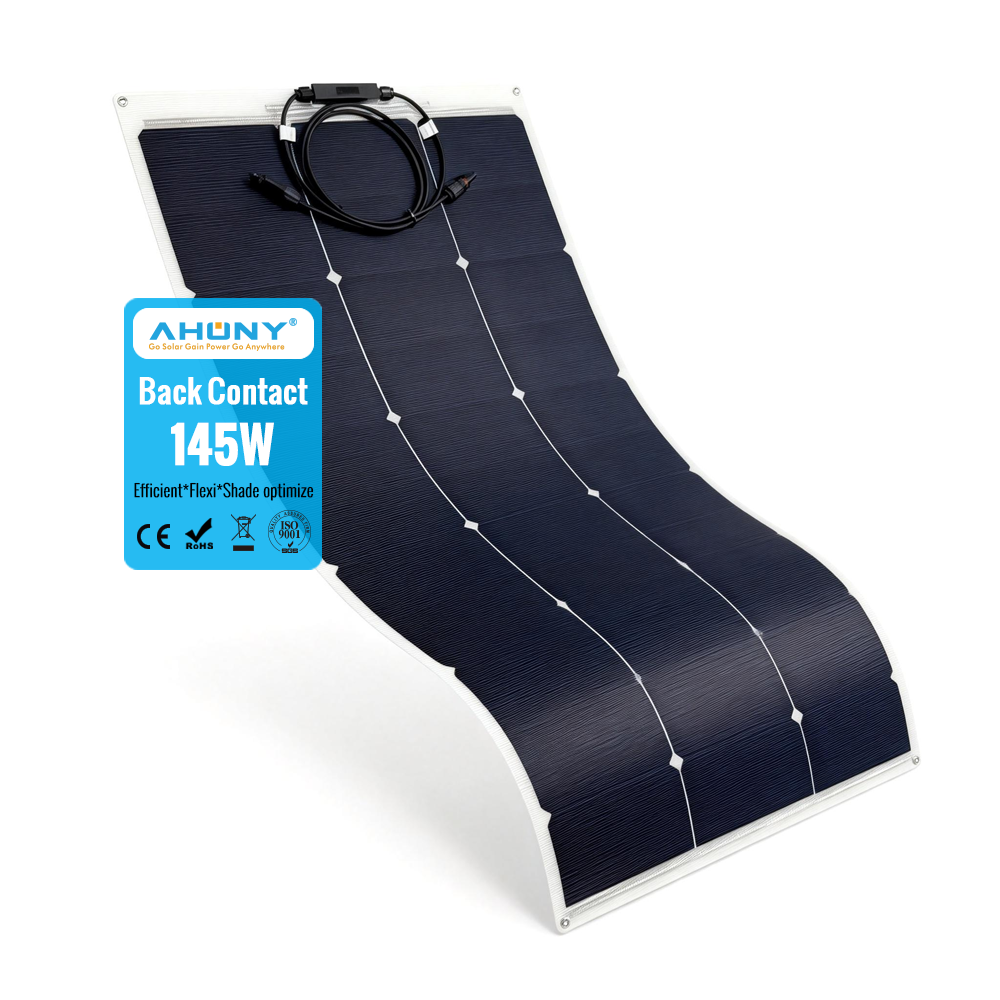

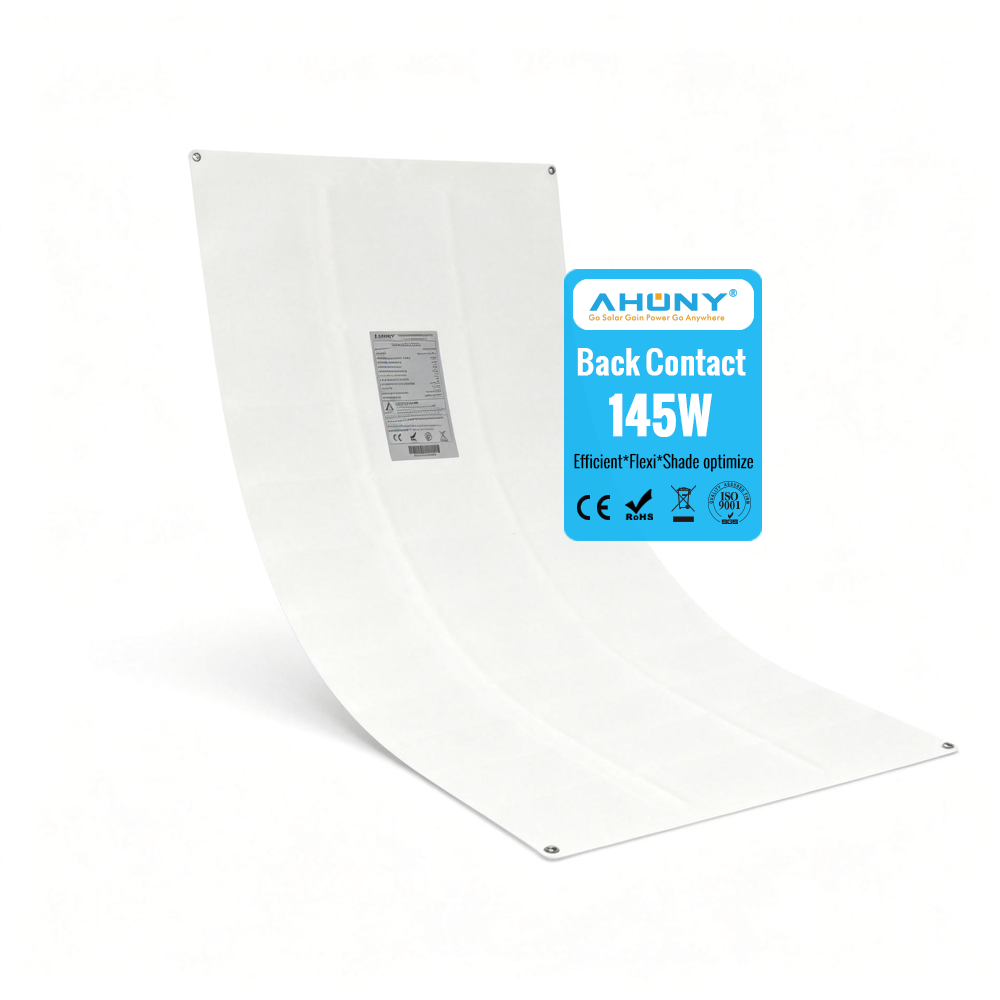

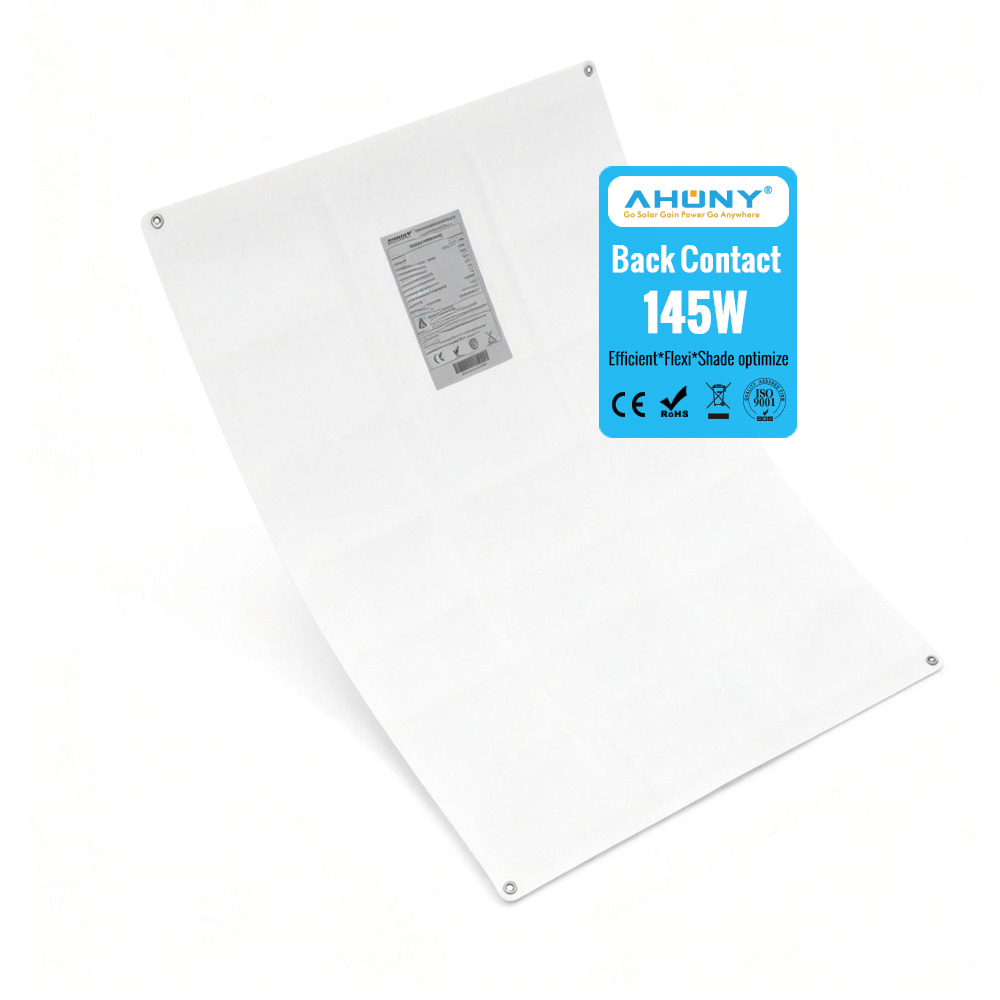

Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S145W |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 145 |
| Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% |
| Size[mm] | 580*1050*3 |
| Max Power Voltage Vmp[V] | 20.62 |
| Max Power Current Imp[A] | 7.04 |
| Open Circuit Voltage Voc[V] | 24.13 |
| Short Circuit Current Isc[A] | 7.46 |
| Net.Weight[kg] | 2.10 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Fuse Rating[V] | 25A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test |
| Maximum bend radius(θ) | 60° |
| Jbox | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 6,stainless steel 316 |
2.Who We Are
AHONY is a leading manufacturer specializing in next-generation HPBC (Hybrid Passivated Back Contact) Bifacial Solar Technology. We bridge the gap between rigid industrial efficiency and lightweight flexibility, providing customized energy solutions for the new age of mobility and smart infrastructure.
What We Offer:
We present the 145W HPBC Bifacial Narrow Bendable PV Module—a breakthrough in the "N Series" flexible solar line. Capable of scaling from a compact 12V 145W setup up to a powerful 550W system, this panel redefines where solar can go. It is specifically engineered for high-value-added distributors and solution integrators in the RV, maritime, EPC, Smart City, and IoT sectors.
2.Features and Key Advantages
Unlike traditional PERC or even standard TOPCon flexible panels, AHONY utilizes HPBC (Back Contact) technology.
Zero Gridline Shadowing: All electrical contacts are on the rear, maximizing light absorption on the front (+2-3% absolute efficiency gain).
Elegant Appearance: Pure black, seamless surface—perfect for high-end RV and yacht aesthetics.
High Heat Dissipation: Lower operating temperature, ensuring stable power generation in summer.
Dual-Side Power Generation: Rear-side glass captures reflected light from water (boats) or white roofs (RV/caravans), boosting total yield by 10-25%.
Extreme Flexibility: "Narrow bendable" engineering allows for installation on cylindrical boat hatches, curved camper tops, and tube-style street light poles—a necessity for IoT and Smart City projects.
No Mounting Rails Required: Adheres directly to TPO, membrane, or aluminum roofs without penetrating the substrate. Zero risk of voiding roof warranties.
Weight Reduction: 70% lighter than standard glass-glass bifacial panels. Ideal for non-load-bearing industrial roofs and mobile applications.
Plug & Play for 12V Systems: Perfect match for RV house batteries and marine trolling motor banks.
High Voltage Scalability: Daisy chain up to 550W+ arrays for whole-home off-grid backup.
Compatibility: Fully compatible with Victron, EPEVER, and major MPPT controllers.
As a manufacturer, we do not just sell panels; we sell solutions.
Custom Size & Wattage: We adjust the busbar layout and laminate dimensions to fit your unique product design (Refrigerated trucks, EV charging trailers, Pop-up campers).
Branding & Connectors: We offer custom junction box placement, cable length, and silent MC4/Evo2 connectors.
MOQ Flexibility: Competitive pricing for wholesale bulk orders with dedicated stock for ongoing project supply.
3.Benifits of choosing this flexible solar panel
High turnover product with lower shipping cubic volume (flat packaging) and fewer breakage claims.
No roof racking required on rv,caravan,trailer conversion; low profile reduces wind noise and improves fuel economy;Bend to fit the aerodynamic curve of the modern camper.
Saltwater corrosion resistant on boat,marine industry,yacht,catamaran,Non-slip surfaces;bifacial gain from deck reflection.
Scalable solution for fence balcony or tensile structure integration.
Lightweight retrofitting for industrial warehouses,experience design,R&D etc engineering work for engineering companies.
Powering traffic sensors and 5G nodes on curved poles,offer innovated and advanced products for Smart City & IoT.
Valuable design,customize solar panels,size,voltage to help you better optimize your portable power station ecosystem,or battery storage solutions,like camera system,marine solar system,MPPT charging system,remote power station,mobile paying etc.
Factory Direct Pricing – No middlemen, better margins for you;
Consistent Quality – Strictly tested HPBC cells & ETFE material;
Fast Lead Time – Ready stock for samples; efficient production for bulk orders;
Technical Support – Installation guides, datasheets, and after-sales service;
Global Shipping – Secure packaging for air and sea freight.
