eGo S100W
AHONY
BP107020010800115
400*1150*3mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
Technical parameters
| Model No. | eGo S50W | eGo S100W | eGo S145W | eGo S150W | eGo S180W | eGo S200W | eGo S205W | eGo S250W | eGo S300W |
| Product Name | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel |
| Maximum Power[Wp] | 50 | 100 | 145 | 150 | 180 | 200 | 205 | 250 | 300 |
| Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 26.00% | 25.80% | 27.00% |
| Size[mm] | 405*600*3 | 400*1150*3 | 580*1050*3 | 580*1150*3 | 580*1335*3 | 760*1165*3 | 760*1165*3 | 760*1330*3 | 760*1670*3 |
| Max Power Voltage Vmp[V] | 22.50 | 31.25 | 20.62 | 22.50 | 26.25 | 28.12 | 28.12 | 35.00 | 40 |
| Max Power Current Imp[A] | 2.23 | 3.20 | 7.04 | 6.67 | 6.86 | 7.11 | 7.29 | 7.14 | 7.5 |
| Open Circuit Voltage Voc[V] | 26.33 | 36.56 | 24.13 | 26.33 | 30.71 | 32.90 | 32.90 | 40.95 | 46.8 |
| Short Circuit Current Isc[A] | 2.36 | 3.39 | 7.46 | 7.07 | 7.27 | 7.54 | 7.73 | 7.57 | 7.95 |
| Net.Weight[kg] | 0.90 | 1.60 | 2.10 | 2.20 | 2.60 | 2.90 | 2.90 | 3.7 | 4.5 |
| Power tolerance[%] | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Maximum Fuse Rating[V] | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A |
| Flame retardancy | UL94 VTM-0 | UL94 VTM-0 | |||||||
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | |||||||
| Maximum bend radius(θ) | 60° | 60° | |||||||
| Jbox | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 2.5m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 4,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 8,stainless steel 316 | 8,stainless steel 316 |
| Warranty[Years] | 2 | 2 | |||||||
| Selling point | 1.very flexible,ultralight. | ||||||||
| 2.Leading brand back contact cell,high efficiency up to 27.4%,aesthetics. | |||||||||
| 3.superior shade tolerant performance,each solar cell have a bypass diode,little power decrease when cover. | |||||||||
| 4.high temp resistance,stable performance under high temperature,easy to cool off,install on all surface like rv,van rack,boat,house,villa roof etc. | |||||||||
2.100w back contact narrow slim flexible solar panel introduction
Engineered for high-performance off-grid applications, our 100W Back Contact (BC) Flexible Solar Panel combines cutting-edge monocrystalline technology with a sleek, full-black aesthetic. Designed specifically for the demands of RV, marine, camper van, and trailer installations, this panel delivers grid-grade efficiency in an ultra-lightweight, durable form.The panel is narrow design for long strip area using like fence,bimini surface.It's slim and very resilent.
3.Why Choose AHONY and Our 100W Flexible Panel?
As a specialized manufacturer, we bridge the gap between rigid efficiency and flexible convenience.
AHONY has strong R&D,designing,automatically producing and advanced producing,quality control and management,all these factors insure stable and better quality as time goes.
This panel utilizes advanced Back Contact (BC) cell technology, removing busbars from the front surface to maximize light absorption and achieve higher wattage per square foot—perfect for limited roof space.
Certification:
AHONY accept OEM,ODM to help clients to develop new panels for application,in side or 3rd party certifying and test.
4.Key Features and Selling Points:
1)High-Efficiency Back Contact Cells:

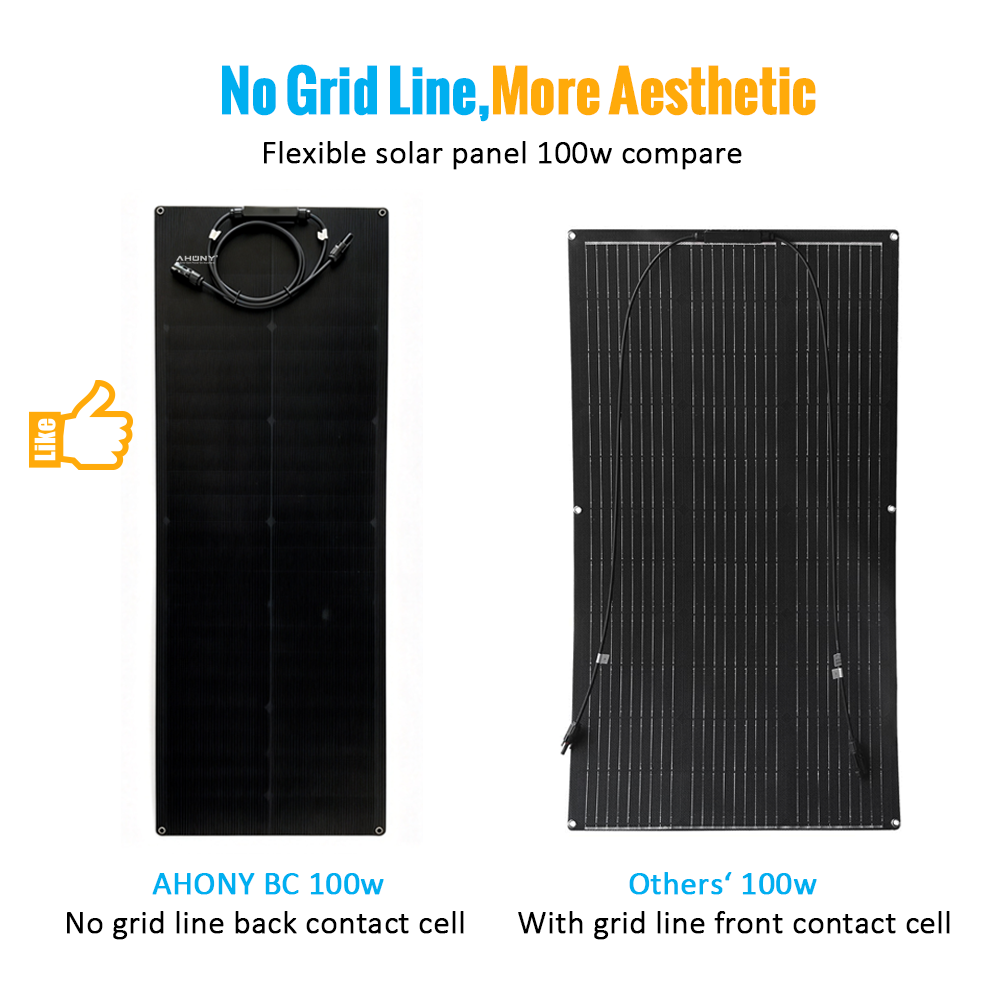

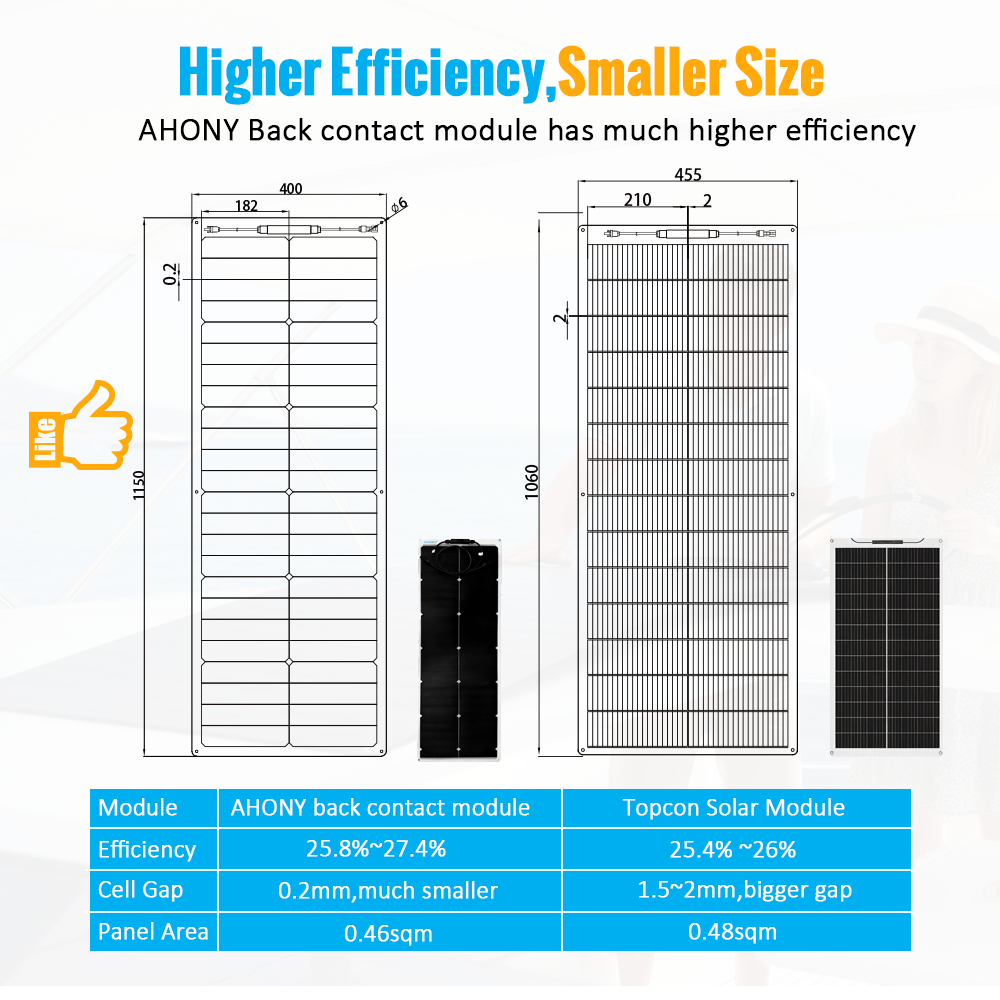

Unlike conventional flexible panels, our Back Contact design eliminates front-side grid lines. This increases active power generation area, achieving up to 27.4% conversion efficiency while maintaining a seamless all-black appearance.
2)Premium ETFE Lamination:
Engineered for longevity. The ETFE (Ethylene Tetrafluoroethylene) surface offers superior UV resistance and anti-yellowing properties. It is highly corrosion-resistant and withstands harsh marine and roadside environments far better than standard PET materials.
3)Extreme Flexibility & Lightweight:
Ultra-thin and lightweight design (70% lighter than standard glass panels). It bends to a radius of up to 60 degrees, conforming perfectly to curved RV roofs or boat decks without adding significant weight load.
4)Durability & Safety:
IP68-rated junction box and waterproof lamination ensure reliable performance in rain, high humidity, and dust. The panel is engineered to resist impact from hail and vibration during transit.
5)Easy Integration:
Pre-wired with industry-standard MC4 connectors for plug-and-play compatibility with existing off-grid systems, controllers, and lithium battery banks.
5.Target Applications:
RV & Camper Van Conversions
Sailboats & Powerboats
Utility Trailers & Truck Caps
Remote Off-Grid Power Stations
Engineering Retrofit Projects
6.Manufacturer Advantage:
We are not just a supplier; we are the source. By purchasing directly from our production line, you secure consistent quality, strict factory pricing, and reliable MOQ fulfillment for large-scale engineering projects.
AHONY serve a lot of RV manufacturers, solar distributors, and marine outfitters,wecome to consult our company and the specific products.
Technical parameters
| Model No. | eGo S50W | eGo S100W | eGo S145W | eGo S150W | eGo S180W | eGo S200W | eGo S205W | eGo S250W | eGo S300W |
| Product Name | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel |
| Maximum Power[Wp] | 50 | 100 | 145 | 150 | 180 | 200 | 205 | 250 | 300 |
| Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 26.00% | 25.80% | 27.00% |
| Size[mm] | 405*600*3 | 400*1150*3 | 580*1050*3 | 580*1150*3 | 580*1335*3 | 760*1165*3 | 760*1165*3 | 760*1330*3 | 760*1670*3 |
| Max Power Voltage Vmp[V] | 22.50 | 31.25 | 20.62 | 22.50 | 26.25 | 28.12 | 28.12 | 35.00 | 40 |
| Max Power Current Imp[A] | 2.23 | 3.20 | 7.04 | 6.67 | 6.86 | 7.11 | 7.29 | 7.14 | 7.5 |
| Open Circuit Voltage Voc[V] | 26.33 | 36.56 | 24.13 | 26.33 | 30.71 | 32.90 | 32.90 | 40.95 | 46.8 |
| Short Circuit Current Isc[A] | 2.36 | 3.39 | 7.46 | 7.07 | 7.27 | 7.54 | 7.73 | 7.57 | 7.95 |
| Net.Weight[kg] | 0.90 | 1.60 | 2.10 | 2.20 | 2.60 | 2.90 | 2.90 | 3.7 | 4.5 |
| Power tolerance[%] | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Maximum Fuse Rating[V] | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A |
| Flame retardancy | UL94 VTM-0 | UL94 VTM-0 | |||||||
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | |||||||
| Maximum bend radius(θ) | 60° | 60° | |||||||
| Jbox | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 2.5m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 4,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 8,stainless steel 316 | 8,stainless steel 316 |
| Warranty[Years] | 2 | 2 | |||||||
| Selling point | 1.very flexible,ultralight. | ||||||||
| 2.Leading brand back contact cell,high efficiency up to 27.4%,aesthetics. | |||||||||
| 3.superior shade tolerant performance,each solar cell have a bypass diode,little power decrease when cover. | |||||||||
| 4.high temp resistance,stable performance under high temperature,easy to cool off,install on all surface like rv,van rack,boat,house,villa roof etc. | |||||||||
2.100w back contact narrow slim flexible solar panel introduction
Engineered for high-performance off-grid applications, our 100W Back Contact (BC) Flexible Solar Panel combines cutting-edge monocrystalline technology with a sleek, full-black aesthetic. Designed specifically for the demands of RV, marine, camper van, and trailer installations, this panel delivers grid-grade efficiency in an ultra-lightweight, durable form.The panel is narrow design for long strip area using like fence,bimini surface.It's slim and very resilent.
3.Why Choose AHONY and Our 100W Flexible Panel?
As a specialized manufacturer, we bridge the gap between rigid efficiency and flexible convenience.
AHONY has strong R&D,designing,automatically producing and advanced producing,quality control and management,all these factors insure stable and better quality as time goes.
This panel utilizes advanced Back Contact (BC) cell technology, removing busbars from the front surface to maximize light absorption and achieve higher wattage per square foot—perfect for limited roof space.
Certification:
AHONY accept OEM,ODM to help clients to develop new panels for application,in side or 3rd party certifying and test.
4.Key Features and Selling Points:
1)High-Efficiency Back Contact Cells:
Unlike conventional flexible panels, our Back Contact design eliminates front-side grid lines. This increases active power generation area, achieving up to 27.4% conversion efficiency while maintaining a seamless all-black appearance.
2)Premium ETFE Lamination:
Engineered for longevity. The ETFE (Ethylene Tetrafluoroethylene) surface offers superior UV resistance and anti-yellowing properties. It is highly corrosion-resistant and withstands harsh marine and roadside environments far better than standard PET materials.
3)Extreme Flexibility & Lightweight:
Ultra-thin and lightweight design (70% lighter than standard glass panels). It bends to a radius of up to 60 degrees, conforming perfectly to curved RV roofs or boat decks without adding significant weight load.
4)Durability & Safety:
IP68-rated junction box and waterproof lamination ensure reliable performance in rain, high humidity, and dust. The panel is engineered to resist impact from hail and vibration during transit.
5)Easy Integration:
Pre-wired with industry-standard MC4 connectors for plug-and-play compatibility with existing off-grid systems, controllers, and lithium battery banks.
5.Target Applications:
RV & Camper Van Conversions
Sailboats & Powerboats
Utility Trailers & Truck Caps
Remote Off-Grid Power Stations
Engineering Retrofit Projects
6.Manufacturer Advantage:
We are not just a supplier; we are the source. By purchasing directly from our production line, you secure consistent quality, strict factory pricing, and reliable MOQ fulfillment for large-scale engineering projects.
AHONY serve a lot of RV manufacturers, solar distributors, and marine outfitters,wecome to consult our company and the specific products.
