eGo S50W
AHONY
BP107020007200097
400*600*3mm
Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S50W | eGo S100W | eGo S145W | eGo S150W | eGo S180W | eGo S200W | eGo S205W | eGo S250W | eGo S300W |
| Product Name | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel | Semi flexible solar panel |
| Maximum Power[Wp] | 50 | 100 | 145 | 150 | 180 | 200 | 205 | 250 | 300 |
| Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 25.80% | 26.00% | 25.80% | 27.00% |
| Size[mm] | 405*600*3 | 400*1150*3 | 580*1050*3 | 580*1150*3 | 580*1335*3 | 760*1165*3 | 760*1165*3 | 760*1330*3 | 760*1670*3 |
| Max Power Voltage Vmp[V] | 22.50 | 31.25 | 20.62 | 22.50 | 26.25 | 28.12 | 28.12 | 35.00 | 40 |
| Max Power Current Imp[A] | 2.23 | 3.20 | 7.04 | 6.67 | 6.86 | 7.11 | 7.29 | 7.14 | 7.5 |
| Open Circuit Voltage Voc[V] | 26.33 | 36.56 | 24.13 | 26.33 | 30.71 | 32.90 | 32.90 | 40.95 | 46.8 |
| Short Circuit Current Isc[A] | 2.36 | 3.39 | 7.46 | 7.07 | 7.27 | 7.54 | 7.73 | 7.57 | 7.95 |
| Net.Weight[kg] | 0.90 | 1.60 | 2.10 | 2.20 | 2.60 | 2.90 | 2.90 | 3.7 | 4.5 |
| Power tolerance[%] | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% | 0 to +3% |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Maximum Fuse Rating[V] | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A |
| Flame retardancy | UL94 VTM-0 | UL94 VTM-0 | |||||||
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | CE,ROHS,SGS,IEC salt mist,High temp humidity test | |||||||
| Maximum bend radius(θ) | 60° | 60° | |||||||
| Jbox | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 2.5m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 4,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 6,stainless steel 316 | 8,stainless steel 316 | 8,stainless steel 316 |
| Warranty[Years] | 2 | 2 | |||||||
| Selling point | 1.very flexible,ultralight. | ||||||||
| 2.Leading brand back contact cell,high efficiency up to 27.4%,aesthetics. | |||||||||
| 3.superior shade tolerant performance,each solar cell have a bypass diode,little power decrease when cover. | |||||||||
| 4.high temp resistance,stable performance under high temperature,easy to cool off,install on all surface like rv,van rack,boat,house,villa roof etc. | |||||||||
2. Product Introduction – Back Contact Cell Flexible Solar Panel

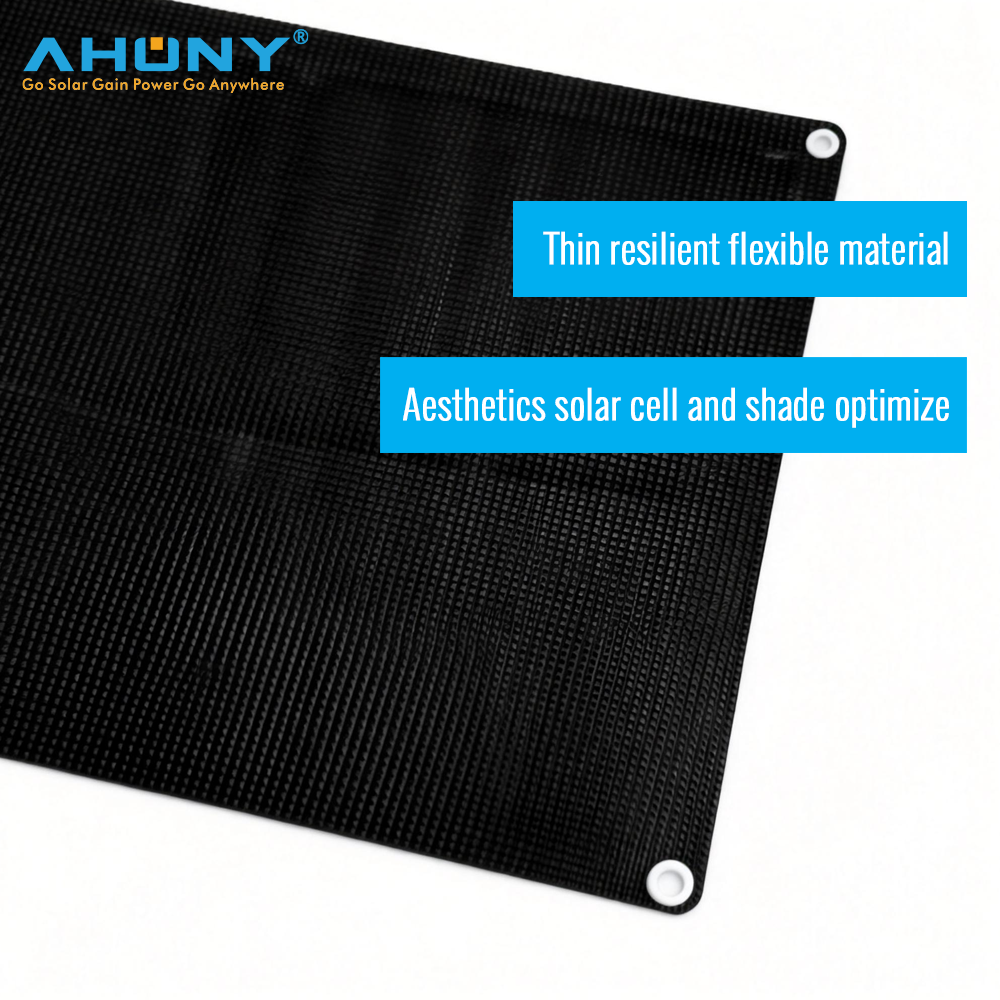

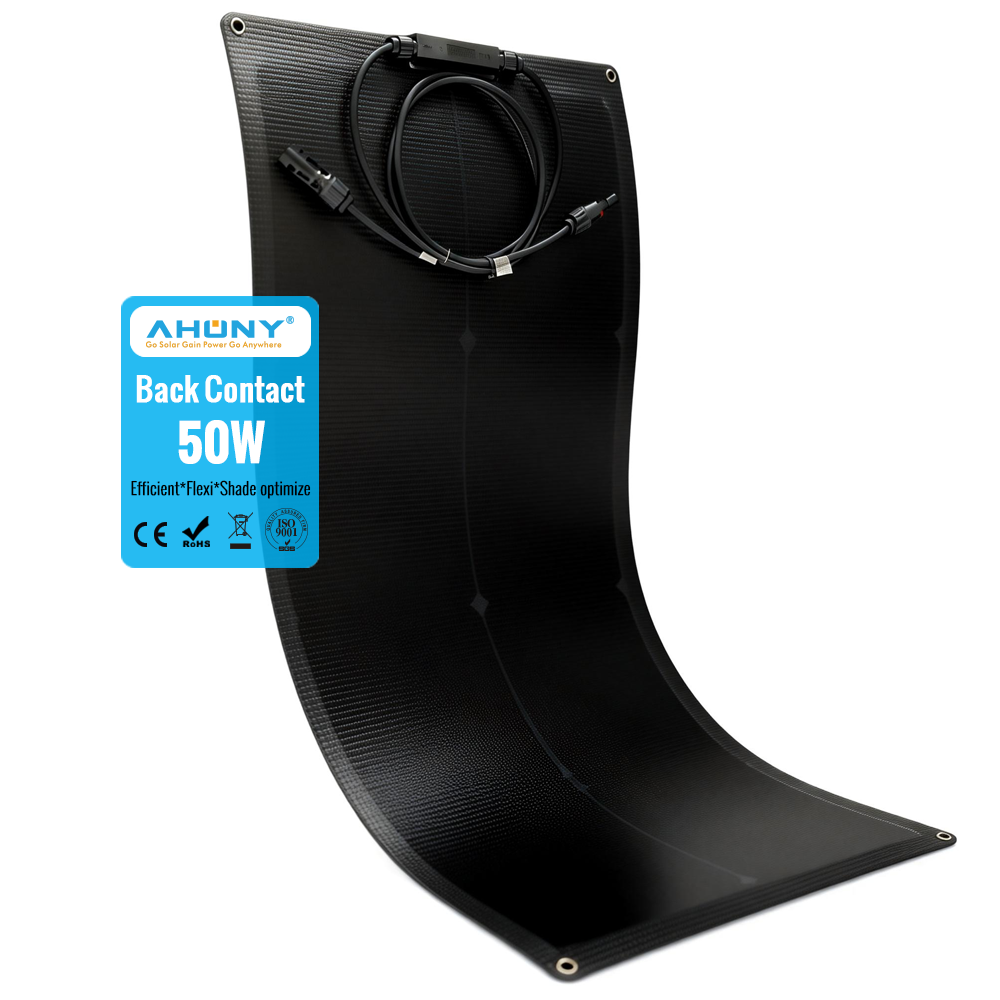

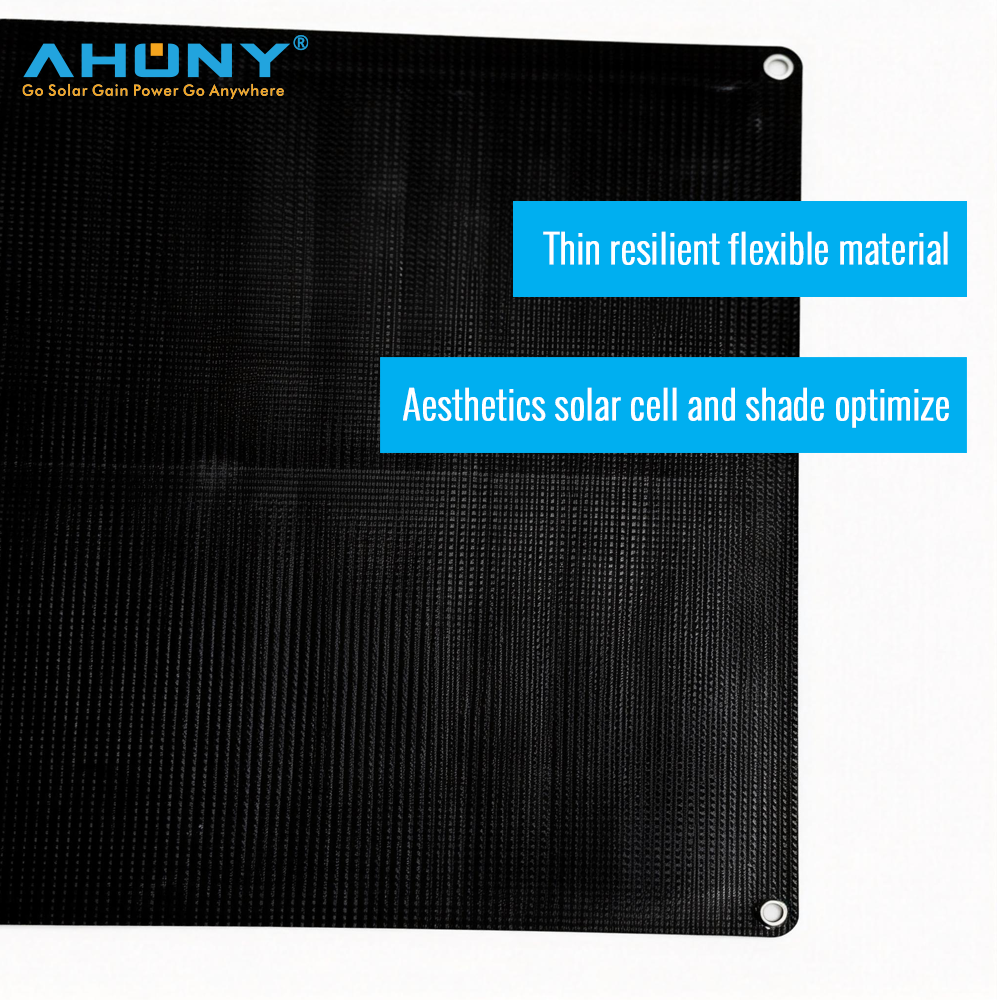

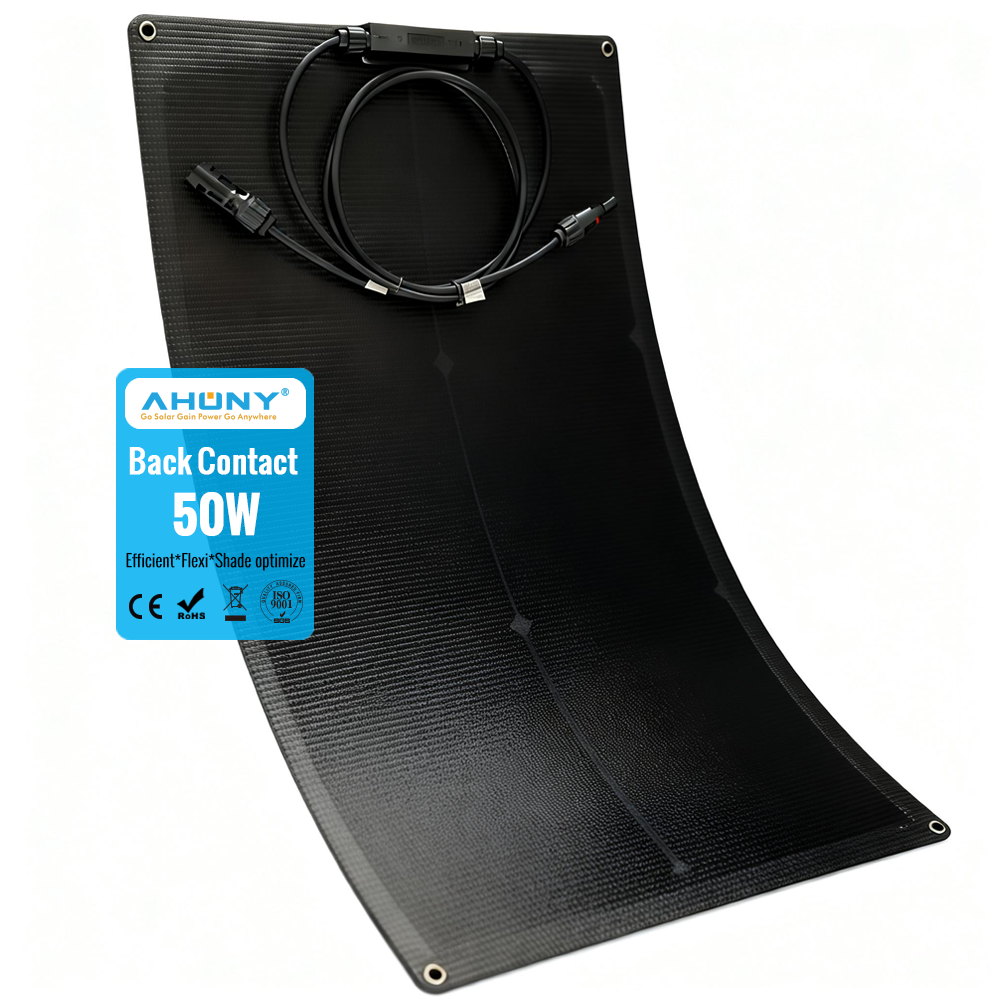

AHONY 50w full black Back Contact Cell Flexible Solar Panel represents a cutting-edge advancement in photovoltaic technology. Unlike traditional solar cells, which have busbars and gridlines on the front surface, Back Contact (BC) cells relocate all electrical contacts to the rear side of the cell. This design eliminates front-side shading, significantly increasing light absorption and overall efficiency. When combined with lightweight, flexible materials, these panels are not only highly efficient but also bendable, making them ideal for a wide range of curved or space-constrained surfaces.
3. Key Advantages
Higher Efficiency
With no metal gridlines on the front surface, the cell absorbs more sunlight, leading to superior energy conversion efficiency.
Aesthetic Appearance
The uniform all-black look without visible busbars offers a sleek and modern design, ideal for high-end or visually sensitive applications.
Flexibility & Lightweight
Manufactured using advanced thin-film or polymer substrates, these panels are lightweight and can bend to fit curved surfaces without performance loss.
Improved Reliability
Reduced micro-cracks and better durability due to the elimination of front-side soldering and ribbon interconnections.
Better Low-Light Performance
Enhanced sensitivity in low-light conditions ensures consistent power output even in shaded or cloudy environments.
3. Specific Applications
Building-Integrated Photovoltaics (BIPV)
Ideal for curved rooftops, facades, and architectural structures where both form and function matter.
Automotive & Marine

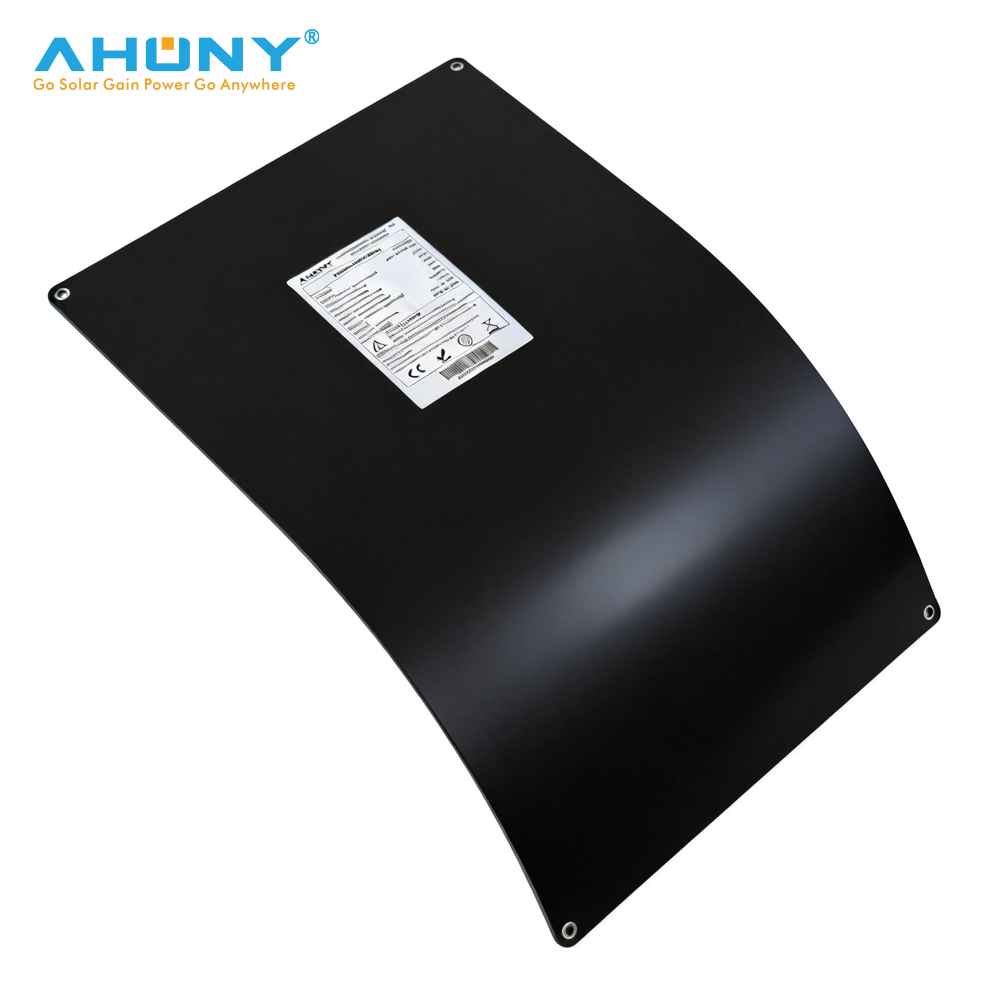

Perfect for integration into car roofs, RVs, boats, and yachts where lightweight and conformable designs are essential.
Portable Energy Solutions
Used in foldable solar chargers, backpacks, tents, and military field equipment for on-the-go power generation.
Aerospace & Drones
Lightweight and high-efficiency characteristics make them suitable for drones, high-altitude pseudo-satellites, and space applications.
Industrial IoT & Remote Monitoring
Powering sensors, cameras, and communication devices in remote or off-grid locations.
