Longi Back Contact BC Cell solar Module 235w 240w IEC Certified full black solar panel Placa Solar Solar Energie System Balkonkraft Paneles Solares Para Jardines

1.glass solar panel longi aesthetics back contact cell module,leading brand cell and high efficiency;
2.anodized aluminium frame thick durable and equip with industrial standard holes;
3.TUV certified raw material,stable quality and longivity;
4.CE ROHS IEC61215 IEC61730 certified.

  • eRigid M240W

  • AHONY

  • 770*1355*30mm

Availability:
Inquire

AHONY eRigid series glass solar module 240w

-Direct solar panel manufacturer,one of the most professional full black solar panel vendor Leading brand Longi A grade mono solar cell,plus power output paneles solares.
-Easy Installation :pre-drilled mounting holes on the frame allow for easy and quick install.
-Suitable for all Temperatures:This solar panel can work in a wide temperature range of -40℉~185℉. It can adapt to different climates and environments without affecting its performance.
-Sturdy:Unique technology makes the module beautiful and solid, wind and snow resistant, Corrosion-resistant aluminum frame for extended outdoor use.
-Application:can charge 12V batteries with the power of the
sun ,It's suitable for a range of scenarios including RVs, cars, boats, fences, security cameras, greenhouses, lawnmowers,
motorcycles, jet skis, trailers, homes, and more.


FEATURES AT A GLANCE

1.High efficiency A grade solar cell
AHONY uses leading brand Longi A grade HPBC solar cell solar panel produce more power at the same size.Better weak light performance and no PID.
2.CE ROHS LVD EMC certification
This 240w solar panel got CE ROHS certification and tested under LVD EMC Humidity and damp test,IEC61215 61730 according to European standard,insure you good quality and importing easily.Our factory can help with other certification,offer samples to test at 3rd lab.
3.Durable lifespan anodized aluminium frame
Totally new and durable,thick high density anodized aluminium frame,strong and oxidation free,protect the solar cells,module,glass well.
4.factory direct producing,accept cusomize logo,size,power wattage and design with AHONY engineers.


PRODUCT SPECIFICATIONS

No
Model No.
eRigid M235W
eRigid M240W
1
Product Name
mono solar panel 240w 12v 18v panneau solaire photovoltaic pannel watt pv cable power off grid solar energy system buy for home panel solar doble vidrio 240w
2
Maximum Power[Wp]
235w
240w
3
Solar Cell
A grade mono Longi back contact solar cell
4
Cell Efficiency
25.8%
26.0%
5
Cell array
182*91.75,1/2
182*91.75,1/2
6
Size[mm]
770*1355*30
770*1355*30
8
Max Power Voltage Vmp[V]
33.6
33.6
9
Max Power Current Imp[A]
7.0
7.15
10
Open Circuit Voltage Voc[V]
39.31
39.31
11
Short Circuit Current Isc[A]
7.42
7.57
12
Net.Weight[kg]
12.0
12.0
13
Power tolerance[%]
0 to +3%
-3% to +3%
14
NOCT[℃]
45±2
45±2
15
Certification
IEC61215 61730 CE ROHS
IEC61215 61730 CE ROHS
16
Cable and connector
MC 4 connector TUV certified
17
Standard package
2pcs/carton,plywood pallet

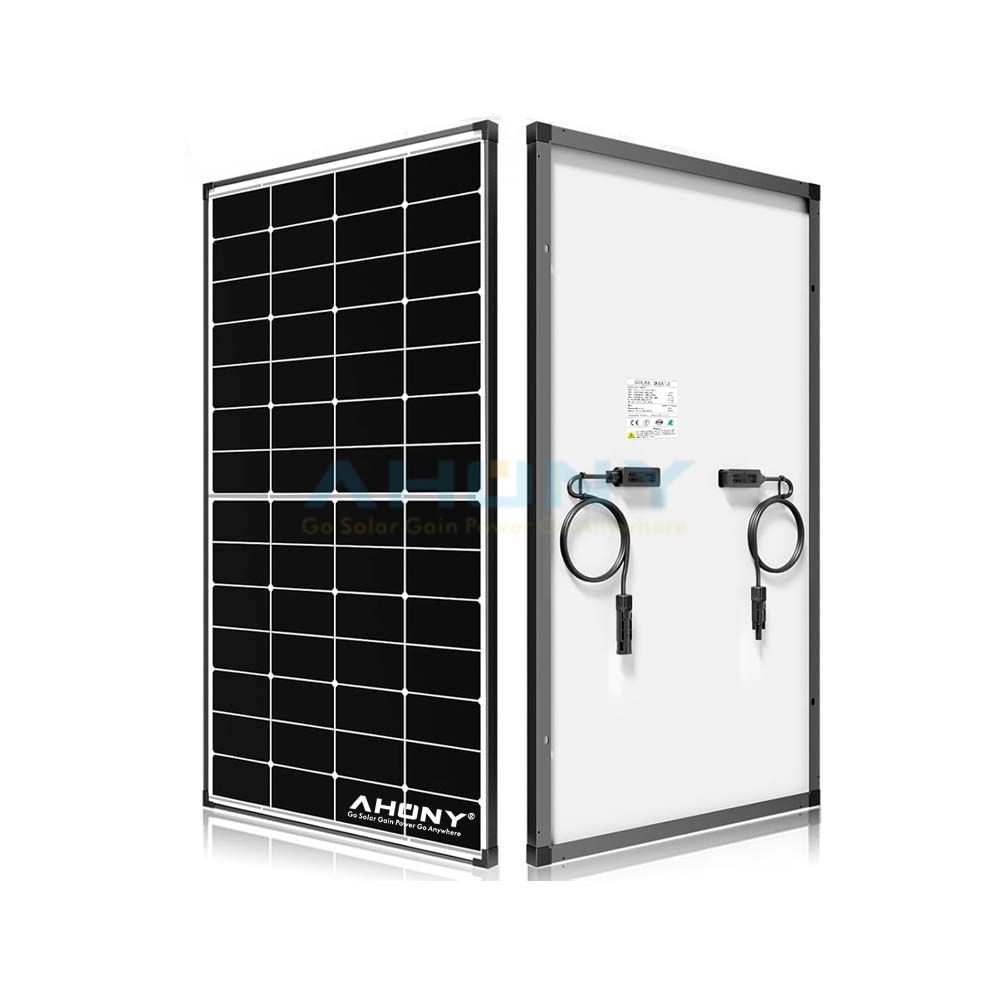

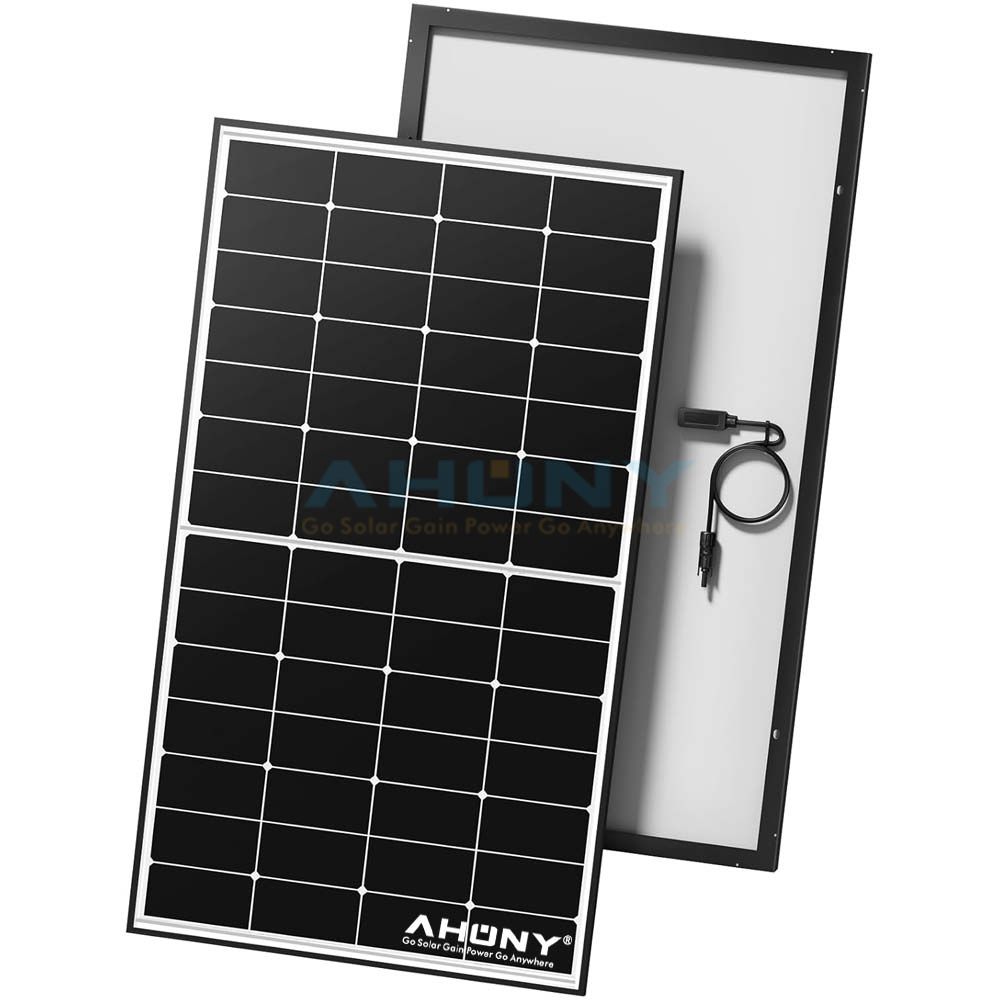

235w 240w glass solar panel
