eGo S100W
AHONY
BP107020010800114
400*1150*3mm

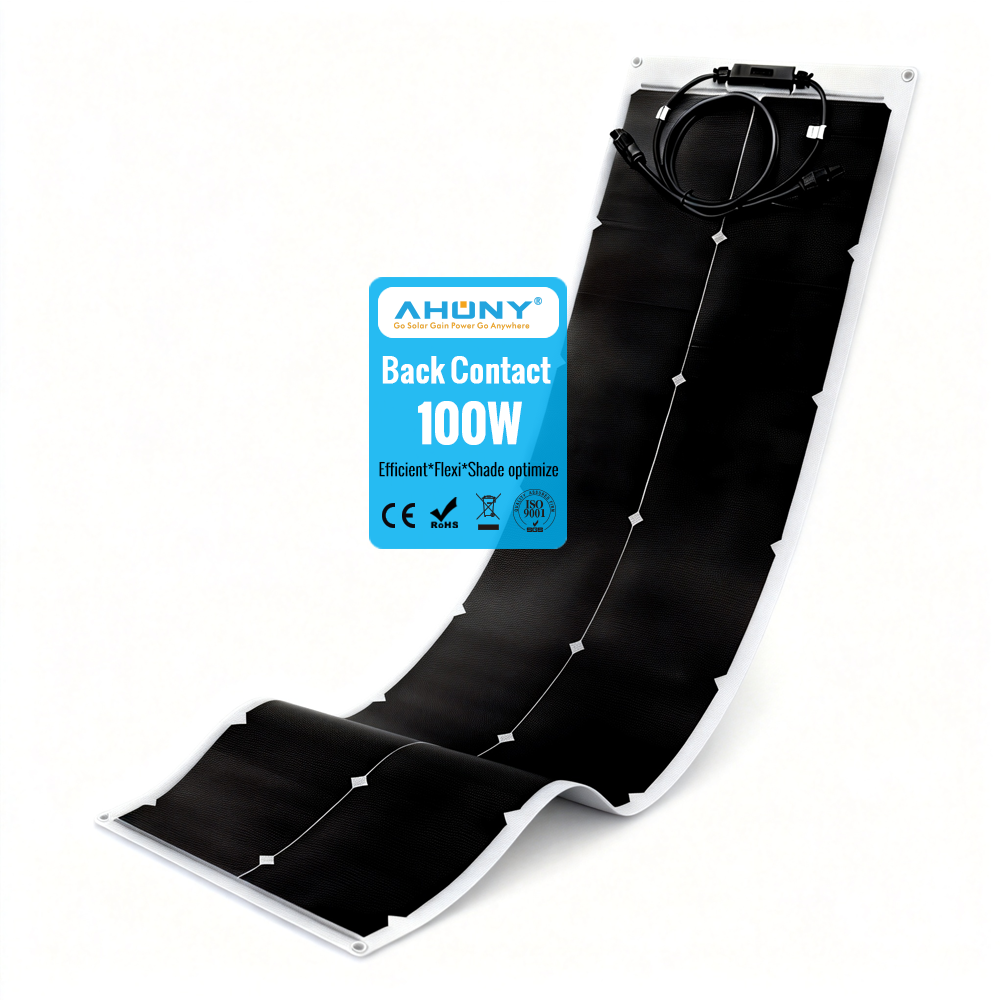

Boat RV Camper Car Roof Balcony Motorhome Golf Cart Camping High Efficient Lightweight Thin Film Walkable Bendable PV Module Kit System
25.8% to 27.4%
1.Technical parameters
| Model No. | eGo S100W |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 100 |
| Solar Cell | Back Contact Solar Cell |
| Cell Efficiency | 25.80% |
| Size[mm] | 400*1150*3 |
| Max Power Voltage Vmp[V] | 31.25 |
| Max Power Current Imp[A] | 3.20 |
| Open Circuit Voltage Voc[V] | 36.56 |
| Short Circuit Current Isc[A] | 3.39 |
| Net.Weight[kg] | 1.60 |
| Power tolerance[%] | 0 to +3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -0.26 |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Fuse Rating[V] | 25A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC salt mist,High temp humidity test |
| Maximum bend radius(θ) | 60° |
| Jbox | waterproof Jbox IP67 XC502 |
| Cables and Connectors | 0.9m 4m㎡+MC4 |
| Holes and eyelets[pcs] | 6,stainless steel 316 |
2.Product Introduction
Advanced HPBC Technology & No Gridline Design: Adopting cutting-edge HPBC (Hybrid Passivated Back Contact) technology, AHONY moves all electrodes to the back of the panel, realizing a complete gridline-free front surface. This innovative design not only maximizes the light absorption area, significantly improving conversion efficiency and power generation stability even in low-light environments, but also creates a sleek, uniform and high-end appearance. It can seamlessly blend with the surfaces of Marine vessels, RVs, trailers and other carriers, greatly enhancing the aesthetic value and user experience for end customers.
Narrow Slim & Flexible, Perfect for Uneven Surfaces: Featured with a narrow and slim structure, the panel is designed to fit tight, limited or narrow installation spaces—solving the space constraint problem of many mobile and outdoor scenarios. With excellent flexibility, it can be slightly bent to closely fit uneven, curved or irregular surfaces (such as boat hulls, RV roofs, van bodies, trailer surfaces and various uneven outdoor engineering surfaces) without damaging internal cells, which is a key advantage that traditional rigid panels cannot match.
Standard 12V Photovoltaic Panel, Direct Battery Charging: Equipped with standard 12V output, the panel is perfectly matched with various battery charging systems, providing direct, efficient and stable power supply for Marine, RV, Van, Car and other mobile or off-grid devices. It eliminates the need for additional voltage conversion accessories in most application scenarios, simplifying the overall system configuration and reducing procurement and installation costs for engineering companies, retailers and end users.
Multi-Scene Adaptability, Covering High-Demand Markets: Specifically engineered for Marine, RV, Trailer, Boat Cabin, Van, Car and uneven surface applications, the panel covers a wide range of high-demand solar markets. Whether you are an engineering company undertaking outdoor off-grid power projects, a wholesaler distributing mobile solar accessories, a retailer catering to RV/marine/automotive enthusiasts, or a solution provider designing custom solar power systems, this product has strong market adaptability and huge sales potential to meet your diverse business needs.
Superior Durability, Adapt to Harsh Outdoor Environments: Manufactured by AHONY with premium raw materials and strict quality control standards, the panel boasts excellent water resistance, corrosion resistance, UV resistance and anti-vibration performance. It is specially adapted to harsh outdoor environments such as marine humidity, long-term outdoor exposure, and frequent vibration of mobile carriers (boats, RVs, trailers), maintaining stable power generation performance even in extreme weather, ensuring a long service life and reducing after-sales maintenance costs for our partners.
AHONY Direct Supply, Strong Competitive Advantages: As the direct manufacturer, AHONY offers competitive factory direct prices, cutting out intermediate distribution links to ensure sufficient profit margins for wholesalers and engineering companies. We provide professional technical support, flexible customization services (if needed) and perfect after-sales service to solve your worries in product procurement, application and after-sales. Cooperating with AHONY, you can obtain high-quality, cost-effective products and professional one-stop support, helping you reduce operational risks and enhance market competitiveness.
AHONY sincerely invites wholesalers, retailers, engineering companies and solar application solution providers from all over the world to establish long-term and stable cooperative partnerships. With our advanced HPBC technology, high-quality narrow slim flexible solar panels, competitive pricing and professional full-chain support, we will work together to tap into the growing market potential of mobile and off-grid solar power, achieve mutual benefit and win-win development, and create greater value together.
