| Model No. | eMobi F7w |

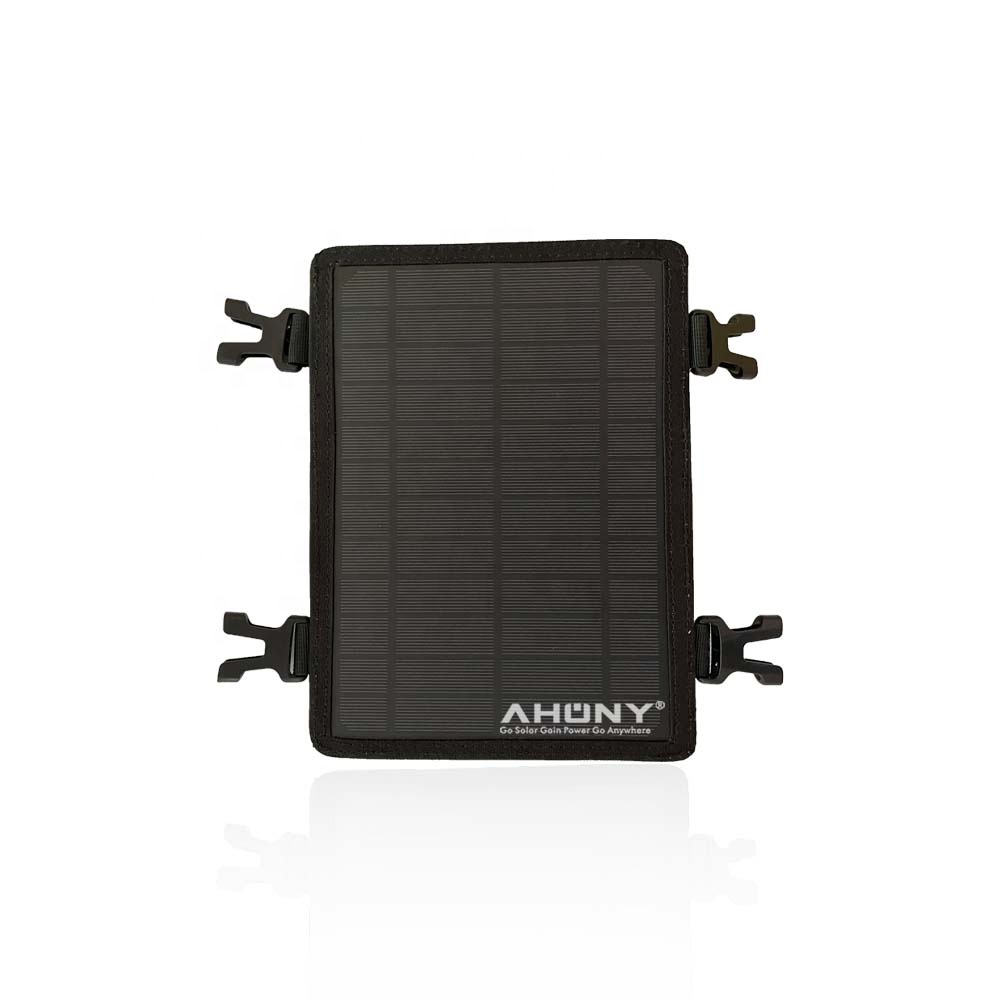

| Product Name | Solar panel for backpack |
| Maximum Power[Wp] | 7 |
| Solar Cell | A grade mono perc cell |
| Cell Array[Pcs] | 1*12 |
| Cell Efficiency | 23.00% |
| Size[mm] | 185*250*5 |
| Max Power Voltage Vmp[V] | 6.96 |
| Max Power Current Imp[A] | 1.01 |
| Open Circuit Voltage Voc[V] | 8.21 |
| Short Circuit Current Isc[A] | 1.09 |
| Net.Weight[kg] | 0.5 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.4 |
| Temperature Coefficient Voc[[%/K] | -2mV |
| Temperature Coefficient Isc[[%/K] | 0.037 |
| Maximum System Voltage[V] | 100 |
| Maximum Reverse Current[V] | 10 |
| Certification | CE ROHS |
| Surface/Backsheet | PET/black backsheet,cover copper ribbon |
| Maximum bend radius(θ) | 10° |
| Cables and Connectors | USB male+0.3m cable+USB female |
| USB | 1pcs,panel max output current 5V 1.4A(USB can load 5v 2.4A),automatically restart |

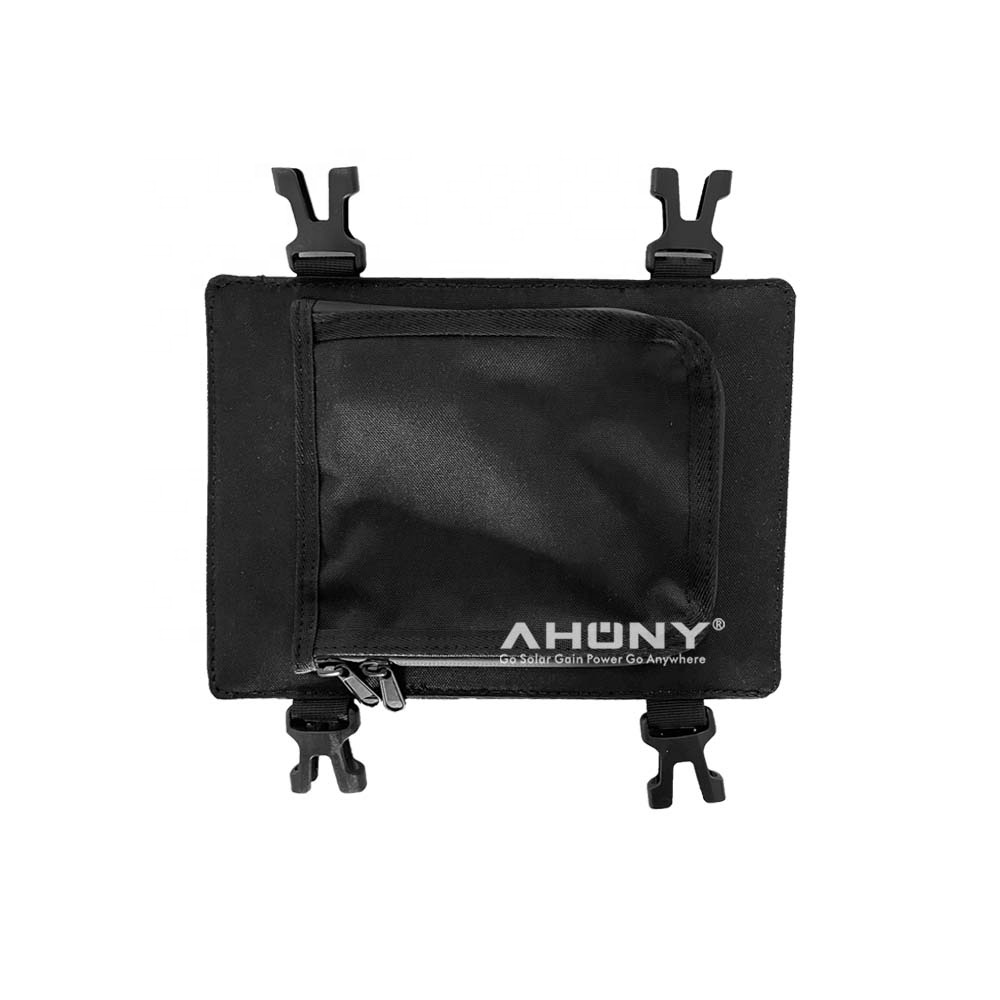

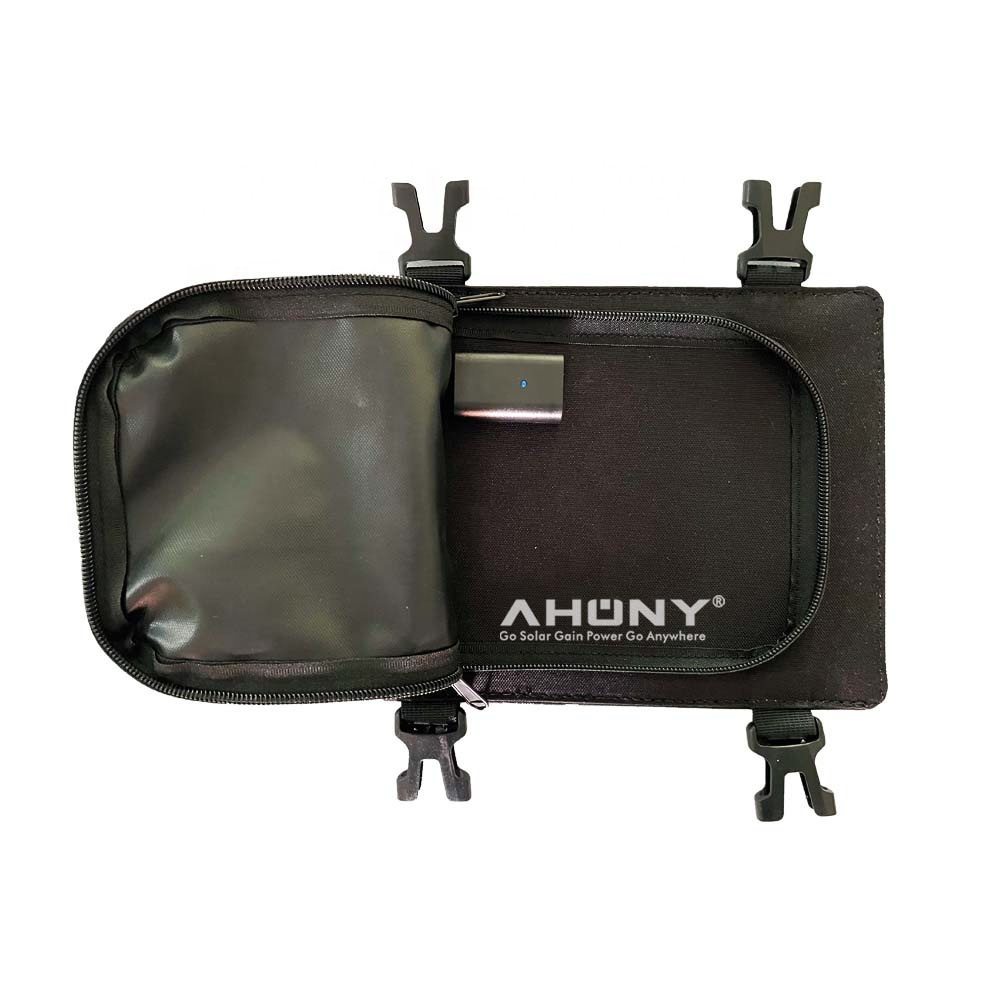

| Cable pocket | yes |
| Sew buckles | Yes,sew 4pcs buckles |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
