eMobi F220W
AHONY or OEM/ODM
548*658*70mm
Hiking Camping Power Station
24.0%
| Folded Size[mm]: | |
|---|---|
| Open Size[mm]: | |
| Model: | eMobi Fab 230w |
| Product Name: | Magnetic Handle Folding Solar Kits |
| Solar Cell: | A grade mono 166 9BB cells |
| Cell Efficiency: | 24.0% |
| Folded Size[mm]: | 548*658*70 |

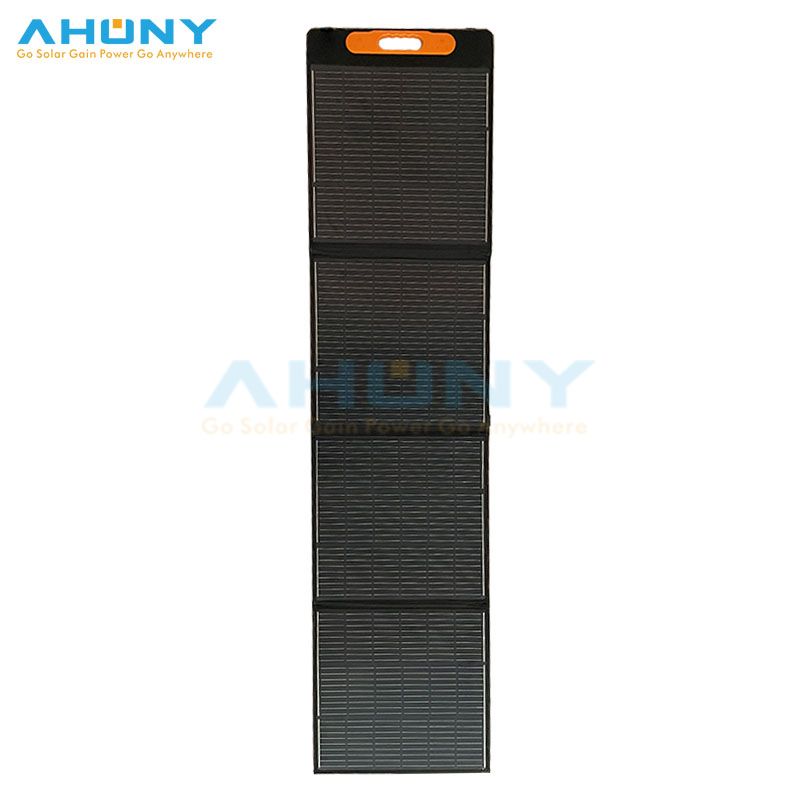

| Open Size[mm]: | 548*2354*12 |
| Max Power Voltage Vmp[V]: | 20.88 |
| Max Power Current Imp[A]: | 11.02 |
| Open Circuit Voltage Voc[V]: | 24.22 |
| Short Circuit Current Isc[A]: | 11.68 |
| Net./Gross Weight[kg]: | 9 / 9.5 |
| NOCT[℃]: | 45±2 |
| Operating Temperature[℃]: | -40/+85 |
| Temperature Coefficient Pmax[%/℃]: | -0.3 |
| Temperature Coefficient Voc[[%/℃]: | -1.74mV |
| Temperature Coefficient Isc[[%/℃]: | 0.05 |
| Maximum System Voltage[V]: | 200V |
| Certification: | CE ROHS |

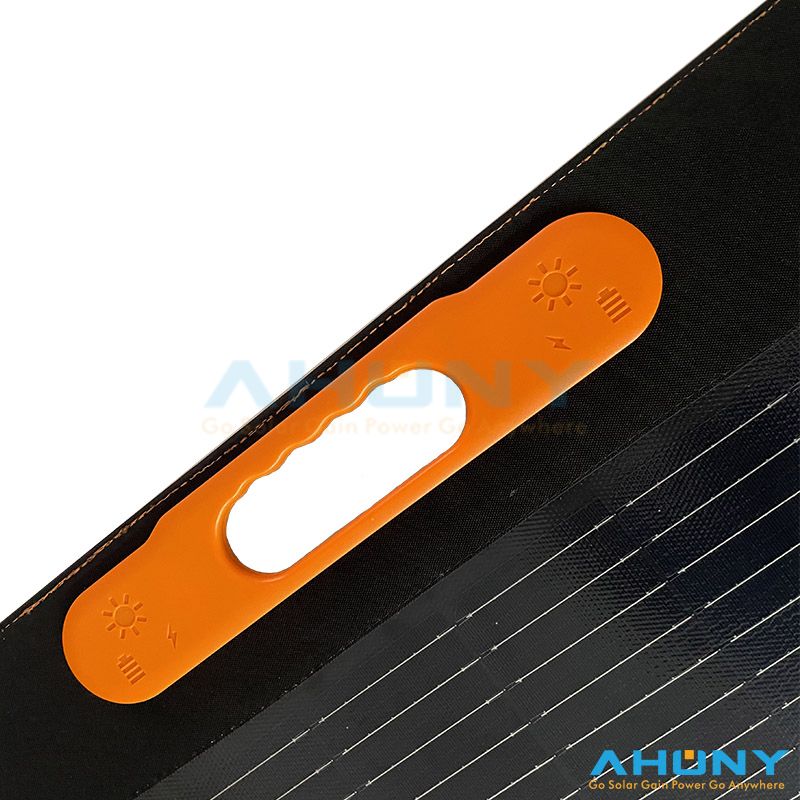

| Handle: | Magnetic |
| Suface/backsheet: | PET+high density textile |
| Output 1-USB: | 5V@3A，9V@2A，12V@1.5A |
| Output 2-Type C: | PD65w |
| Output 3-DC5521: | 19v 6A |
| Supporting Leg: | Yes,3 legs |
| Standard Test Conditions: | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Model: | eMobi Fab 230w |
| Product Name: | Magnetic Handle Folding Solar Kits |
| Solar Cell: | A grade mono 166 9BB cells |
| Cell Efficiency: | 24.0% |
| Folded Size[mm]: | 548*658*70 |
| Open Size[mm]: | 548*2354*12 |
| Max Power Voltage Vmp[V]: | 20.88 |
| Max Power Current Imp[A]: | 11.02 |
| Open Circuit Voltage Voc[V]: | 24.22 |
| Short Circuit Current Isc[A]: | 11.68 |
| Net./Gross Weight[kg]: | 9 / 9.5 |
| NOCT[℃]: | 45±2 |
| Operating Temperature[℃]: | -40/+85 |
| Temperature Coefficient Pmax[%/℃]: | -0.3 |
| Temperature Coefficient Voc[[%/℃]: | -1.74mV |
| Temperature Coefficient Isc[[%/℃]: | 0.05 |
| Maximum System Voltage[V]: | 200V |
| Certification: | CE ROHS |
| Handle: | Magnetic |
| Suface/backsheet: | PET+high density textile |
| Output 1-USB: | 5V@3A，9V@2A，12V@1.5A |
| Output 2-Type C: | PD65w |
| Output 3-DC5521: | 19v 6A |
| Supporting Leg: | Yes,3 legs |
| Standard Test Conditions: | STC: 1000W/m², AM 1.5 and cell temp 25°C |
