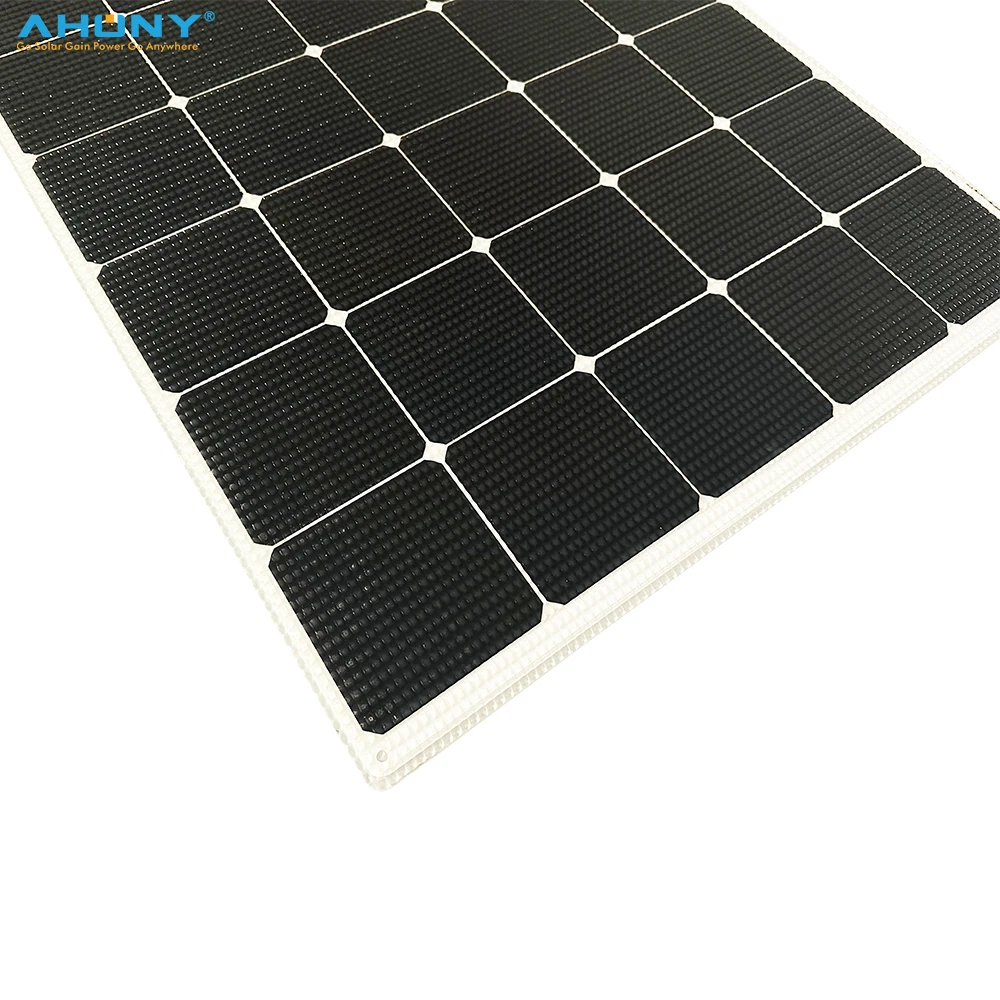

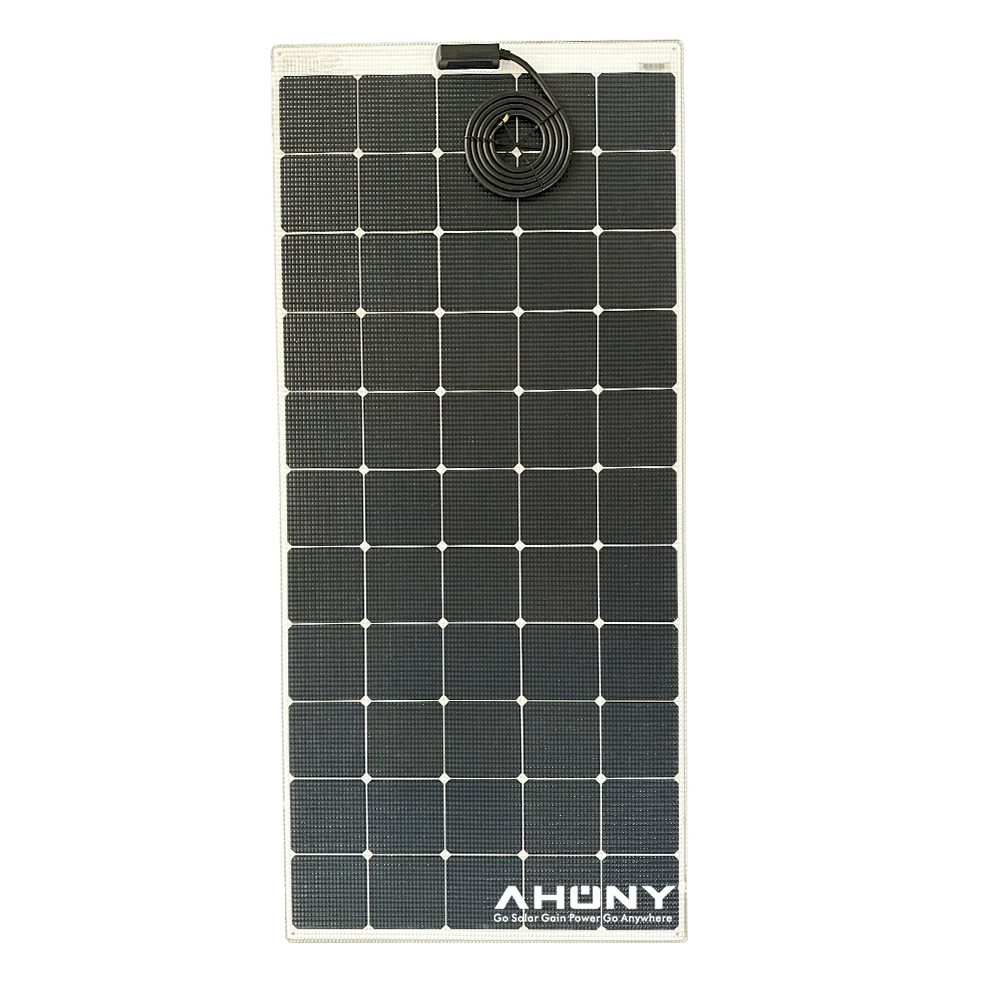

Waterproof Lightweight Flexible Solar Panel Semi PV Panels 200w 300w 400w Solar Panel Flexible For Boat Marina Yacht RV Camp

  • eMarvel 200w-WL

  • AHONY or OEM/ODM

  • 660*1460*4mm

  • Balcony,Garden,RV,Boat,Camper,roof,home solar system

  • 24.40%

Availability:
Inquire


MAIN FEATURES
rigid sunpower solar panel 20w 50w 100w 110w 120w 150w 175w customize all sizes ce rohs emc lvd for solar tree smartflower

High efficiency solar cell :Use leading brand cell and high efficiency A grade quality to insure high and stable output.
Walkable and Anti-slippery: By and means do not damage cells,the rough anti-slippery surface is safer for installation or maintenance.
Longer lifespan 15 years guaranteed: Premium weather or moisture resistance,for harsh environment 15 years life guaranteed,over 25 years lifespan.
High temp resistance and little power loss :The surface material resists high temperature flame retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss.
Rigid,thin,light design for widely use:It's rigid to resist hailstone.semi flexible with bend angle less 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc.It's 1/6 thickness 7/10 the weight of glass solar panel
Product Description




Model No. eMarvel 200w
Product Name Solar Panel 200w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface.
Maximum Power[Wp] 200
Solar Cell Back contact cell
Cell Array[Pcs] 5*11
Cell Efficiency 24.4%
Size[mm] 660*1460*4
Max Power Voltage Vmp[V] 33.66
Max Power Current Imp[A] 5.94
Open Circuit Voltage Voc[V] 39.72
Short Circuit Current Isc[A] 6.42
Net.Weight[kg] 4.95
Power tolerance[%] ±3%
NOCT[℃] 46±2
Operating Temperature[℃] -40/+85
Temperature Coefficient Pmax[%/K] -0.3
Temperature Coefficient Voc[[%/K] -1.74mV
Temperature Coefficient Isc[[%/K] 0.05
Maximum System Voltage[V] 200 V

53

eMarvel 250w advantage.jpg
