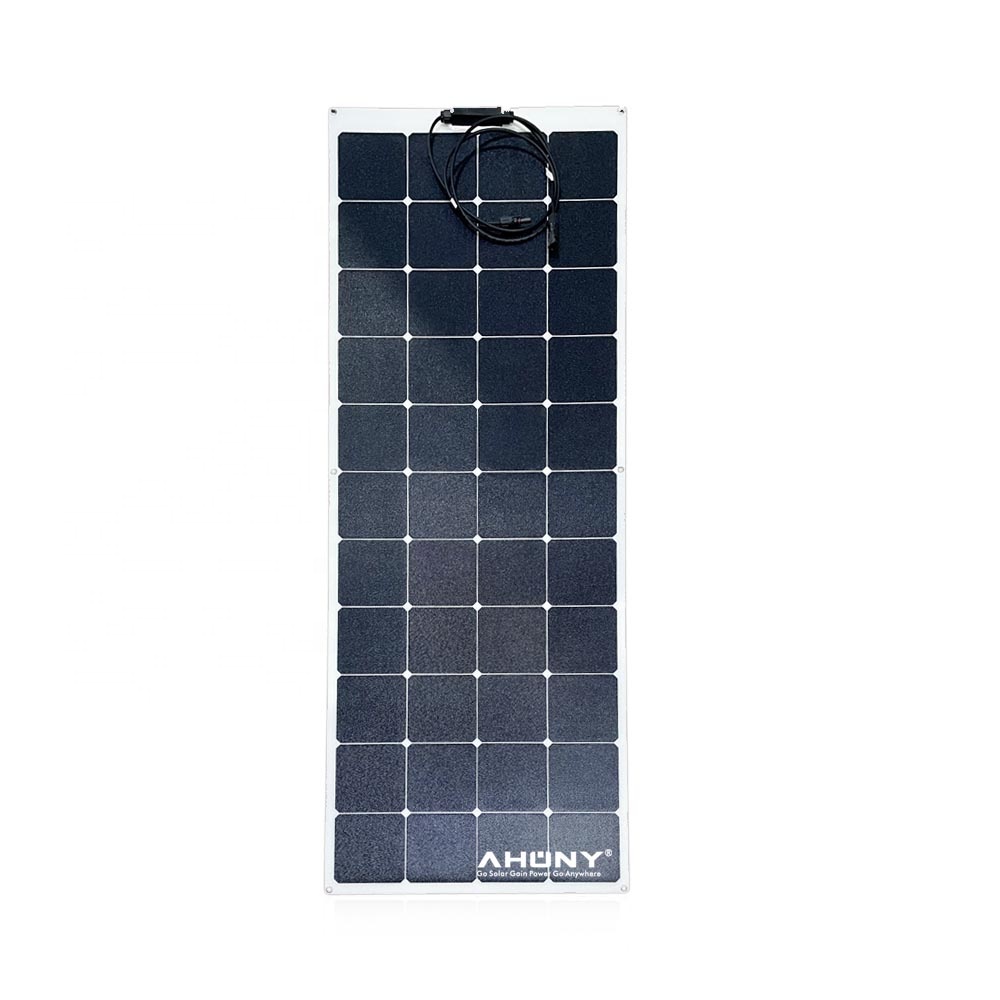

custom panel solar flexible 170w thin light film bendable back contact sunpower cell for camping rv marine outdoor application

Place of Origin:Guangdong, China
Brand Name:AHONY or OEM
Model Number:eGo S170w
Cell size:125mmx125mm
Type:IBC, Standard Solar Panel
Panel Dimensions:540*1460*3mm
Panel Efficiency:24.4%
Certificate:CE ROHS ISO9001, CE,ROHS,S GS,IEC
Warranty:Other, 1 year
Solar cell:back contact
Application:camping yacht boat marine
Product name:slim customize panel solar flexible 150w 12v gunes paneli solar panel
Junction Box:IP65 Waterproof
Voltage:Vmp:18V

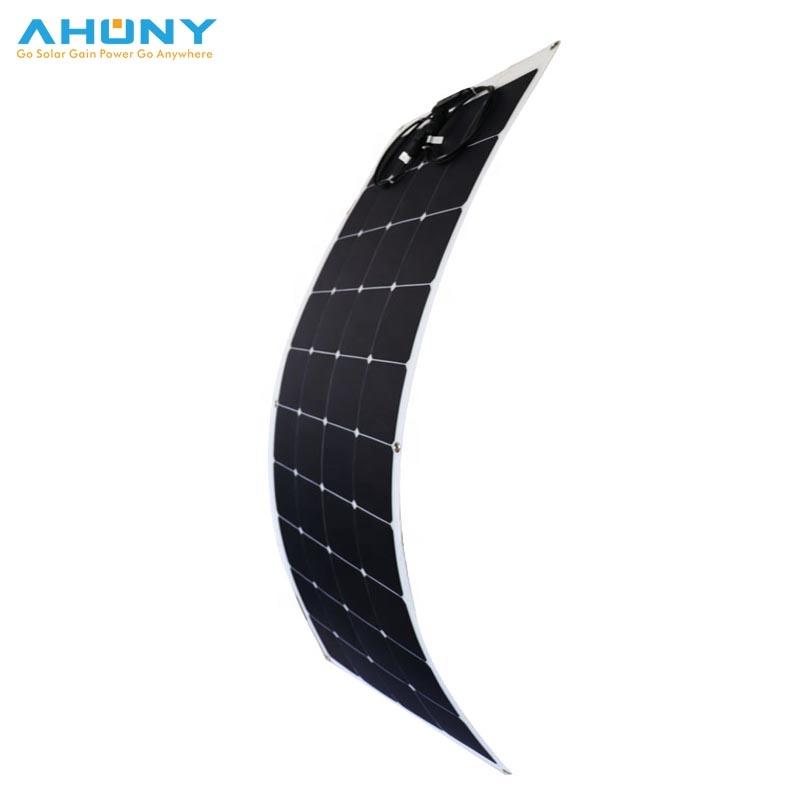

style:flexible type solar panel bend angle 30degree
advatange:big power flexible solar panel

  • eGo S170w

  • AHONY

  • 540x1460x3 mm

  • camping yacht boat marine

  • 24.4%

Availability:
Inquire

Product   Name custom panel solar flexible 170w thin light film bendable back contact sunpower cell for camping rv marine outdoor application
Maximum   Power[Wp] 170
Solar Cell SunPower Maxeon Gen III Back Contact Cell
Cell   Array[Pcs] 4*11
Cell   Efficiency 24.4%
Size[mm] 540x1460x3
Max Power   Voltage Vmp[V] 27.63
Max Power   Current Imp[A] 6.16
Open Circuit   Voltage Voc[V] 31.77
Short Circuit   Current Isc[A] 6.46
Net.Weight[kg] 3.2
NOCT[℃] 45±2
Operating   Temperature[℃] -40/+85
Temperature   Coefficient Pmax[%/℃] -027
Temperature   Coefficient Voc[[%/℃] -0.236
Temperature   Coefficient Isc[[%/℃] 0.058
Maximum System   Voltage[V] 100 V
Maximum   Reverse Current[V] IR<2A-0
Certification CE ROHS

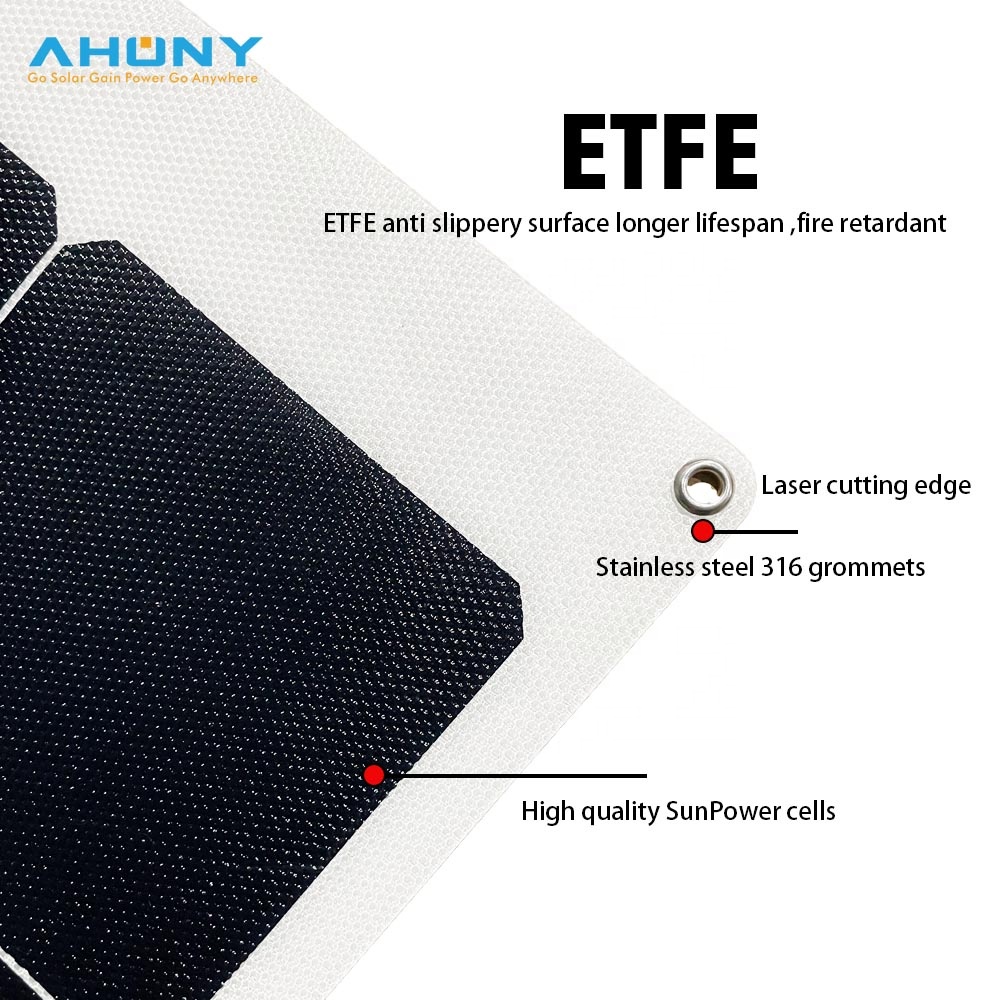

Surface/Backsheet rough shiny ETFE/white or black backsheet

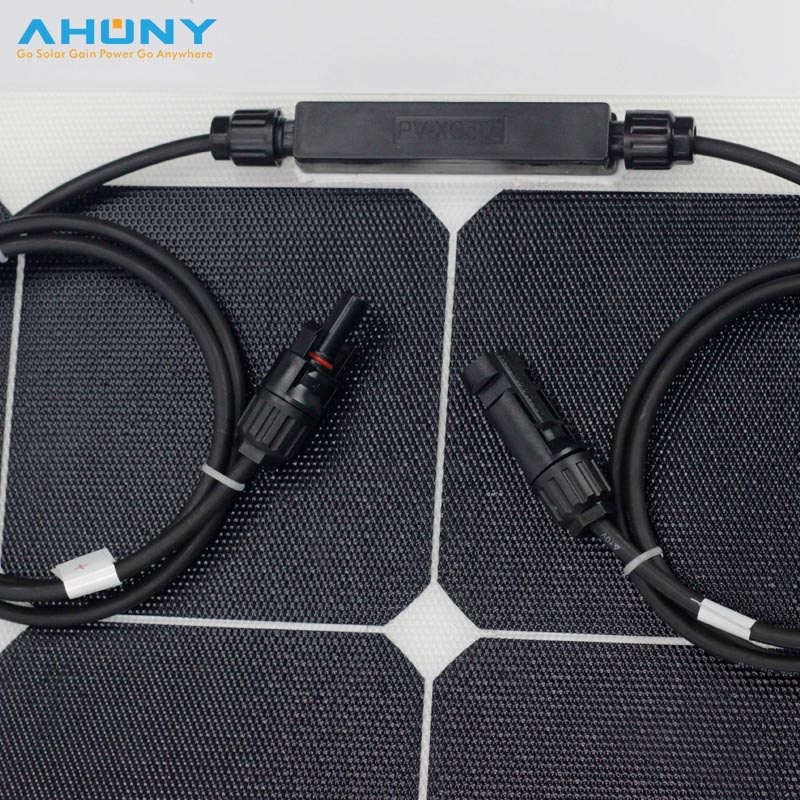

Cables and   Connectors Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test   Conditions STC: 1000W/m², AM   1.5g and cell temp 25°C
