eMobi F22w
AHONY
Folded Size[mm] 200*290*28 Open Size[mm] 598*290*12
Hiking Camping Power Station,phone charger,laptop charger
23.00%
| Model No. | eMobi F22W |
| Product Name | USB Solar Charger-regular |
| Maximum Power[Wp] | 22 |
| Solar Cell | A grade mono perc cell |
| Cell Array[Pcs] | 12*3 |
| Cell Efficiency | 23.00% |
| Folded Size[mm] | 200*290*28 |
| Open Size[mm] | 598*290*12 |
| Max Power Voltage Vmp[V] | 8.10 |
| Max Power Current Imp[A] | 2.72 |
| Open Circuit Voltage Voc[V] | 9.56 |
| Short Circuit Current Isc[A] | 2.93 |
| Net.Weight[kg] | 0.583 |
| Output Voltage[V] | 5/9/12 |

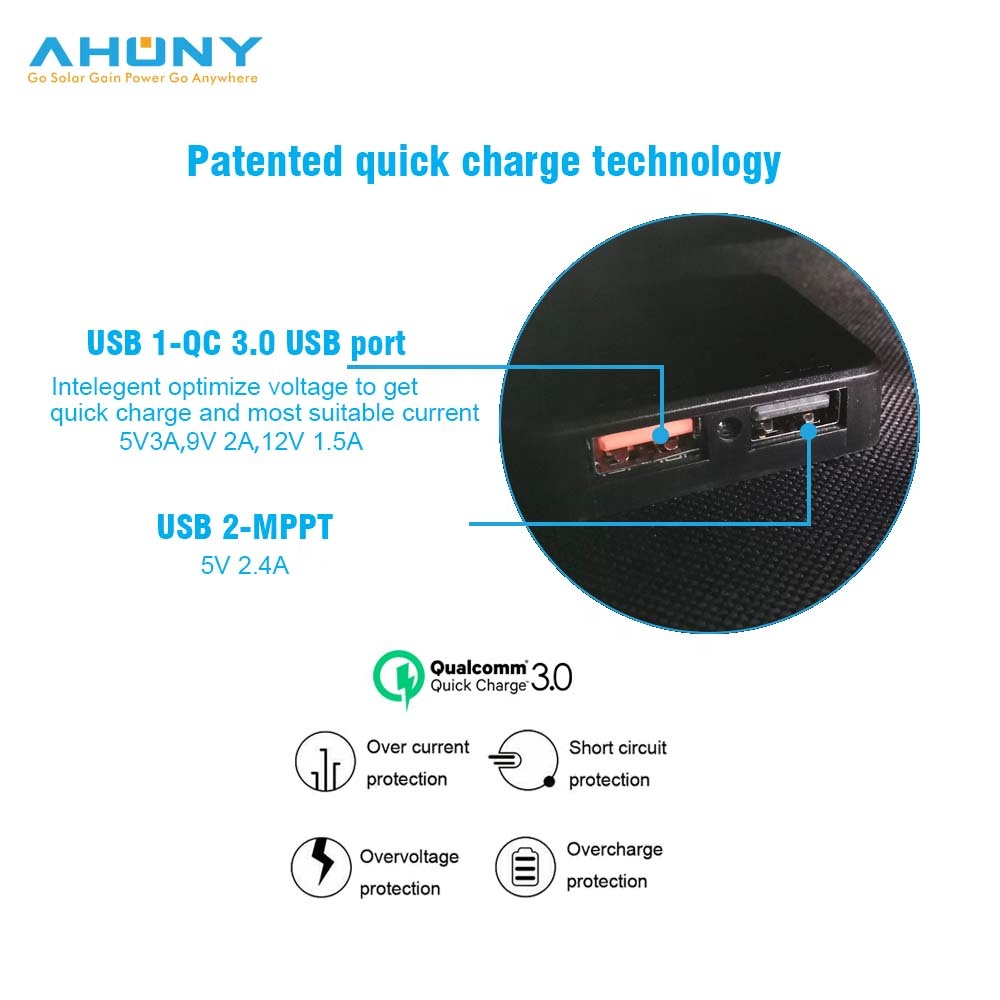

| Port 1-USB | quick charge+MPPT 5V3A,9V2A,12V1.5A |
| Port 2-USB2 | 5V 3A |
| Colour | black+yellow |
| Certification | CE ROHS |
| Surface/Backsheet | PET,PU waterproof |
| Solar panel waterproof | IP65 |
| Jbox Waterproof | IP30 |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Eyelet | silver colour nickel coated copper,4pcs |
| Package | 1pcs/carton box |
