eGo S300M
AHONY or OEM
992*1515*2mm
balcony fence electric car roof,on or off grid solar system
24%
AHONY HCF cell flexible solar panel has HJT cell,multi bus bar technology and copper foundation solar cells.Cell efficiency
up to 24%.HJT is more advanced technology compared to PERC.Better weaklight and high temperature performance.
-Mlti busbar cell technology reduced power loss by cell crack
-Less cell distance shorten the current transit distance and reduced 15%
inner resistance.
-Other cell crushed when bend,no power!
HCF cell still have copper ribbon to connect,little power loss!
HCF is more suitable for semi flexible.
24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.
Bificial cell increase 10%-20% power using transparent
backsheet.
MBB technology less power loss
9BB multi busbar technology on both sides,
distance between 2 bus bar less,less resistance and
more current even through cell crack.
Copper foundation flexible cells
The solar cell have copper foundation like SunPower.
The cell is bendable and copper ribbon on back still
gathering current when cell crack.
3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
| Model No. | eGo S300M |
| Product Name | Semi flexible solar panel |
| Maximum Power[Wp] | 300 |
| Solar Cell | HJT 9BB 158mm solar cell |
| Cell Array[Pcs] | 6*9 |
| Cell Efficiency | 22.70% |
| Size[mm] | 992*1515*2 |
| Max Power Voltage Vmp[V] | 33.40 |
| Max Power Current Imp[A] | 8.99 |
| Open Circuit Voltage Voc[V] | 38.74 |
| Short Circuit Current Isc[A] | 9.50 |
| Net.Weight[kg] | 4.60 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.252 |
| Temperature Coefficient Voc[[%/℃] | -0.227 |
| Temperature Coefficient Isc[[%/℃] | 0.031 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[A] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE+AP2+TPT |
| Maximum bend radius(θ) | 60° |
| Cables and Connectors | JB022 Jbox on front,3bypas diodes,0.3m cable and 1 pair of MC4 connector |
Application
balcony solar,fence when the light may be with non 90degree angle and become weak;
camp rv roof,especially electrical car roof
on or off grid solar system

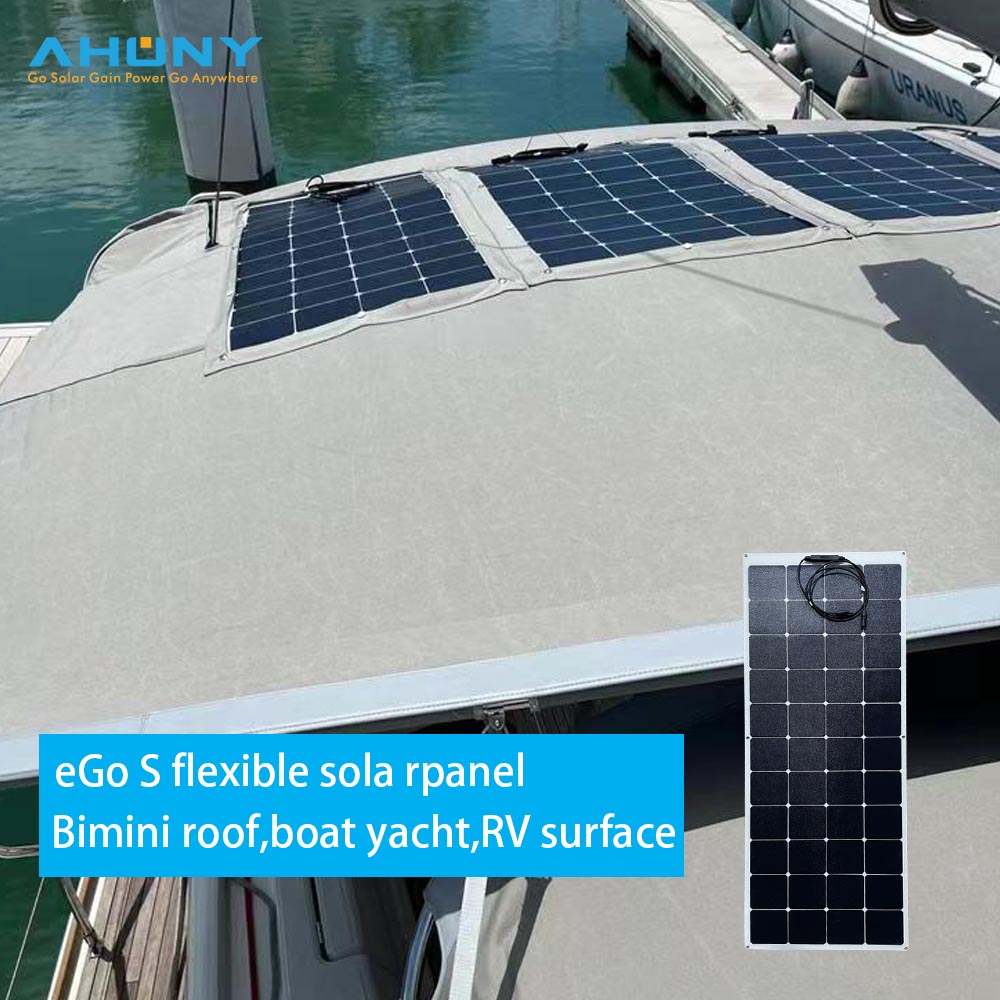

bimini,boat roof.
