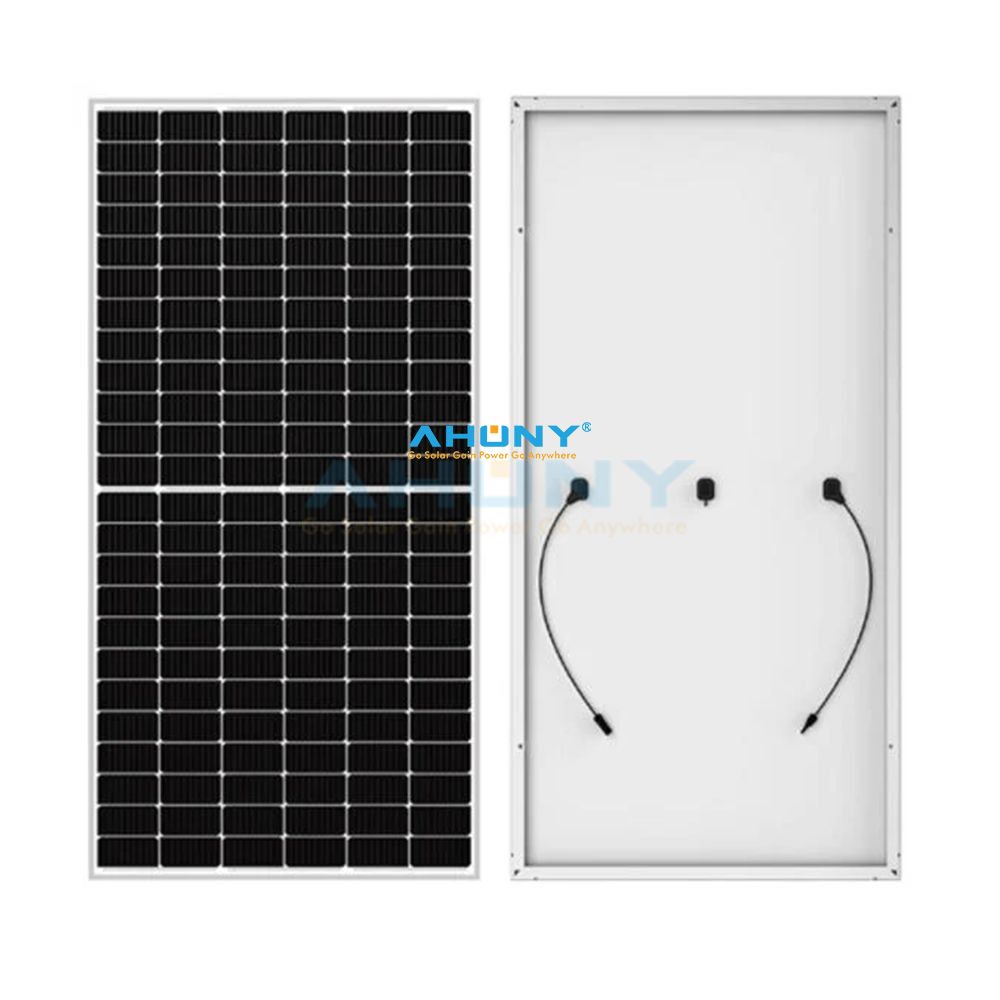

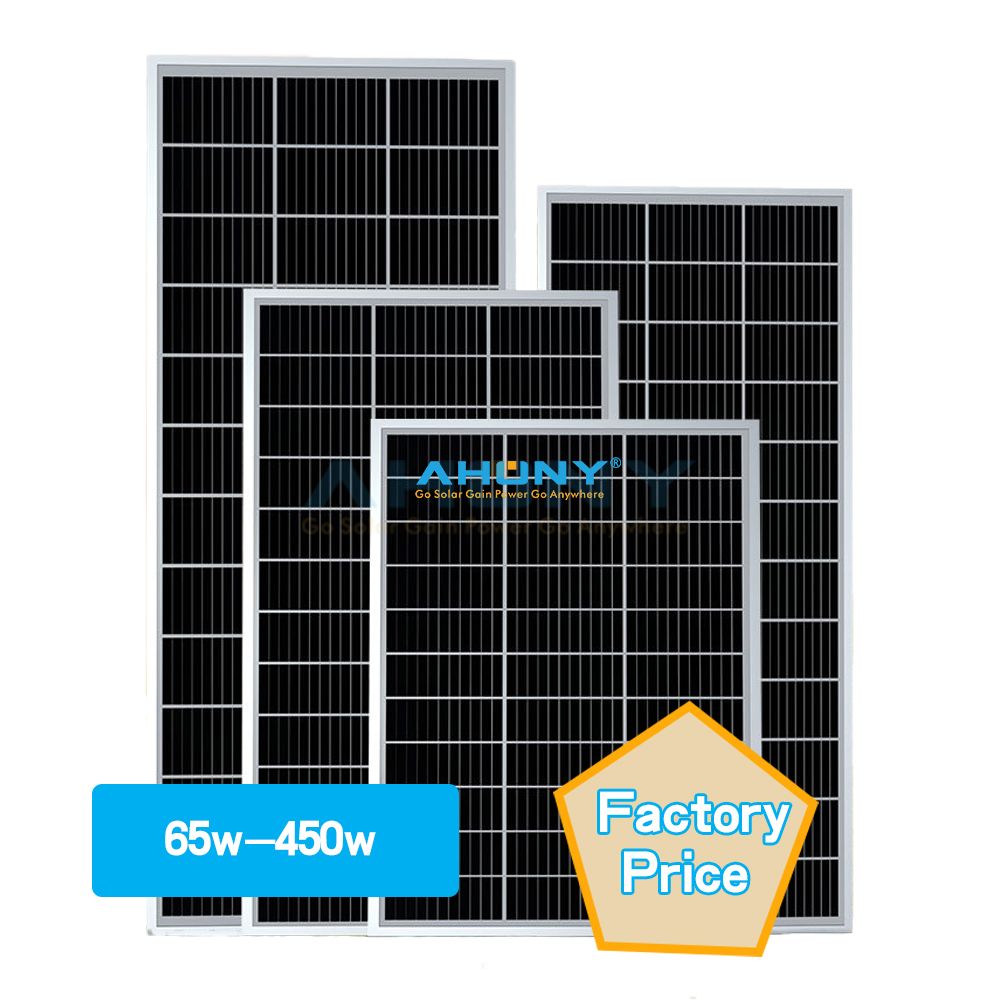

eRigid 65w-450w
AHONY or OEM/ODM
1135*1930*40mm
Balcony,Garden,RV,Boat,Camper,roof,home solar system
22.70%
| Model No. | eRigid M65W | eRigid M90W | eRigid M100W | eRigid M120W | eRigid M135W | eRigid M150W |
| Maximum Power[WP] | 65 | 90 | 100 | 120 | 135 | 150 |
| Solar Cell | 182 PERC SOLAR CELL | |||||
| Cell Array[pcs] | 3*12 | 3*12 | 3*14 | 3*11 | 3*12 | 4*10 |
| Solar Cell Size[mm] | 182*45.5 | 182*60.67 | 182*60.67 | 182*91 | 182*91 | 182*91 |
| Cell Efficiency | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% |
| Size[mm] | 590*610*25 | 590*800*30 | 590*925*30 | 590*1070*35 | 590*1165*35 | 590*980*35 |
| Max Power Voltage Vmp[V] | 20.88 | 20.88 | 24.36 | 19.14 | 20.88 | 23.20 |
| Max Power Current Imp[A] | 3.12 | 4.32 | 4.11 | 6.27 | 6.47 | 6.47 |
| Open Circuit Voltage Voc[V] | 24.22 | 24.22 | 28.26 | 22.20 | 24.22 | 26.91 |
| Short Circuit Current Isc[A] | 3.31 | 4.58 | 4.36 | 6.65 | 6.85 | 6.85 |
| Net.Weight[kg] | 4.9 | 5.90 | 6.70 | 6.90 | 7.70 | 8.20 |
| Power tolerance[%] | ±3% | |||||
| Operating Temperature[℃] | -40/85 | |||||
| Temperature Coefficient Pmax[%/K] | -0.41 | |||||
| Temperature Coefficient Voc[[%/K] | -0.32 | |||||
| Temperature Coefficient Isc[[%/K] | 0.04 | |||||
| Maximum System Voltage[V] | 1000V | |||||

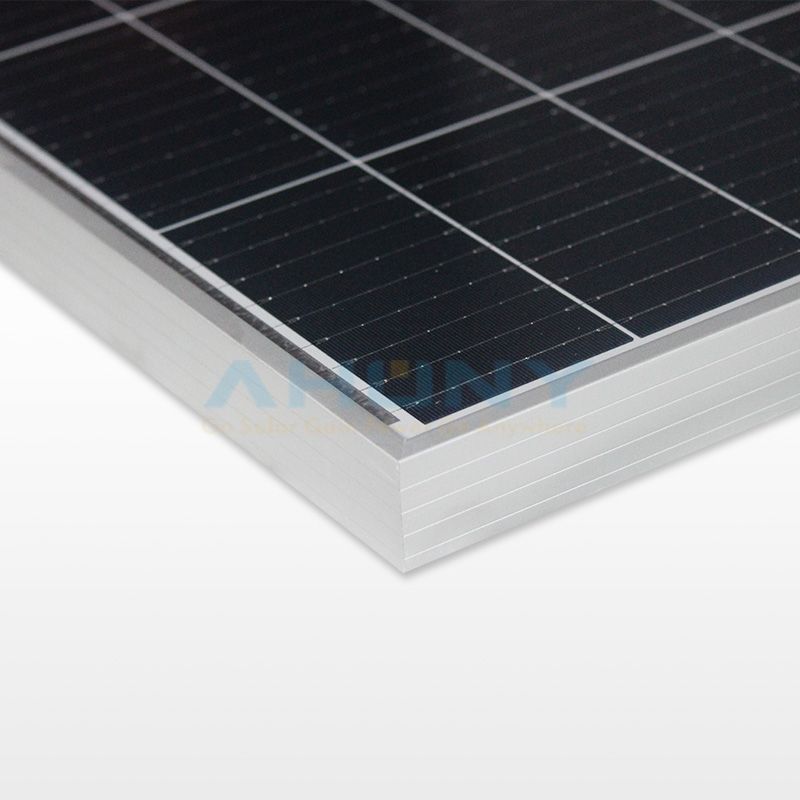

| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | |||||
| Certification | CE ROHS | |||||
| Model No. | eRigid M180W | eRigid M220W | eRigid M270W | eeRigid M360W | eRigid M450W |
| Maximum Power[WP] | 180 | 220 | 270 | 360 | 450 |
| Solar Cell | 182 PERC Solar Cell | ||||
| Cell Array[pcs] | 4*18 | 4*15 | 4*18 | 6*24 | 6*20 |
| Solar Cell Size[mm] | 182*60.67 | 182*91 | 182*91 | 182*60.67 | 182*91 |
| Cell Efficiency | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% |
| Size[mm] | 770*1180*35 | 770*1445*35 | 770*1740*35 | 770*1570*40 | 770*1930*40 |
| Max Power Voltage Vmp[V] | 20.88 | 34.80 | 41.76 | 41.76 | 34.80 |
| Max Power Current Imp[A] | 8.63 | 6.33 | 6.47 | 8.63 | 12.94 |
| Open Circuit Voltage Voc[V] | 24.22 | 40.37 | 48.44 | 48.44 | 40.37 |
| Short Circuit Current Isc[A] | 9.15 | 6.71 | 6.85 | 9.15 | 13.72 |
| Net.Weight[kg] | 10.20 | 11.30 | 12.30 | 16.00 | 18.60 |
| Power tolerance[%] | ±3% | ||||
| Operating Temperature[℃] | -40/+85 | ||||
| Temperature Coefficient Pmax[%/K] | -0.41 | ||||
| Temperature Coefficient Voc[[%/K] | -0.32 | ||||
| Temperature Coefficient Isc[[%/K] | 0.04 | ||||
| Maximum System Voltage[V] | 1000 V | ||||
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | ||||
| Certification | CE ROHS | ||||
